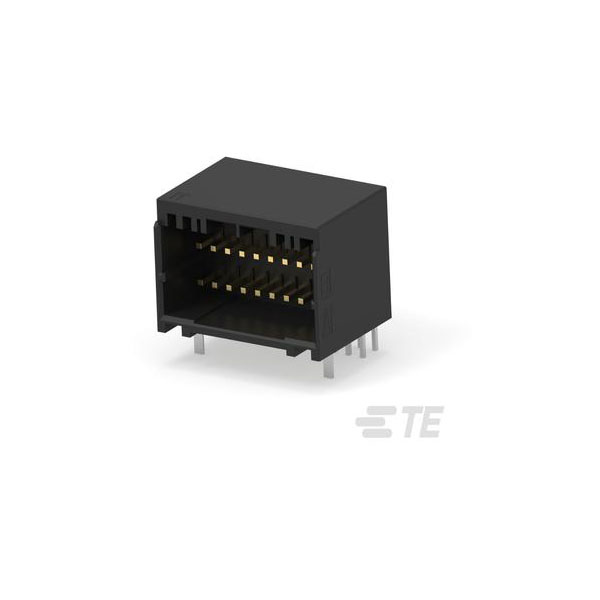

TE Connectivity's 1-1827873-0 is a dynamic HDR assembly with a female shrouded design and 20 positions.
It features a black housing and reliable gold-plated contacts, ensuring durability and excellent conductivity.
The connector is typically used in electrical and electronic assemblies requiring robust performance.
Ideal applications include industrial machinery and automotive systems.
| Type |
Wire to Board Housing |
| Number of Positions |
20 |
| Pitch |
0.079inch |
| Number of Rows |
2 |
| Approvals |
UL |
| Centerline (Pitch) |
2.0066mm |
| Circuit Application |
Power & Signal |
| Color |
Black |
| Connector & Contact Terminates To |
Printed Circuit Board |
| Connector Mounting Type |
Board Mount |
| Connector Product Type |
Connector Assembly |
| Connector System |
Wire-to-Board |
| Contact Base Material |
Copper Alloy |
| Contact Current Rating |
3a |
| Contact Current Rating (Max) |
3 |
| Contact Gender |
Male |
| Contact Material |
Copper Alloy |
| Contact Mating Area Plating Material |
Gold (Au) |
| Contact Mating Area Plating Material Thickness |
15 |
| Contact Plating |
Gold |
| Contact Post Length |
3.1mm |
| Contact Retention |
No (Without) |
| Contact Type |
Pin |
| Contact Underplating Material |
Nickel |
| Contact Underplating Material Thickness |
50 |
| Current Rating |
3a |
| Depth |
15mm |
| ELV |
Compliant |
| Flammability Rating |
UL94 V-0 |
| Gender |
Male |
| Halogen free |
Halogen Free |
| Header Type |
Fully Shrouded |
| Height |
11.8mm |
| Housing Color |
Black |
| Housing Material |
Polyester GF |
| Lead Length |
3.1mm |
| Length |
22.6mm |
| Mating Alignment |
With |
| Mating Alignment Type |
Keyed |
| Mating Retention |
With |
| Max Operating Temperature |
221°C |
| Max Voltage Rating (AC) |
125v |
| Min Operating Temperature |
-67°C |
| Mount |
Through Hole |
| Number of Contacts |
20 |
| Operating Supply Voltage |
125v |
| Operating Temperature (Max) |
221 |
| Operating Temperature Range |
-67 – 221 |
| Orientation |
Right Angle |
| Package Quantity |
20 |
| Packaging |
Rail/Tube |
| Packaging Method |
Tube |
| Packaging Quantity |
20 |
| PCB Connector Type |
PCB Mount Header |
| PCB Contact Termination Area Plating Material |
Tin |
| PCB Contact Termination Area Plating Material Thickness |
78.74 |
| PCB Mount Alignment |
Without |
| PCB Mount Orientation |
Horizontal |
| PCB Mount Retention |
With |
| PCB Mount Retention Type |
Retention Leg |
| PCB Mounting Orientation |
Right Angle |
| PCB Thickness |
0.063inch |
| Preloaded |
Yes |
| Primary Product colour |
Black |
| Radiation Hardening |
No |
| Reach SVHC Compliant |
No |
| RoHS Compliant |
Yes |
| Row Spacing |
0.1299inch |
| Sealable |
No |
| Selectively Loaded |
No (Without) |
| Series |
Dynamic D-1100, AMP |
| Shielding |
Unshielded |
| Shrouded |
Yes (With) |
| Strain Relief |
No (Without) |
| Tail Length |
3.1mm |
| Termination |
Solder |
| Termination Method to PCB |
Through Hole - Solder |
| UL Flammability Rating |
UL 94V-0 |
| VDE Tested |
No |
| Voltage Rating |
125v |
| Voltage Rating (AC) |
125v |
| Width |
15mm |
