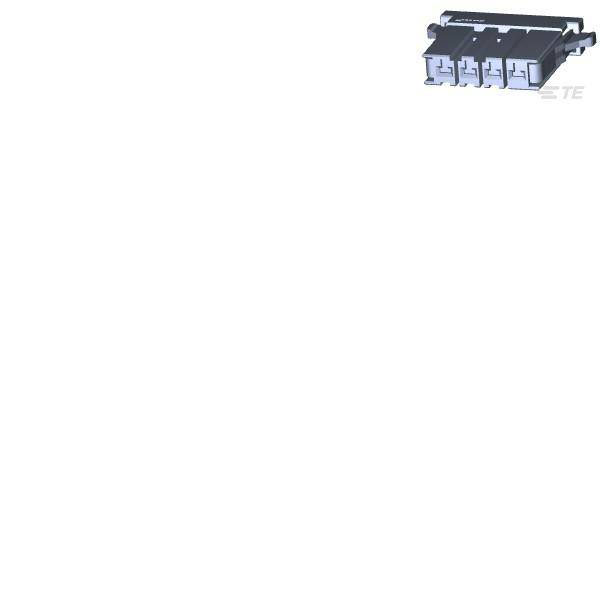

The TE Connectivity 1-178128-4 is a female unshrouded housing connector with four positions, offering secure and reliable connections.
Its robust design ensures durability in various conditions.
This component is typically used in electrical assemblies and equipment where compact and simple connectivity is required.
It is ideal for automotive and industrial applications.
| Type |
Rectangular Wire & Cable Connectors & Housings |
| Number of Contacts |
4 |
| Gender |
Female |
| Number of Rows |
1 |
| Approvals |
UL |
| Body Material |
Glass, PET, Polyester |
| Centerline (Pitch) |
5.08mm |
| Circuit Application |
Power & Signal |
| Colour |
Black |
| Connector & Contact Terminates To |
Wire & Cable |
| Connector & Housing Type |
Receptacle |
| Connector Height |
.28 |
| Connector Length |
1.36 |
| Connector Mounting Type |
Cable Mount (Free-Hanging) |
| Connector Product Type |
Housing |
| Connector System |
Wire-to-Board |
| Connector Width |
.89 |
| Contact Base Material |
Copper Alloy |
| Contact Type |
Receptacle |
| Depth |
22.8mm |
| ELV |
Compliant |
| Flammability Rating |
UL94 V-0 |
| Halogen free |
Halogen Free |
| Height |
0.897inch |
| Housing Color |
Black |
| Housing Material |
Polyester GF |
| Lead Free |
Lead Free |
| Length |
34.78mm |
| Mating Retention |
With |
| Max Operating Temperature |
221°C |
| Max Voltage Rating (AC) |
600v |
| Min Operating Temperature |
-67°C |
| Misc Attribute |
TE AMP Dynamic Series |
| Mount |
Free Hanging, Cable |
| Operating Temperature Range |
-67 – 221 |
| Orientation |
Straight |
| Package Quantity |
250 |
| Packaging |
Bag |
| Packaging Method |
Bag |
| Packaging Quantity |
2000 |
| Packaging Type |
Bag |
| Pitch |
5.08 |
| Preloaded |
No |
| Reach SVHC Compliant |
No |
| RoHS Compliant |
Yes |
| Sealable |
No |
| Selectively Loaded |
No (Without) |
| Series |
Dynamic D-3200 |
| Termination |
Crimp |
| Termination Method to Wire & Cable |
Crimp |
| UL Flammability Rating |
UL 94V-0 |
| VDE Tested |
No |
| Voltage Rating |
600v |
| Width |
7.15mm |
| Wire Gauge (AWG) |
16AWG |
