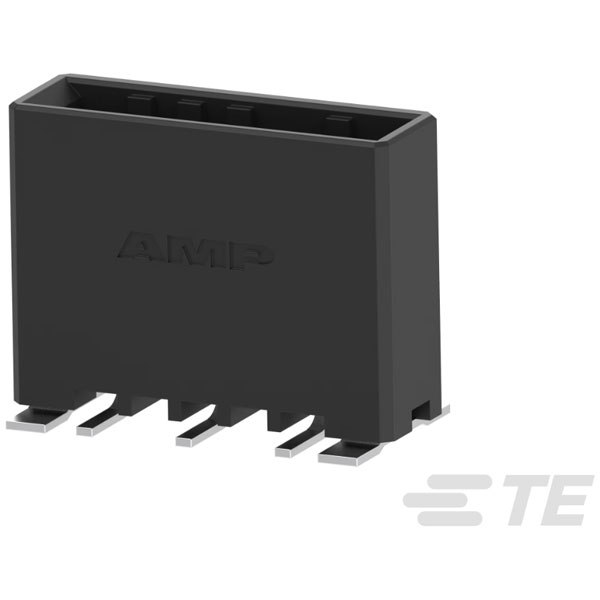

TE Connectivity 1-177665-2 is a male shrouded connector with five positions.
It features vertical orientation and 15 AU SMT contact finish for reliable conductivity.
Designed for secure and precise connections, it is typically used in communication equipment and consumer electronics.
Its compact design ensures suitability for space-constrained applications.
| Type |
Wire to Wire Housing |
| Number of Positions |
5 |
| Pitch |
0.149inch |
| Number of Rows |
1 |
| Approvals |
UL |
| Centerline (Pitch) |
3.81mm |
| Circuit Application |
Power & Signal |
| Color |
Black |
| Connector & Contact Terminates To |
Printed Circuit Board |
| Connector Mounting Type |
Board Mount |
| Connector Product Type |
Connector Assembly |
| Connector System |
Wire-to-Board |
| Contact Current Rating |
15a |
| Contact Current Rating (Max) |
15 |
| Contact Gender |
Male |
| Contact Material |
Copper Alloy |
| Contact Mating Area Plating Material |
Gold (Au) |
| Contact Mating Area Plating Material Thickness |
15 |
| Contact Plating |
Gold |
| Contact Retention |
No (Without) |
| Contact Style |
Straight |
| Contact Type |
Pin |
| Depth |
9.35mm |
| ELV |
Compliant |
| Flammability Rating |
UL94 V-0 |
| Gender |
Male |
| Halogen free |
Halogen Free |
| Header Type |
Fully Shrouded |
| Height |
22.6mm |
| Housing Color |
Black |
| Housing Material |
Polyphenylene Sulfide (PPS) |
| Lead Free |
Lead Free |
| Length |
1.15inch |
| Mating Alignment |
With |
| Mating Alignment Type |
Polarization |
| Mating Retention |
With |
| Max Operating Temperature |
221°C |
| Max Voltage Rating (AC) |
250v |
| Min Operating Temperature |
-67°C |
| Mount |
Surface Mount |
| Number of Contacts |
5 |
| Number of Ports |
1 |
| Operating Temperature Range |
-67 – 221 |
| Orientation |
Straight |
| Package Quantity |
17 |
| Packaging |
Rail/Tube |
| Packaging Method |
Tube |
| PCB Connector Type |
PCB Mount Header |
| PCB Mount Alignment |
Without |
| PCB Mount Orientation |
Vertical |
| PCB Mount Retention |
With |
| PCB Mount Retention Type |
Solder Peg |
| PCB Mounting Orientation |
Vertical |
| Preloaded |
Yes |
| Primary Product colour |
Black |
| Radiation Hardening |
No |
| RoHS Compliant |
Yes |
| Sealable |
No |
| Selectively Loaded |
No (Without) |
| Series |
Dynamic 3100 |
| Shielding |
Unshielded |
| Shrouded |
Yes (With) |
| Strain Relief |
No (Without) |
| Termination |
SMD/SMT |
| Termination Method to PCB |
Surface Mount |
| UL Flammability Rating |
UL 94V-0 |
| VDE Tested |
No |
| Width |
0.368inch |
