TE Connectivity 1-1734839-0 FPC Connector Female Unshrouded 0.5mm Pitch 10P

MPN: 1-1734839-0
Brand: TE Connectivity
Order Code: 14-2878
Country of Origin: China

RoHS Compliant

Inc VAT

Qty	Unit Price (Ex VAT)
2000+	£0.506

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 2000

Available to back orderBack-order availability date - 08/06/2026

Product Details
Quick Quote

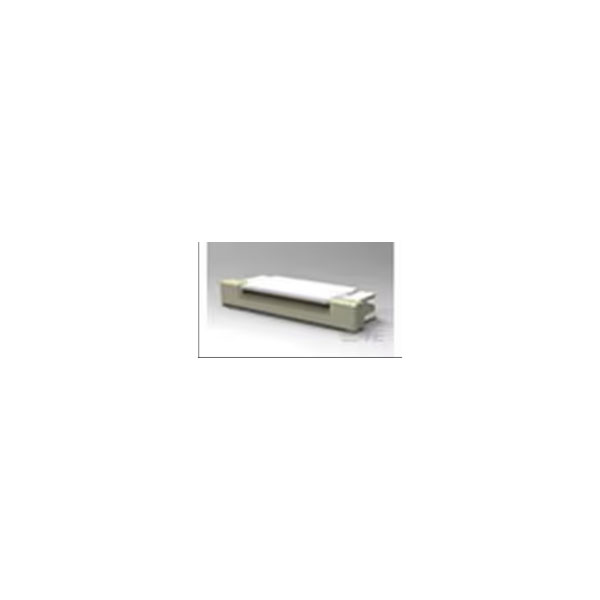

TE Connectivity 1-1734839-0 is a female FPC connector with a 0.5mm pitch and 10 positions.

Its unshrouded design is ideal for space-restricted applications.

This connector is typically used in consumer electronics for flexible printed cable connections.

It provides reliable connections in compact devices due to its precision engineering and quality materials.

Type	FPC Connector
Actuator Colour	Beige
Actuator Material	Thermoplastic
Body Plating	Gold
Colour	Beige
Connector System	Flex-to-Board
Contact Current Rating	500mA
Contact Location	Top
Contact Material	Bronze
Contact Plating	Gold
Depth	5.1mm
Dielectric Material	Thermoplastic
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Receptacle
Height	2.05mm
Housing Colour	Natural
Lead Pitch	0.5mm
Length	10.43mm
Material	Thermoplastic
Mating Alignment	Yes (With)
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Mount	Surface Mount
Number of Contacts	10
Number of Positions	10
Number of Rows	1
Orientation	Right Angle
Package Quantity	2000
Packaging	Tape and Reel
PCB Mount Alignment	No (Without)
PCB Mount Retention	With
PCB Mounting Orientation	Right Angle
Pin Diameter	0.2mm
Pitch	0.5mm
Reach SVHC Compliant	No
RoHS Compliant	Yes
Sealable	No (Without)
Shielding	Unshielded
Shrouded	Yes (With)
Termination	SMD/SMT
Voltage Rating	250v
Width	5.1mm
Wire/Cable Type	Flat Flex
