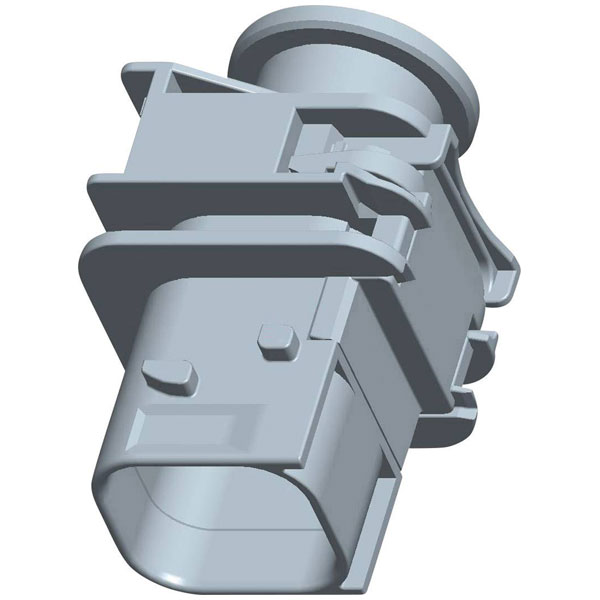

The TE Connectivity 1-1703773-1 is an automotive connector with a female unshrouded design featuring six positions.
It provides reliable electrical connections in automotive applications.
The connector is known for its durability and adaptability in harsh environments.
Typically, it is used in vehicle wiring systems and electronic modules.
| Pitch |
0.157inch |
| No. of Rows |
2 |
| No. of Ways |
6 |
| AWG (min.) |
16 |
| AWG max. |
16 |
| Body Material |
PBT |
| Case Material |
Thermoplastic material |
| Circuit Application |
Signal |
| Code |
A |
| Color |
Black |
| Connection |
Type C CEE 7/16 plug 1.6 mm |
| Connector System |
automotive |
| Connector Type |
Plug, straight |
| Contact Type |
Tab |
| Dim |
(L x W x H) 27 x 47.1 x 29.1 mm |
| ELV |
Compliant |
| Factory colour |
Black |
| Flammability Rating |
UL94 V-0 |
| Height |
29.1mm |
| Housing Color |
Black |
| Hybrid Connector |
No |
| Industrial packaging |
No |
| Insulation Material |
Thermoplastic material |
| IP Rating |
IP67/IP69K |
| Lead Free |
Lead Free |
| Length |
27mm |
| Mating Tab Width |
0.063inch |
| Max Operating Temperature |
140°C |
| max. cross section |
1.50mm² |
| Max. temperature |
+140°C |
| Min Operating Temperature |
-40°C |
| Min. cross section |
1.50mm² |
| Min. temperature |
-40°C |
| Misc Attribute |
HDSCS, MCP |
| Mount |
Panel, Cable |
| Nominal Voltage |
42V DC |
| Number of Contacts |
6 |
| Number of Positions |
6 |
| Number of Rows |
2 |
| Orientation |
Straight |
| Package Quantity |
380 |
| Packaging |
Box |
| Pin shape |
Rectangular |
| Pins per row |
3 |
| Polarized |
Yes |
| Ratings |
IP67 |
| Reach SVHC Compliant |
Unknown |
| RoHS Compliant |
Yes |
| Row Spacing |
6.5mm |
| Sealable |
Yes (With) |
| Series |
HDSCS, MCP |
| Serviceable |
Yes |
| Strain Relief |
Add By Accessory |
| Termination |
Crimp |
| Type |
Socket housing PCB |
| Width |
47.1mm |
