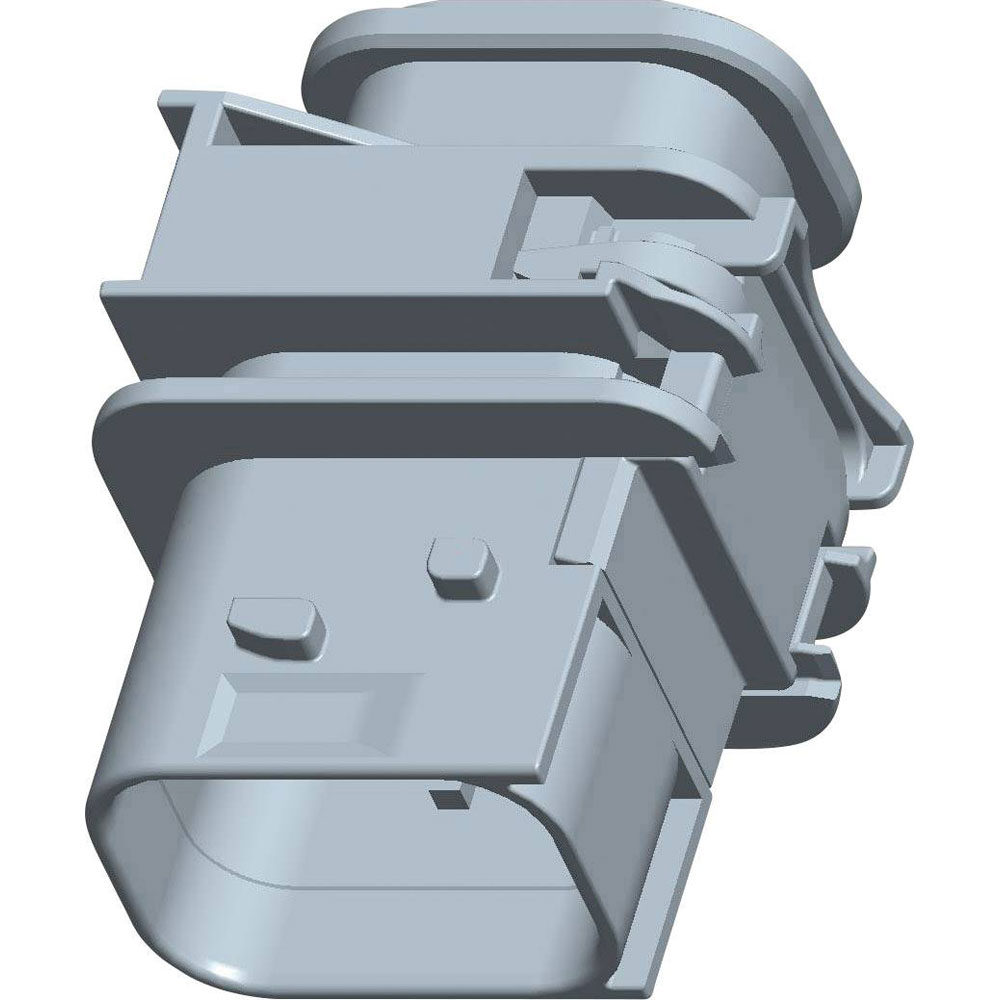

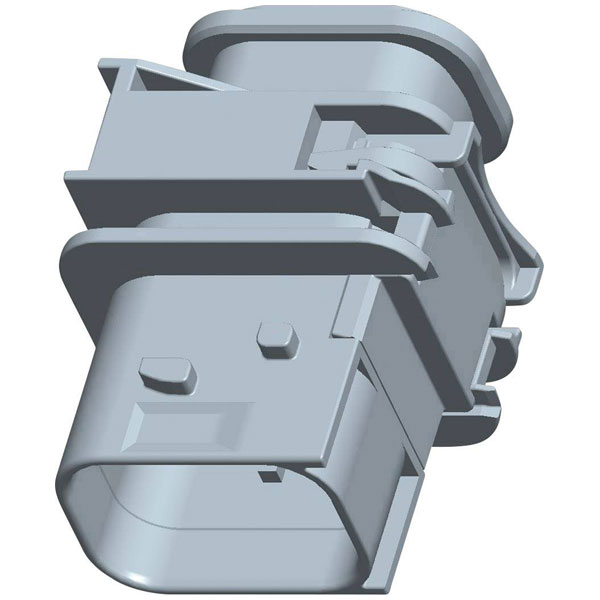

The TE Connectivity 1-1703648-1 is an automotive connector with seven unshrouded male positions.
It is designed to provide reliable electrical connections in vehicle systems.
Its robust construction suits harsh automotive environments.
This connector is typically used in automotive wiring harnesses and control units.
| Pitch |
0.157inch |
| No. of Rows |
2 |
| No. of Ways |
6 |
| AWG (min.) |
16 |
| AWG max. |
12 |
| Body Material |
PBT |
| Case Material |
Thermoplastic material |
| Circuit Application |
Signal |
| Code |
A |
| Color |
Black |
| Connector System |
automotive |
| Connector Type |
Plug, straight |
| Contact Type |
Tab |
| Dim |
(L x W x H) 27 x 48.1 x 32.6 mm |
| ELV |
Compliant |
| Factory colour |
Black |
| Flammability Rating |
UL94 V-0 |
| Gender |
Male |
| Height |
32.6mm |
| Housing Color |
Black |
| Hybrid Connector |
Yes |
| Industrial packaging |
No |
| Insulation Material |
Thermoplastic material |
| IP Rating |
IP67/IP69K |
| Lead Free |
Lead Free |
| Length |
27mm |
| Mating Tab Width |
0.063inch |
| Max Operating Temperature |
140°C |
| max. cross section |
2.50mm² |
| Max. temperature |
+140°C |
| Min Operating Temperature |
-40°C |
| Min. cross section |
1.50mm² |
| Min. temperature |
-40°C |
| Misc Attribute |
HDSCS, MCP |
| Mount |
Panel, Cable |
| Nominal Voltage |
42V DC |
| Number of Contacts |
7 |
| Number of Positions |
7 |
| Number of Rows |
2 |
| Orientation |
Straight |
| Package Quantity |
320 |
| Packaging |
Carton |
| Pin shape |
Rectangular |
| Pins per row |
3 |
| Polarized |
Yes |
| Ratings |
IP67 |
| Reach SVHC Compliant |
Unknown |
| RoHS Compliant |
Yes |
| Row Spacing |
6.5mm |
| Sealable |
Yes (With) |
| Series |
HDSCS, MCP |
| Serviceable |
Yes |
| Strain Relief |
Add By Accessory |
| Termination |
Crimp |
| Type |
Socket housing PCB |
| Width |
48.1mm |
