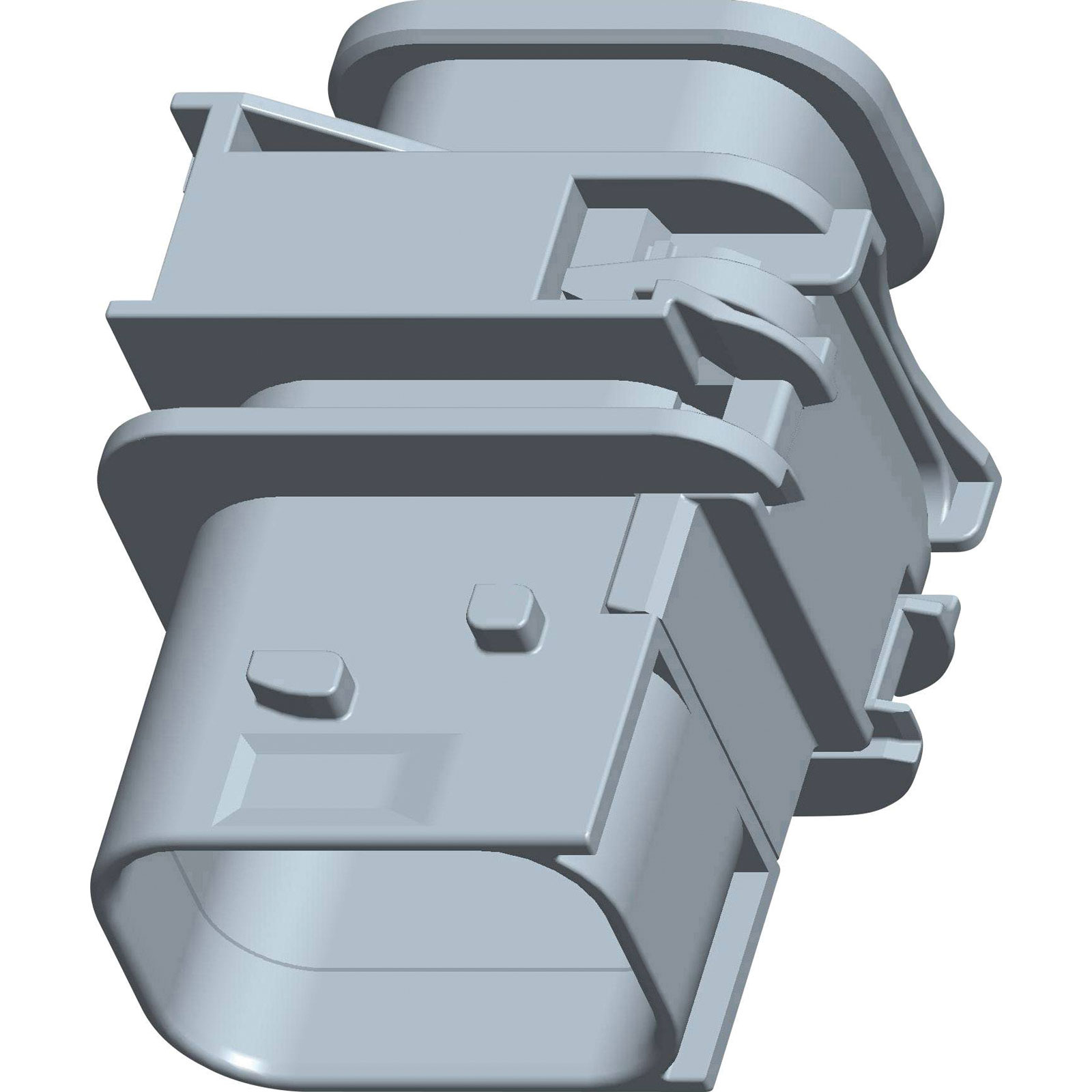

TE Connectivity's 1-1564414-1 is a male shrouded connector plug.
It features a 2-position configuration with pin contacts for secure connections.
The connector is typically used in automotive applications to ensure reliable electrical connections.
Its robust design makes it suitable for harsh environmental conditions.
| Pitch |
0.157inch |
| No. of Rows |
2 |
| No. of Ways |
12 |
| AWG (min.) |
17 |
| AWG max. |
17 |
| Body Material |
PBT |
| Case Material |
Thermoplastic material |
| Circuit Application |
Signal |
| Code |
A |
| Color |
Black |
| Connection |
Type C CEE 7/16 plug 1.6 mm |
| Connector System |
automotive |
| Connector Type |
Plug, straight |
| Contact Type |
Tab |
| Depth |
47.1mm |
| Dim |
(L x W x H) 27 x 47.1 x 40.6 mm |
| ELV |
Compliant |
| Factory colour |
Black |
| Flammability Rating |
UL94 V-0 |
| Gender |
Male |
| Height |
40.6mm |
| Housing Color |
Black |
| Hybrid Connector |
No |
| Industrial packaging |
No |
| Insulation Material |
Thermoplastic material |
| IP Rating |
IP67/IP69K |
| Length |
27mm |
| Mating Tab Width |
0.063inch |
| Max Operating Temperature |
140°C |
| max. cross section |
1mm² |
| Max. temperature |
+140°C |
| Min Operating Temperature |
-40°C |
| Min. cross section |
1mm² |
| Min. temperature |
-40°C |
| Misc Attribute |
HDSCS, MCP |
| Mount |
Panel, Cable |
| Nominal Voltage |
42V DC |
| Number of Contacts |
12 |
| Number of Positions |
12 |
| Number of Rows |
2 |
| Orientation |
Straight |
| Package Quantity |
280 |
| Packaging |
Carton |
| Pin shape |
Rectangular |
| Pins per row |
6 |
| Polarized |
Yes |
| Ratings |
IP67 |
| Reach SVHC Compliant |
Unknown |
| RoHS Compliant |
Yes |
| Row Spacing |
6.9mm |
| Sealable |
Yes (With) |
| Series |
HDSCS, MCP |
| Serviceable |
Yes |
| Strain Relief |
Add By Accessory |
| Termination |
Crimp |
| Type |
Socket housing PCB |
| Width |
47.1mm |
