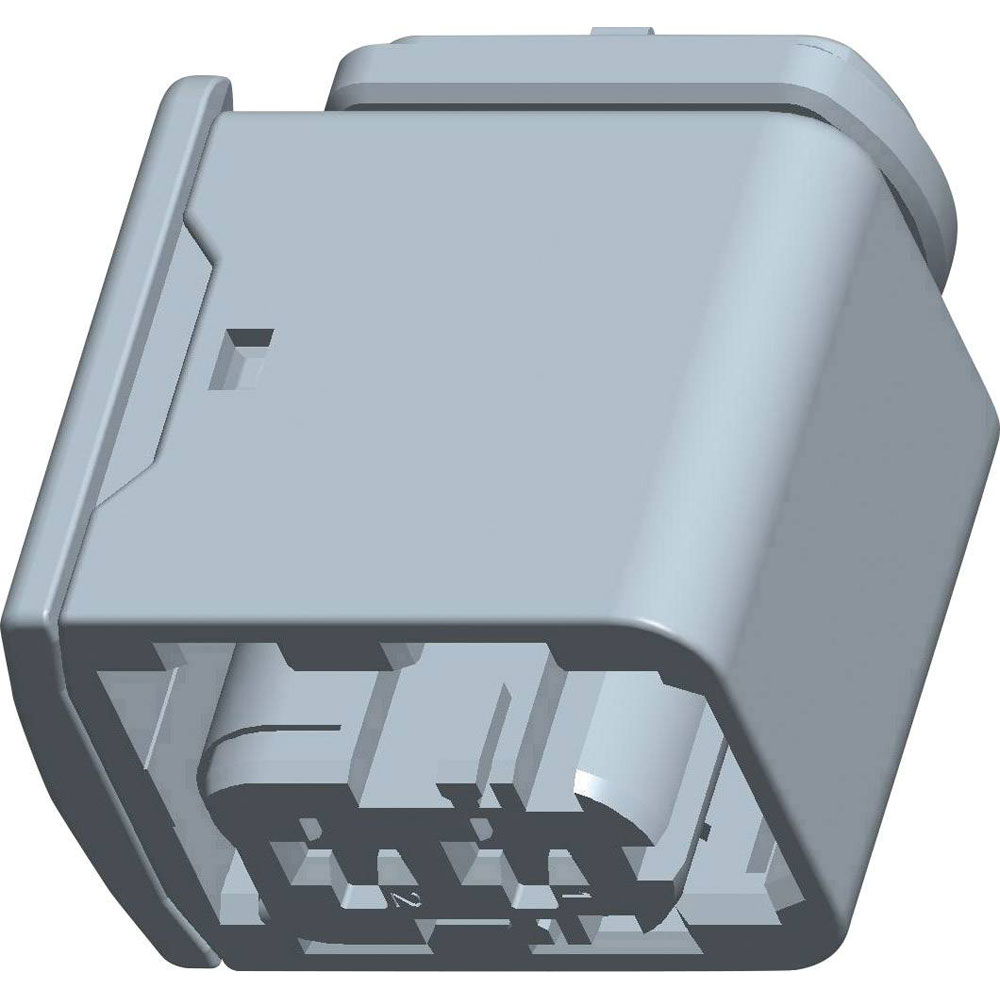

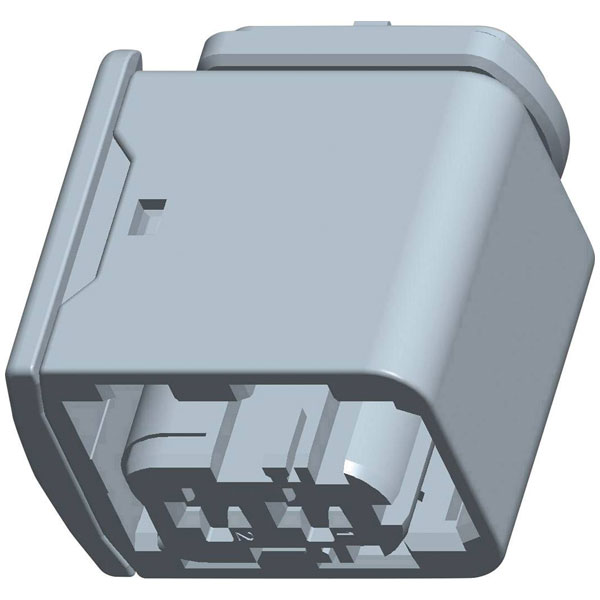

TE Connectivity 1-1418483-1 is a female unshrouded connector with 2 positions and AMP MCP2.8 series.
It offers reliable electrical connections due to its robust design, ensuring secure mating.
Typical applications include automotive and industrial environments where dependable connectivity is crucial.
This connector is ideal for installations requiring durability and efficiency in limited spaces.
| Type |
Socket, straight |
| Number of Contacts |
2 |
| Gender |
Female |
| Number of Rows |
1 |
| Body Material |
PBT |
| Case Material |
Thermoplastic material |
| Circuit Application |
Signal |
| Code |
A |
| Colour |
Black |
| Connection |
Type C CEE 7/16 plug 2.8mm |
| Connector contact surface |
Tin plated |
| Connector System |
automotive |
| Contact Type |
Female Socket |
| Dimensions |
(L x W x H) 18.5 x 36 x 31.25 mm |
| ELV |
Compliant |
| Flammability Rating |
UL94 V-0 |
| Height |
31.25mm |
| Housing Color |
Black |
| Hybrid Connector |
No |
| Industrial packaging |
No |
| Insulation Material |
Thermoplastic material |
| IP Rating |
IP67/IP69K |
| Length |
18.5mm |
| Mating Tab Width |
0.11inch |
| Max Operating Temperature |
140°C |
| max. cross section |
2.50mm² |
| Max. temperature |
+140°C |
| Min Operating Temperature |
-40°C |
| Min. cross section |
2.50mm² |
| Min. temperature |
-40°C |
| Misc Attribute |
HDSCS, MCP |
| Mount |
Free Hanging |
| Nominal Voltage |
42V DC |
| Package Quantity |
700 |
| Packaging |
Carton |
| Pin shape |
Rectangular |
| Pins per row |
2 |
| Pitch |
6mm |
| Polarized |
Yes |
| Ratings |
IP67 |
| Reach SVHC Compliant |
No |
| RoHS Compliant |
Yes |
| Sealable |
Yes (With) |
| Series |
HDSCS, MCP |
| Serviceable |
Yes |
| Strain Relief |
No (Without) |
| Termination |
Crimp |
| Width |
36mm |
| Wire Gauge (AWG) |
12 |
