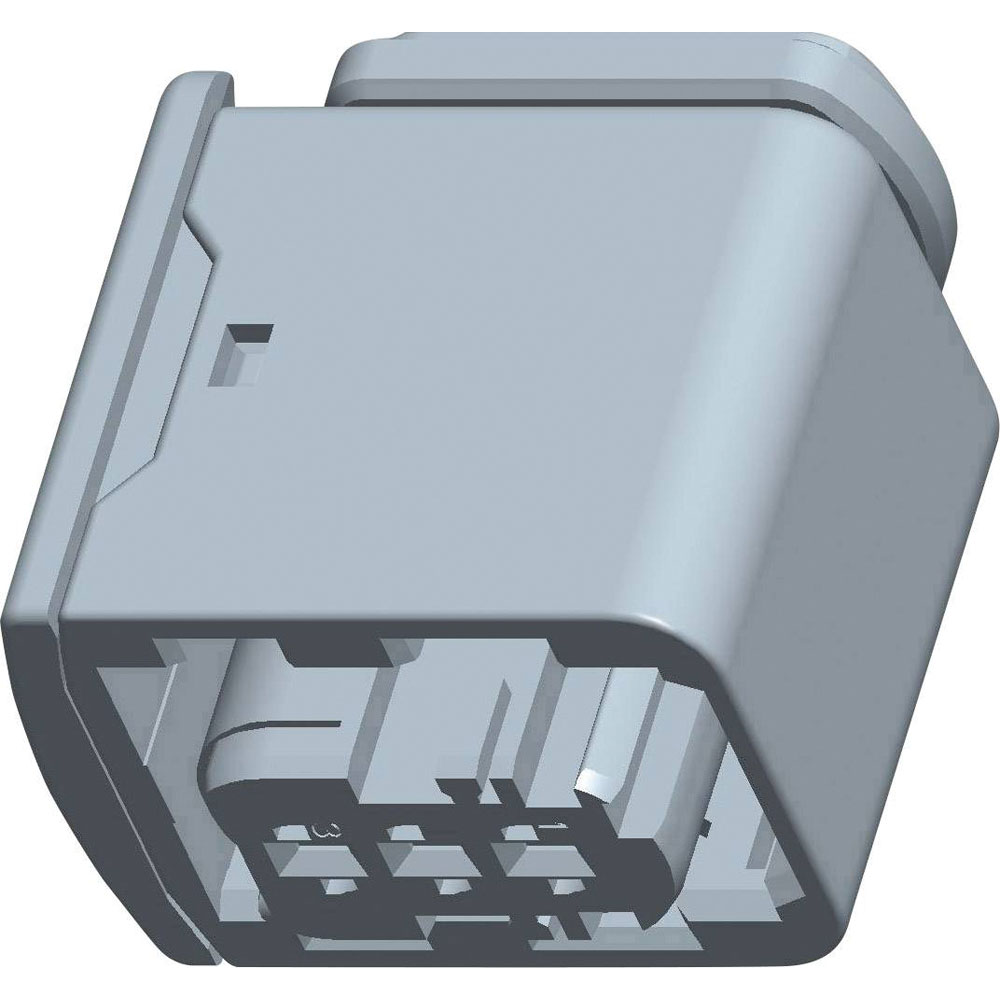

TE Connectivity 1-1418469-1 is a female shrouded MCP automotive connector housing.
It features robust construction for secure and reliable connections.
The connector is ideal for use in automotive electrical systems.
It is designed to withstand harsh environmental conditions.
| Type |
Socket, straight |
| Number of Contacts |
6 |
| Gender |
Female |
| Number of Rows |
2 |
| Body Material |
PBT |
| Case Material |
Thermoplastic material |
| Circuit Application |
Signal |
| Code |
A |
| Colour |
Black |
| Connection |
Type C CEE 7/16 plug 1.6mm |
| Connector contact surface |
Tin plated |
| Connector System |
automotive |
| Contact Type |
Female Socket |
| Depth |
31.25mm |
| Dimensions |
(L x W x H) 25.7 x 43 x 31.25 mm |
| ELV |
Compliant |
| Flammability Rating |
UL94 V-0 |
| Height |
31.25mm |
| Housing Color |
Black |
| Hybrid Connector |
No |
| Industrial packaging |
No |
| Insulation Material |
Thermoplastic material |
| IP Rating |
IP67/IP69K |
| Length |
25.7mm |
| Mating Tab Width |
0.063inch |
| Max Operating Temperature |
140°C |
| max. cross section |
1.50mm² |
| Max. temperature |
+140°C |
| Min Operating Temperature |
-40°C |
| Min. cross section |
1.50mm² |
| Min. temperature |
-40°C |
| Misc Attribute |
HDSCS, MCP |
| Mount |
Free Hanging, Cable |
| Nominal Voltage |
42V DC |
| Package Quantity |
1 |
| Packaging |
Bulk |
| Pin shape |
Rectangular |
| Pins per row |
3 |
| Pitch |
0.157inch |
| Polarized |
Yes |
| Ratings |
IP67 |
| Reach SVHC Compliant |
No |
| RoHS Compliant |
Yes |
| Row Spacing |
7.6mm |
| Sealable |
Yes (With) |
| Series |
HDSCS, MCP |
| Serviceable |
Yes |
| Strain Relief |
No (Without) |
| Termination |
Crimp |
| Voltage Rating |
60v |
| Width |
43mm |
| Wire Gauge (AWG) |
16 |
