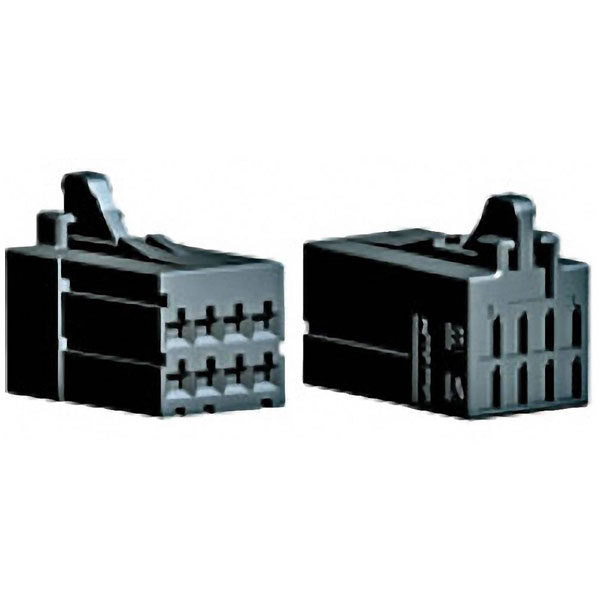

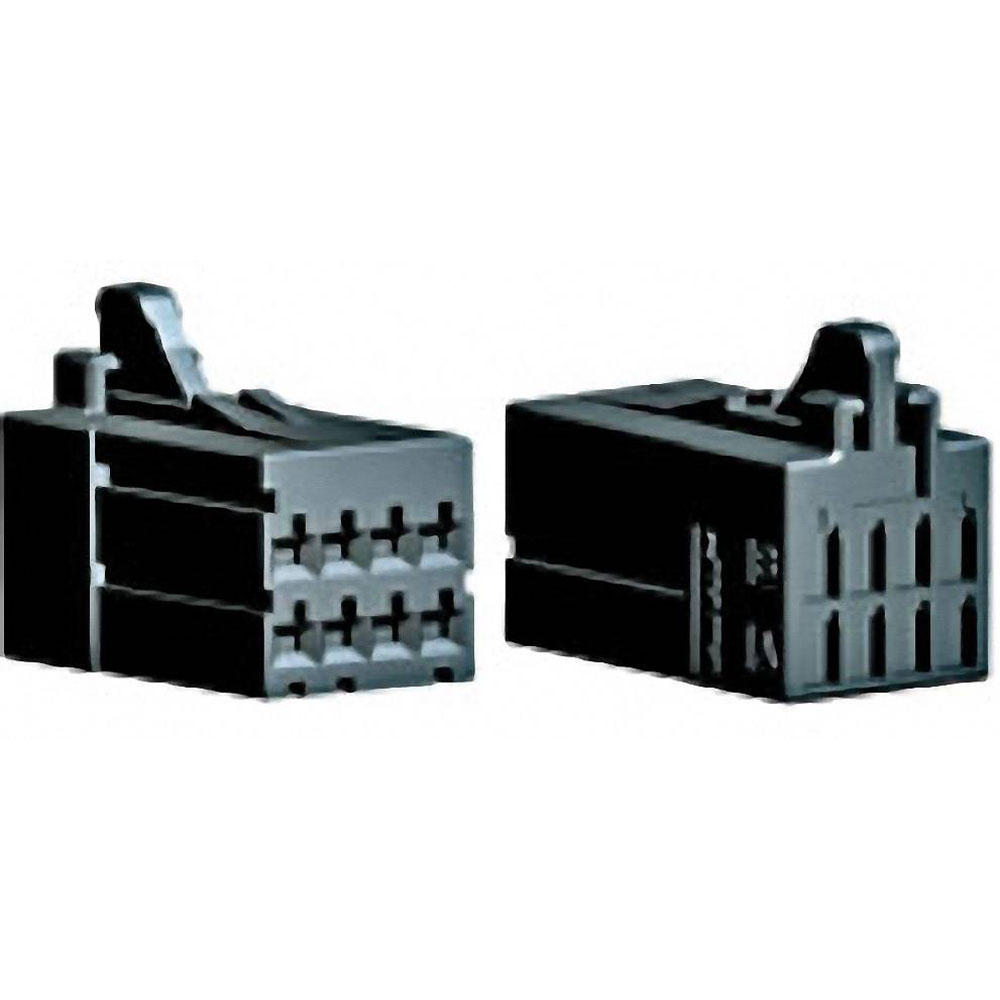

The TE Connectivity 1-1318119-4 is a board connector with 8 contacts arranged in 2 rows.
It is a female, unshrouded connector designed for ease of use in various electronic applications.
The robust design ensures reliable connections for printed circuit boards.
Typical applications include use in telecommunications and data network equipment.
| Type |
Socket housing cable |
| Pitch |
2.4892mm |
| Number of Ways |
8 |
| Number of Rows |
2 |
| Mounting Type |
Cable Mount (Free-Hanging) |
| Approvals |
UL |
| Case Material |
Polyester |
| Circuit Application |
Signal |
| Code |
X |
| Color |
Black |
| Colour |
Black |
| Connector & Contact Terminates To |
Wire & Cable |
| Connector & Housing Type |
Receptacle |
| Connector contact surface |
Tin plated |
| Connector Height |
.62 |
| Connector Length |
.44 |
| Connector Product Type |
Housing |
| Connector System |
wire-to-board |
| Connector Type |
Socket, straight |
| Connector Width |
.78 |
| Contact Base Material |
Copper Alloy |
| Contact Current Rating (Max) |
5 |
| Contact Gender |
Female |
| Contact Type |
Receptacle |
| Depth |
20mm |
| Dimensions |
(L x W x H) 11.4 x 20 x 15.78 mm |
| ELV |
Compliant |
| Flammability Rating |
UL94 V-0 |
| Gender |
Receptacle |
| Halogen free |
Halogen Free |
| Height |
15.78mm |
| Housing Color |
Black |
| Housing Material |
Thermoplastic GF |
| Industrial packaging |
No |
| Insulation Material |
Polyester |
| Lead Free |
Lead Free |
| Length |
11.4mm |
| Mating Retention |
With |
| Max Operating Temperature |
221°C |
| Max Voltage Rating (AC) |
250v |
| Max. temperature |
+105°C |
| Min Operating Temperature |
-67°C |
| Min. temperature |
-55°C |
| Misc Attribute |
DYNAMIC D-2100D |
| Mount |
Free Hanging, Cable |
| Nominal Current |
4.50A |
| Nominal current - rounded value |
4.5A |
| Number of Contacts |
8 |
| Number of Positions |
8 |
| Operating Temperature Range |
-67 – 221 |
| Orientation |
Straight |
| Package Quantity |
500 |
| Packaging |
Bag |
| Packaging Method |
Bag |
| Packaging Quantity |
400 |
| Pin shape |
Rectangular |
| Pins per row |
4 |
| Preloaded |
No |
| Primary Product colour |
Black |
| Radiation Hardening |
No |
| Reach SVHC Compliant |
Unknown |
| RoHS Compliant |
Yes |
| Row Spacing |
3.75mm |
| Row-to-Row Spacing |
.147 |
| Sealable |
No |
| Selectively Loaded |
No (Without) |
| Series |
DYNAMIC 2000 Series |
| Termination |
Crimp |
| Termination Method to Wire & Cable |
Crimp |
| UL Flammability Rating |
UL 94V-0 |
| VDE Tested |
No |
| Width |
20mm |
| Wire/Cable Gauge |
18AWG |
