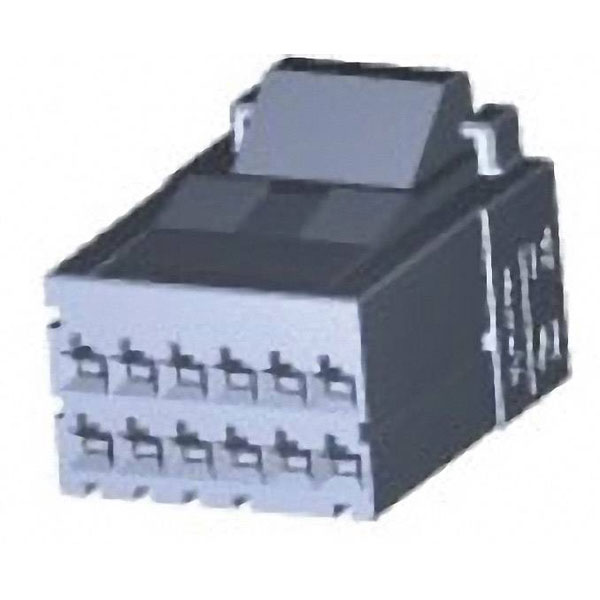

TE Connectivity 1-1318118-6 is a female shrouded 12-position connector housing.
It is designed for secure connections in electrical systems, offering reliable performance.
The connector is suitable for use in various applications, including automotive and industrial environments.
Its robust design ensures durability and long-term use.
| Type |
Socket housing cable |
| Pitch |
2.4892mm |
| Number of Ways |
12 |
| Number of Rows |
2 |
| Mounting Type |
Cable Mount (Free-Hanging) |
| Approvals |
UL |
| Case Material |
Polyester |
| Circuit Application |
Signal |
| Code |
X |
| Color |
Black |
| Colour |
Black |
| Connector & Contact Terminates To |
Wire & Cable |
| Connector & Housing Type |
Receptacle |
| Connector contact surface |
Tin plated |
| Connector Height |
.58 |
| Connector Length |
.64 |
| Connector Product Type |
Housing |
| Connector System |
wire-to-board |
| Connector Type |
Socket, straight |
| Connector Width |
.78 |
| Contact Base Material |
Copper Alloy |
| Contact Current Rating (Max) |
5 |
| Contact Gender |
Female |
| Contact Style |
Socket |
| Contact Type |
Receptacle |
| Contact Underplating Material |
Nickel |
| Depth |
20mm |
| Dimensions |
(L x W x H) 14.8 x 20 x 16.4 mm |
| ELV |
Compliant |
| Flammability Rating |
UL94 V-0 |
| Gender |
Receptacle |
| Halogen free |
Halogen Free |
| Height |
16.4mm |
| Housing Color |
Black |
| Housing Material |
Thermoplastic GF |
| Industrial packaging |
No |
| Insulation Material |
Polyester |
| Lead Free |
Lead Free |
| Length |
14.8mm |
| Mating Retention |
With |
| Max Operating Temperature |
221°C |
| Max Voltage Rating (AC) |
250v |
| Max. temperature |
+105°C |
| Min Operating Temperature |
-67°C |
| Min. temperature |
-55°C |
| Misc Attribute |
DYNAMIC D-2100D |
| Mount |
Free Hanging, Cable |
| Nominal Current |
4A |
| Nominal current - rounded value |
4A |
| Number of Contacts |
12 |
| Number of Positions |
12 |
| Operating Supply Voltage |
250v |
| Operating Temperature Range |
-67 – 221 |
| Orientation |
Straight |
| Package Quantity |
300 |
| Packaging |
Bag |
| Packaging Method |
Bag |
| Packaging Quantity |
300 |
| Pin shape |
Rectangular |
| Pins per row |
6 |
| Preloaded |
No |
| Primary Product colour |
Black |
| Primary Type |
CONNECTOR |
| Radiation Hardening |
No |
| Reach SVHC Compliant |
Unknown |
| RoHS Compliant |
Yes |
| Row Spacing |
3.75mm |
| Row-to-Row Spacing |
.147 |
| Sealable |
No |
| Selectively Loaded |
No (Without) |
| Series |
DYNAMIC 2000 Series |
| Termination |
Crimp |
| Termination Method to Wire & Cable |
Crimp |
| UL Flammability Rating |
UL 94V-0 |
| VDE Tested |
No |
| Width |
20mm |
| Wire/Cable Gauge |
18AWG |
