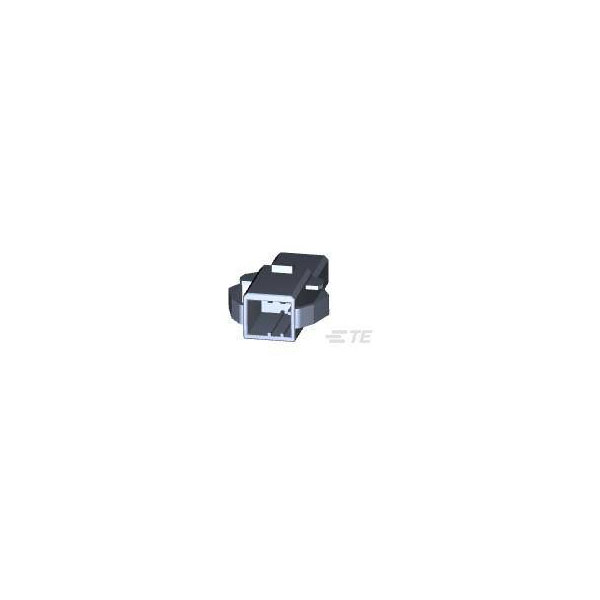

TE Connectivity 1-1318116-3 is a panel mount female shrouded tab housing designed for secure electrical connections.
It features three positions and provides enhanced protection for connectors.
The part is suitable for various industrial and automotive applications.
Its robust design ensures reliable performance in demanding environments.
| Type |
Rectangular Wire & Cable Connectors & Housings |
| Approvals |
UL |
| Centerline (Pitch) |
2.4892mm |
| Circuit Application |
Signal |
| Color |
Black |
| Connector & Contact Terminates To |
Wire & Cable |
| Connector & Housing Type |
Housing for Male Terminals |
| Connector Mounting Type |
Panel Mount |
| Connector Product Type |
Housing |
| Connector System |
Wire-to-Wire |
| Contact Gender |
Male |
| Contact Type |
Male Pin |
| Depth |
30.69mm |
| ELV |
Compliant |
| Flammability Rating |
UL94 V-0 |
| Gender |
Male |
| Halogen free |
Halogen Free |
| Height |
30.69mm |
| Housing Color |
Black |
| Lead Free |
Lead Free |
| Length |
10.2mm |
| Mating Retention |
With |
| Max Operating Temperature |
221°C |
| Max Voltage Rating (AC) |
250v |
| Min Operating Temperature |
-67°C |
| Misc Attribute |
TE AMP Dynamic Series |
| Mount |
Panel, Snap in, Cable |
| Number of Contacts |
3 |
| Number of Positions |
3 |
| Number of Rows |
1 |
| Operating Temperature Range |
-67 – 221 |
| Orientation |
Straight |
| Package Quantity |
300 |
| Packaging |
Bag |
| Packaging Type |
Bag |
| Panel Thickness |
0.078inch |
| Pitch |
2.5 |
| Preloaded |
No |
| Primary Product colour |
Black |
| Reach SVHC Compliant |
No |
| RoHS Compliant |
Yes |
| Sealable |
No |
| Selectively Loaded |
No (Without) |
| Series |
Dynamic D-2100 |
| Termination |
Crimp |
| Termination Method to Wire & Cable |
Crimp |
| VDE Tested |
No |
| Width |
16.38mm |
| Wire/Cable Gauge |
18AWG |
