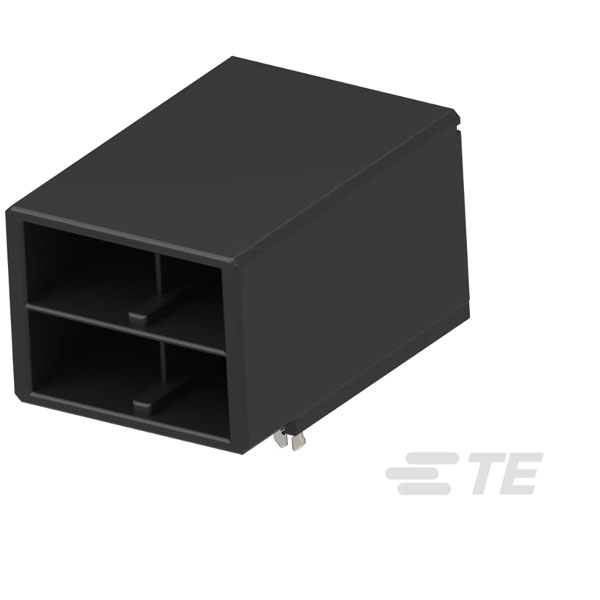

TE Connectivity's 1-1123309-2 is a male shrouded header wire housing with a 4-pin assembly.
This part features a robust design suitable for secure electrical connections.
It is commonly used in electronic and electrical applications for reliable wire-to-board interfaces.
The product ensures stable and efficient connectivity in various industrial and consumer electronics.
| Type |
PCB Headers - Male Contacts |
| Pitch |
10.16mm |
| Number of Ways |
4 |
| Number of Rows |
2 |
| Mounting Type |
Board Mount |
| Mounting Direction |
Horizontal |
| Approvals |
UL |
| Circuit Application |
Power |
| Color |
Black |
| Connector & Contact Terminates To |
Printed Circuit Board |
| Connector Product Type |
Connector Assembly |
| Connector System |
Wire-to-Board |
| Contact Base Material |
Copper Alloy |
| Contact Current Rating |
45a |
| Contact Current Rating (Max) |
45 |
| Contact Finish - Mating |
GOLD |
| Contact Material |
Copper Alloy |
| Contact Mating Area Plating Material |
Gold (Au) |
| Contact Mating Area Plating Material Thickness |
15 |
| Contact Plating |
Gold |
| Contact Retention |
No (Without) |
| Contact Shape |
Rectangular |
| Contact Type |
Pin |
| Depth |
42.16mm |
| ELV |
Compliant |
| Flammability Rating |
UL94 V-0 |
| Header Type |
Fully Shrouded |
| Height |
24.06mm |
| Housing Color |
Black |
| Housing Material |
Thermoplastic GF |
| Insulation Color |
Black |
| Insulation Material |
Glass |
| Length |
1.15inch |
| Mating Alignment |
With |
| Mating Alignment Type |
Keyed |
| Mating Retention |
With |
| Max Voltage Rating (AC) |
630v |
| Maximum Operating Temperature |
221°C |
| Minimum Operating Temperature |
-67°C |
| Mount |
Through Hole |
| Number of Contacts |
4 |
| Number of Ports |
1 |
| Number of Positions |
4 |
| Operating Temperature (Max) |
221 |
| Operating Temperature Range |
-67 – 221 |
| Orientation |
Right Angle |
| Package Quantity |
15 |
| Packaging |
Rail/Tube |
| Packaging Method |
Tube |
| Packaging Quantity |
15 |
| PCB Connector Type |
PCB Mount Header |
| PCB Mount Alignment |
Without |
| PCB Mount Retention |
With |
| PCB Mount Retention Type |
Retention Leg |
| PCB Mounting Orientation |
Right Angle |
| PCB Thickness |
2.4mm |
| Preloaded |
Yes |
| Primary Product colour |
Black |
| Radiation Hardening |
No |
| Ratings |
IP20 |
| RoHS Compliant |
Yes |
| Row Spacing |
10.16mm |
| Sealable |
No |
| Selectively Loaded |
No (Without) |
| Series |
Dynamic D-5200 |
| Shielding |
Unshielded |
| Shrouded |
Yes (With) |
| Strain Relief |
No (Without) |
| Tail Length |
3.8mm |
| Termination |
Solder |
| Termination Method to PCB |
Through Hole - Solder |
| UL Flammability Rating |
UL 94V-0 |
| VDE Tested |
No |
| Voltage Rating |
630v |
| Width |
1.65inch |
