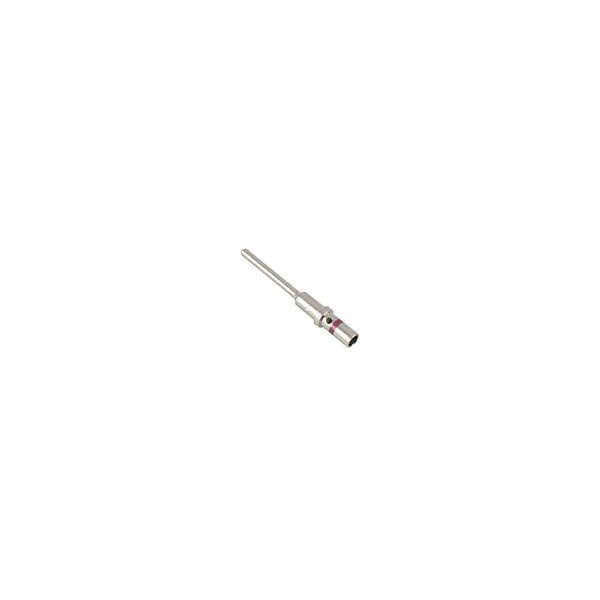

TE Connectivity 0460-202-2031 DT Pin Bullet Connector 20AWG Gold

Image Representative of Range

TE Connectivity 0460-202-2031 DT Pin Bullet Connector 20AWG Gold

TE Connectivity
Order Code:

07-3256

Brand: TE Connectivity MPN: 0460-202-2031 EAN-13: 2050003957694
Qty Unit Price (Ex VAT)
10+ £0.690
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
Available to back orderPlease contact us for lead time

The TE Connectivity 0460-202-2031 is a bullet connector single contact pin, part of the DT series of round connectors. It features a 20 AWG gold contact for reliable connections, suitable in environments where durabilty is crucial. This connector is typically used in automotive and industrial applications due to its secure locking mechanism.
Type Pin
Connection Crimp
Connection Angle 180°
Contact Material Gold plated
Contact Plating Gold
Cross Section 0.5 mm² (max)
Current Rating 7.5A
Lead Free Lead Free
max. cross section 0.5mm²
Max. temperature +85°C
Min. temperature -40°C
Nominal Voltage 125V
Package Quantity 1
RoHS Compliant Yes
Sealable No (Without)
Series DT
Termination Crimp
Wire Gauge (AWG) 20AWG
