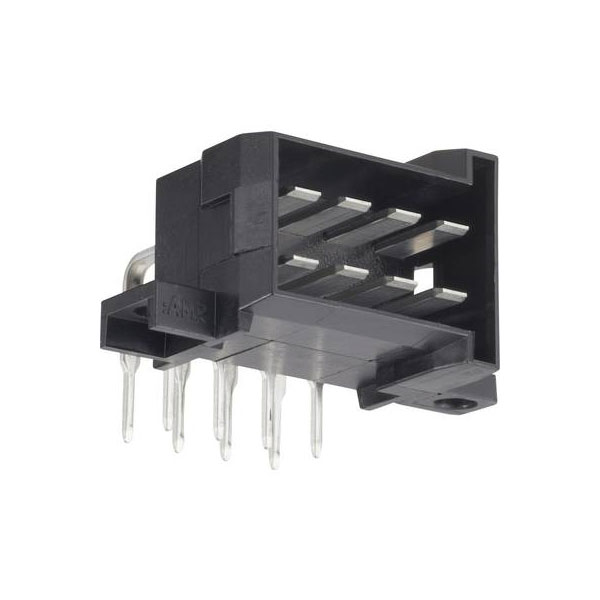

These PCB mount right angle tab headers from TE Connectivity have tabs measuring 3 x 0.8mm with a pitch of 5.6mm. The connector extends to the left of the polarising slot. Part of the Junior Power Timer range of automotive connectors.
- Colour: Black
- Length: 26.1mm ( 1.358 in )
- Width: 3mm (.118 in )
- Number of positions per row: 2
- Number of rows: 2
- Number of circuits: 4
- Mounting orientation: Horizontal/90°
- Termination method to PCB: Through Hole
- Tab thickness: .8mm (.031 in )
- Pitch: 5.6mm (.22 in )
- Locking interface: Yes
- Mounting holes: Yes
- Number of sections: 1
- Profile height from PCB: 19mm (.748 in )
- Packaging quantity: 1
- Mftrs part no. 828801-1
| Pitch |
5.6mm |
| No. of Rows |
2 |
| No. of Ways |
4 |
| Circuit Application |
Signal |
| Colour |
Black |
| Contact Finish - Mating |
TIN |
| Contact Material |
Brass, Tin |
| Contact Plating |
Tin |
| Contact Shape |
Rectangular |
| Contact Type |
Tab |
| Depth |
25.5mm |
| ELV |
Compliant |
| Flammability Rating |
UL94 V-2 |
| Housing colour |
Black |
| Insulation Colour |
Black |
| Insulation Material |
Nylon |
| Length |
26.1mm ( 1.358 in ) |
| Maximum Operating Temperature |
105°C |
| Minimum Operating Temperature |
-55°C |
| Mount |
Through Hole |
| Number of Contacts |
4 |
| Number of Positions |
4 |
| Number of Rows |
2 |
| Orientation |
Right Angle |
| Package Quantity |
735 |
| Packaging |
Bulk |
| PCB Mount Alignment |
No (Without) |
| PCB Mount Retention |
With |
| Radiation Hardening |
No |
| RoHS Compliant |
Yes |
| Row Spacing |
0.197inch |
| Sealable |
No (Without) |
| Series |
Junior Power Timer |
| Shielding |
Unshielded |
| Tab Thickness |
0.8mm |
| Tab Width |
3mm |
| Termination |
Solder |
| Type |
Pin housing PCB |
| Width |
3mm (.118 in ) |
