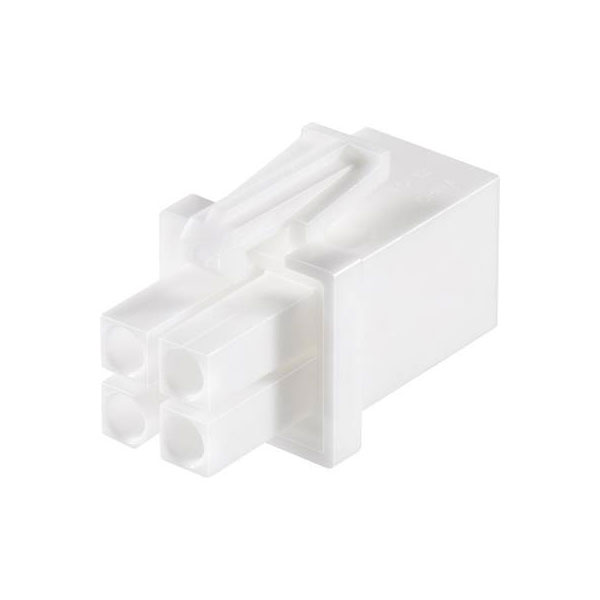

TE Connectivity double row headers for their Mini Universal Mate-N-Lok series.
- Product type: Connector
- Connector type: Socket Housing
- Applies to: Wire/Cable
- For use: Mini-Universal Mate-N-Lok Sealed Cap Housing
- Colour: Natural
- Length: 24.97mm
- Width: 16.54
- Height: 15.21mm
- Number of positions per row: 3
- Number of rows: 2
- Row-to-row spacing: 4.14mm (.163 in )
- Housing material: Nylon 66/6
- UL flammability rating: UL94 V-0
- Operating voltage (V AC): 600 VAC ( 600 VDC )
- Operating voltage (VDC): 600 VAC ( 600 VDC
- Connector system: Wire-to-Wire
- Operating temperature range: -40 to +90 °C ( -40 to +194 °F )
- Packaging quantity: 1
- Mftrs part no. 794895-1
Note: Use in conjunction with interface seal, wire seals and cavity plug seals.
| Type |
Socket housing |
| Pitch |
4.14mm |
| Number of Ways |
6 |
| Number of Rows |
2 |
| Mounting Type |
Cable Mount (Free-Hanging) |
| Mounting Direction |
Straight |
| Circuit Application |
Power & Signal |
| Color |
White, Beige |
| Colour |
Ecru |
| Connection |
Crimp |
| Connector & Contact Terminates To |
Wire & Cable |
| Connector & Housing Type |
Plug |
| Connector Height |
15.21 |
| Connector Length |
24.97 |
| Connector Product Type |
Housing |
| Connector System |
Wire-to-Wire |
| Connector Width |
16.54 |
| Contact Gender |
Female |
| Contact Retention |
No (Without) |
| Contact Retention Within Housing |
Without |
| Contact Style |
Socket |
| Contact Type |
Socket |
| Current Rating |
9a |
| DC Rated Voltage |
250v |
| Depth |
24.97mm |
| ELV |
Compliant |
| Flammability Rating |
UL94 V-0 |
| Gender |
Male |
| Glow Wire Rating |
Standard Part - Not Glow Wire |
| Height |
15.21mm |
| Housing Color |
White |
| Housing Material |
Nylon |
| IP Rating |
IP56, IP57 |
| Length |
24.97mm |
| Material |
Nylon |
| Max Current Rating |
9a |
| Max Voltage Rating (AC) |
600v |
| Maximum Operating Temperature |
105°C |
| Maximum Temperature |
+90°C |
| Maximum Wire Size AWG |
20 |
| Min. temperature |
-40°C |
| Minimum Operating Temperature |
-20°C |
| Mount |
Free Hanging |
| Number of Circuits |
6 |
| Number of Contacts |
6 |
| Number of pins |
6 |
| Number of Poles |
6 |
| Number of Positions |
6 |
| Operating Supply Voltage |
600v |
| Operating Temperature Range |
-4 – 221 |
| Operating Voltage |
600 |
| Orientation |
Straight |
| Package Quantity |
2000 |
| Packaging |
Box |
| Packaging Method |
Box |
| Packaging Quantity |
2000 |
| Panel Mount Feature |
Without |
| Primary Product colour |
White |
| Ratings |
IP56 |
| Reach SVHC Compliant |
Unknown |
| RoHS Compliant |
Yes |
| Row Spacing |
0.162mm |
| Row-to-Row Spacing |
.162 |
| Sealable |
Yes |
| Series |
Mini-Universal MATE-N-LOK |
| Termination |
Crimp |
| Termination Method to Wire & Cable |
Crimp |
| UL Flammability Rating |
UL 94V-0 |
| Voltage Rating |
600v |
| Voltage Rating (AC) |
600v |
| Width |
16.54mm |
| Wire/Cable Gauge |
10AWG |
| Working Voltage |
250v |
