Stäubli 233060-25 SLB4-F63 gr safety jack socket Ø4 mm built-in insulated

MPN: 23.3060-25
Brand: Staubli
EAN-13: 2050000576836
Order Code: 00-0313
Country of Origin: Switzerland

RoHS Compliant
Free UK shipping available

Inc VAT

Qty	Unit Price (Ex VAT)
2+	£3.75
10+	£3.50
25+	£3.21
50+	£2.94

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 1

Available to back orderBack order, lead time 5 weeks

Product Details
Data Sheets

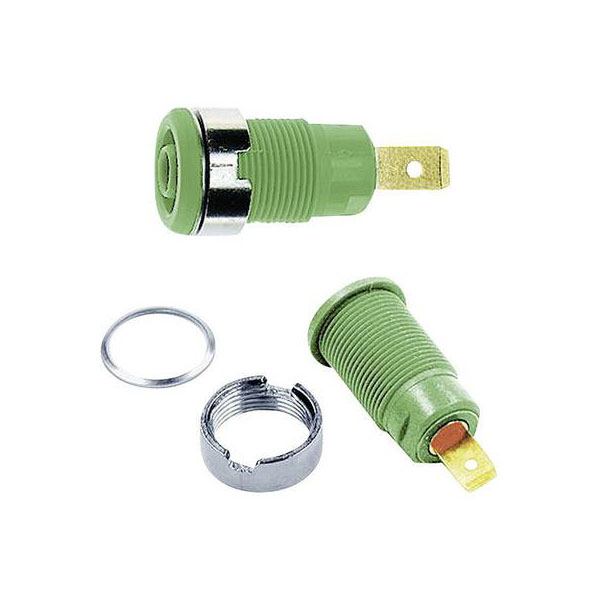

Insulated, rigid 4mm socket connector, suitable for accepting spring-loaded 4mm plugs with rigid insulating sleeve. The socket is from brass. Panel mount by fitting into cutouts in plates or housings.

Connector Type	4mm Socket
Plug / Socket	Socket
Mounting Direction	Straight (Panel)
Insulated	Yes
Colour	Green
Cable Diameter	14.5mm
Contact Plating	Gold plated
Dim	(Ø x L) 14.5 mm x 33 mm
Insulation Material	Insulated
Length	33mm
Nominal Current	32A
Nominal current - rounded value	32A
Nominal Voltage	1000V
Type	Socket, built-in
Width	4mm
