SKS Hirschmann 4mm PKNI 20 B Sockets 63A

SKS Hirschmann Brand: SKS Hirschmann

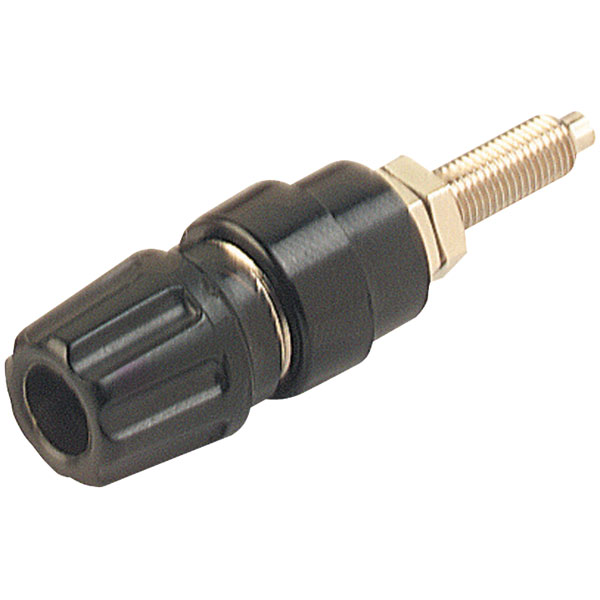

These PKNI 20 B 4mm pole terminals from SKS Hirschmann are suitable for insulated twist-free mounting in equipment frames and switch panels with walls up to 3.5mm thick. Available in a choice of red or black.

  • Threaded 6mm nickel-plated brass bolt has 2.6mm diameter cross-hole
  • Dimensions: 17mm ø x 63.5mm length
  • M6 thread, solder termination
  • Rated voltage 30V AC/60V DC
  • Rated current 63A
  • Contact resistance 2mΩ
Description Image Product Buy Pricing (Ex VAT) Colour Current Rating Gender Mount Type Voltage Rating
SKS Hirschmann 930 144-100 4mm PKN 20 B Socket 63 A Black
SKS Hirschmann 930 144-100 4mm PKN 20 B Socket 63 A Black
Standard range
Order code: 50-9797
MPN: 930144100

19 in stock, despatched in 4 working days
1+ £7.00
10+ £6.03
50+ £5.68
Price per unit Ex VAT 		Black 63A Socket Panel 4mm socket 60V
SKS Hirschmann 930 144-101 4mm PKN 20 B Socket 63 A Red
SKS Hirschmann 930 144-101 4mm PKN 20 B Socket 63 A Red
Standard range
Order code: 50-9798
MPN: 930144101

42 in stock, despatched in 4 working days
1+ £7.00
10+ £6.03
50+ £5.69
Price per unit Ex VAT 		Red 63A Socket Panel 4mm socket 60V
Order code50-979750-9798
ColourBlackRed
ConnectionScrewScrew
Dimensions (Ø x L) 17 x 63.5mm17 x 63.5mm
Nominal current63A63A
Nominal voltage60V60V
Pin diameter4mm4mm
Temperature range-25 to +100°C-25 to +100°C
TypePKN1 20 BPKN1 20 B
Manufacturer part no.930 144-100930 144-101
