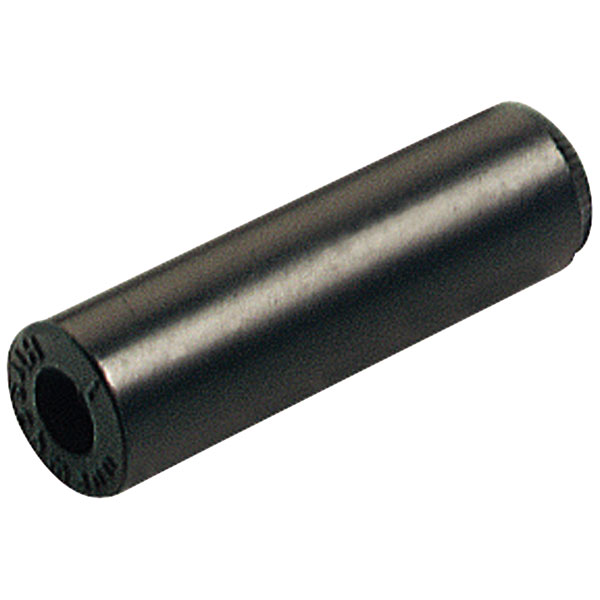

SKS Hirschmann 4mm KUN 10 Socket 16A

SKS Hirschmann Brand: SKS Hirschmann

SKS Hirschmann KUN 10 insulated sockets for a 4mm plug and screw connection for cables up to 1.5 mm² diameter. Available in choice of black or red.

  • Tin-plated brass bushing
  • Connector is screwed into insulated handle
  • Rated voltage 30V AC/60V DC
  • Rated current 16A
  • Contact resistance 10mΩ
Description Image Product Buy Pricing (Ex VAT) Colour
SKS Hirschmann 930 189-100 4mm KUN 10 Socket 16A Black
SKS Hirschmann 930 189-100 4mm KUN 10 Socket 16A Black
Standard range
Order code: 50-9785
MPN: 930189100

321 in stock, despatched in 4 working days
5+ £1.15
Price per unit Ex VAT 		Black
SKS Hirschmann 930 189-101 4mm KUN 10 Socket 16A Red
SKS Hirschmann 930 189-101 4mm KUN 10 Socket 16A Red
Standard range
Order code: 50-9786
MPN: 930189101

295 in stock, despatched in 4 working days
5+ £0.970
Price per unit Ex VAT 		Red
50-9785
ColourBlack
Manufacturer part no.930 189-100
Nominal current16A
Nominal voltage60Vdc
Pin diameter4mm
Plug constructionCoupler, Straight
Temperature range-25 °C to +70°C
Type (manufacturer type)KUN 10
50-9786
ColourRed
Manufacturer part no.930 189-101
Nominal current16A
Nominal voltage60Vdc
Pin diameter4mm
Plug constructionCoupler, Straight
Temperature range-25 °C to +70°C
Type (manufacturer type)KUN 10
