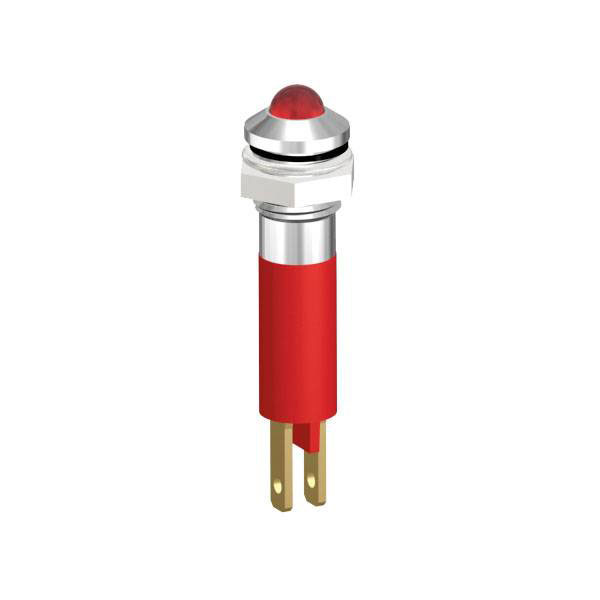

Signal Construct SWQU08024A LED Indicator Light 24V Red IP67 Front Install

Signal Construct
Order Code:

07-1106

Brand: Signal Construct MPN: SWQU08024A EAN-13: 2050007088134
Qty Unit Price (Ex VAT)
2+ £3.32
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
14 available to back orderBack-order availability date - 16/01/2026

The Signal Construct SWQU08024A LED indicator light operates at 24 V DC/AC and is designed for use in control panels and signalling devices. Manufactured by Signal Construct, this red LED light provides clear visual indication, ideal for both industrial and commercial applications. It comes individually packaged in a tray, ensuring protection and organisation during storage and handling.
Type LED indicator light
IP Rating IP67
Case Colour Chrome (glossy)
Colour Red
Connection Type C CEE 7/16 plug 2.8 mm
Head Ø 9.5mm
Material Brass
Material properties chrome plated
Max. operating voltage 28V DC/AC
Max. temperature 70°C
Min. operating voltage 24V DC/AC
Min. temperature -30°C
Moisture Sensitiviy Level (MSL) 1
Operating Current 16mA
Packaging Type Tray
Recess diameter 8mm
