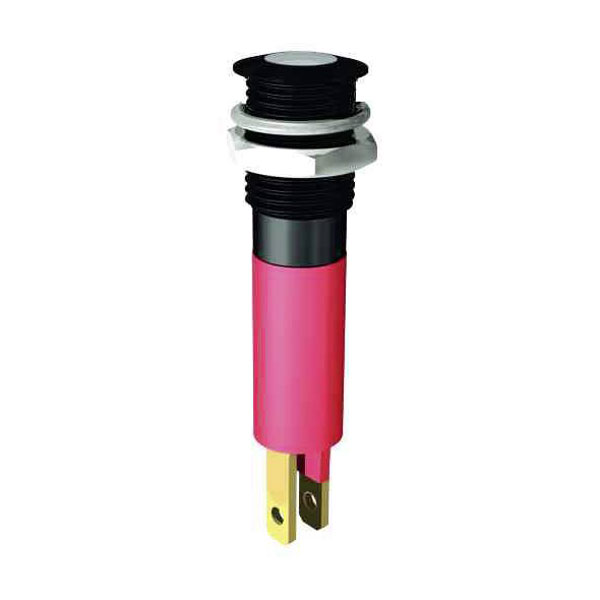

Signal Construct SFEU080245 LED Indicator Red 24V AC/DC 2400 mcd

Signal Construct
Standard range
Order Code:

07-1026

Brand: Signal Construct MPN: SFEU080245
Qty Unit Price (Ex VAT)
1+ £4.76
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
35 in stock, despatched in 4 working days

The Signal Construct SFEU080245 is a red LED indicator light operating at 24 V AC/DC with a brightness of 2400 mcd. It serves as a reliable signal and can be used in control panels and machinery status indicators for visual alerts. This high-efficiency component is suitable for both industrial and commercial applications.
Type LED indicator light
Case colour Black
Connection Type C CEE 7/16 plug 2.8 mm
Energy efficiency rating n.rel.
Factory colour Red
Front panel thickness 7mm
Head height 0.80mm
IP rating IP67 (front)
Length 38.04mm
Lifespan 60000h
Light intensity I(V) 2400mcd
Material Brass
Material properties chrome plated
Max. temperature +75°C
Min. temperature -30°C
Misc Attribute 080245 SFEU
Mounting Type Screw and union
Operating current 12mA
Radiation angle 160°
Recess diameter 8mm
RoHS-compliant Yes
