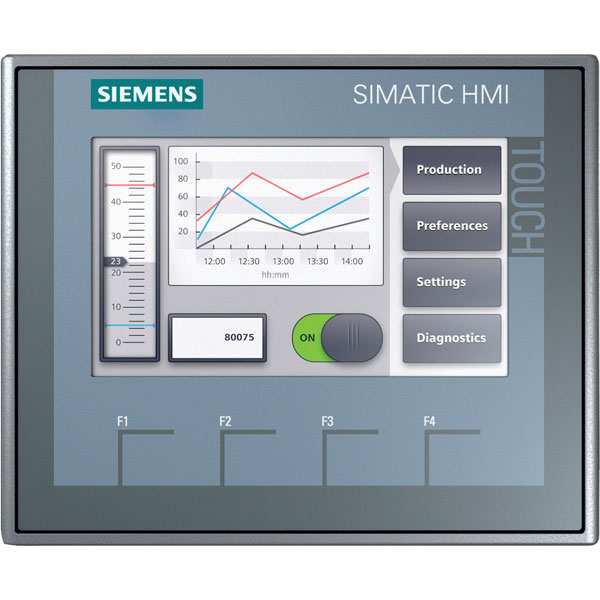

Siemens SIMATIC HMI Touchscreen Displays LED Backlighting

Siemens Brand: Siemens

A range of basic TFT widescreen displays with LED backlighting and touchscreen operation. The displays are intended for use in plant and machinery systems, where their design and performance meet all the requirements for high-quality visualisation, even in small systems.

  • Range of sizes and interfaces
  • Easy configuration with WinCC software
  • Dimmable backlight
  • 24V DC Power supply
  • Onscreen keyboard
Description Image Product Buy Pricing (Ex VAT) Display Resolution Display Size Built-in depth Built-in speaker(s) Certification Colour Dim Dimmable Compliance certificates Country of origin Height of the front DHCP client Display diagonal Display technology Module type Ethernet LAN Input Voltage Number of Digital Inputs Mean time between failures (MTBF) Number of Digital Outputs
Siemens 6AV2123-2DB03-0AX0 SIMATIC HMI KTP400 Basic
Siemens 6AV2123-2DB03-0AX0 SIMATIC HMI KTP400 Basic
Standard range
Order code: 64-8234
MPN: 6AV21232DB030AX0

Despatched within 4 working days - 4 in stock
1+ £425.55
Price per unit Ex VAT 		480 x 272 4.3 in 34.9mm able backlight backlight 116mm Digital 2 2
Siemens 6AV2123-2GA03-0AX0 SIMATIC HMI KTP700 Basic
Siemens 6AV2123-2GA03-0AX0 SIMATIC HMI KTP700 Basic
Extended range
Order code: 64-8235
MPN: 6AV21232GA030AX0

Back order - 58 availableBack-order availability date - 09/06/2026
1+ £1030.12
Price per unit Ex VAT 		800 x 480 7in 39mm Multicolour 158mm 3 3
Siemens 6AV2123-2GB03-0AX0 SIMATIC HMI KTP700 Basic
Siemens 6AV2123-2GB03-0AX0 SIMATIC HMI KTP700 Basic
Standard range
Order code: 64-8236
MPN: 6AV21232GB030AX0

Despatched within 4 working days - 11 in stock
1+ £773.89
Price per unit Ex VAT 		800 x 480 7in 39mm No cULus\nC-TICK\nKC \nIP65 Multicolour CE, REACH, RoHS, WEEE China 158mm Yes 17.8 cm (7) LCD Yes 24 V 2 20000 h 2
Siemens 6AV2123-2MA03-0AX0 SIMATIC HMI KTP1200 Basic
Siemens 6AV2123-2MA03-0AX0 SIMATIC HMI KTP1200 Basic
Extended range
Order code: 64-8238
MPN: 6AV21232MA030AX0

Back order - 49 availableBack-order availability date - 11/06/2026
1+ £2575.97
Price per unit Ex VAT 		1280 x 800 12 in 54.9mm 245mm 3 3
Siemens 6AV2123-2MB03-0AX0 SIMATIC HMI KTP1200 Basic
Siemens 6AV2123-2MB03-0AX0 SIMATIC HMI KTP1200 Basic
Extended range
Order code: 64-8239
MPN: 6AV21232MB030AX0

Back order - 109 availableBack-order availability date - 11/06/2026
1+ £1935.62
Price per unit Ex VAT 		1280 x 800 12 in 54.9mm 245mm 2 2
Order codePart numberSizeResolutionInterface protocol
64-82346AV2123-2DB03-0AX04.3in480 x 272pxProfinet
64-82356AV2123-2GA03-0AX07in800 x 480pxProfibus
64-82366AV2123-2GB03-0AX07in800 x 480pxProfinet
64-82386AV2123-2MA03-0AX012in1280 x 800pxProfibus
64-82396AV2123-2MB03-0AX012in1280 x 800pxProfinet
