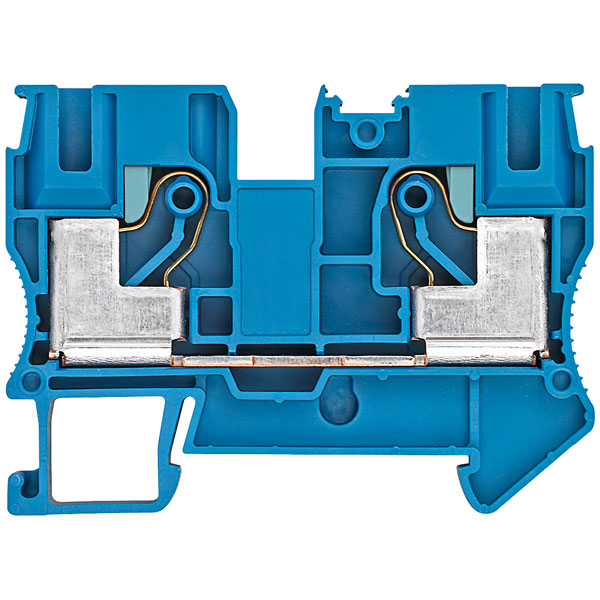

Siemens 8WH60000AJ01 Connector 10.2mm Blue LED 24 V AC/DC Dia 70mm

The Siemens 8WH60000AJ01 is a blue continuity connector measuring 10.2 mm, designed for reliable electrical connections in switchboards. It serves as a serial terminal, ensuring consistent performance in industrial and commercial applications. This connector is typically used in electrical distribution systems for maintaining circuit continuity.

Colour	Blue
Current Rating	57A
Type	Continuity
Number of Ways	2
Voltage Rating	1000V
Clamp width	10.2mm
Closing plate required	TRUE
Connectable conductor cross section fine-strand with cable end sleeve	0.5 - 10mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.5 - 16mm²
Connectable conductor cross section multi-wired	0.5 - 16mm²
Connectable conductor cross section solid-core	0.5 - 16mm²
Connection	Connector
Connection (type)	Connector
Connections	2
Current Rating (A)	57
Depth	49.55mm
Explosion-tested version Ex e	true
Explosion-tested version 'Ex e'	FALSE
Height	67.7mm
Height at lowest possible mounting height	49.5mm
Inflammability class of insulation material according to UL94	V0
Internally connected stages	FALSE
Length	67.5mm
Length (mm)	67.5mm
Material insulation body	Other
Misc Attribute	8WH6000-0AJ01
Mounting method	DIN rail (top hat rail) 35mm
Nominal Current	57 A
Number of clamp positions per level	2
Number of levels	1
Operating Temperature	-60 - 105°C
Package depth	100mm
Package height	690mm
Package width	500mm
Product colour	Multicolour
Product Type	Connector
Quantity per pack	1 pc(s)
Rated current In	57A
Rated voltage	1000V
Stripping length (max.)	18mm
Stripping length (max.) mm	18mm
Suitable for conductor material	N/A
Type of electrical connection 1	Other
Type of electrical connection 2	Other
Voltage Rating (V, V DC)	1000 V
Weight	27g
Width	10.2mm
Width (mm)	10.2
Width/grid dimension	10.2mm
Wire Gauge	0.5mm²
