Siemens 8WH10200AF00 Dual port terminal 5.2mm screw beige 1pc

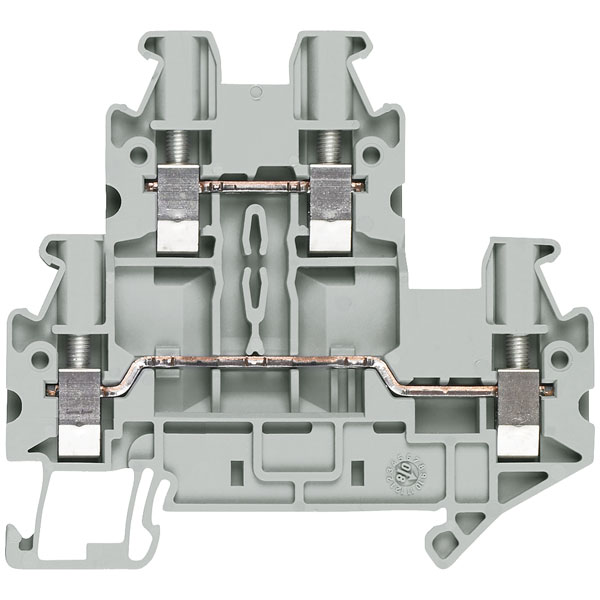

Image Representative of Range

Siemens 8WH10200AF00 Dual port terminal 5.2mm screw beige 1pc

Siemens
Order Code:

07-0905

Brand: Siemens MPN: 8WH10200AF00 EAN-13: 4001869403137
Qty Unit Price (Ex VAT)
1+ £4.98
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack order, lead time 11 days

Siemens manufactures the 8WH10200AF00 dual port terminal featuring 5.2 mm screws in a beige colour, suitable for switchboard applications. This terminal ensures reliable continuity in electrical connections within serial terminals. It is commonly used in electrical distribution panels and control units.
Colour Beige
Current Rating 24A
Type Dual port terminal
Number of Ways 2
Voltage Rating 500V
Clamp width 5.2mm
Closing plate required TRUE
Connection Screws
Connection (type) Screw Terminal
Connections 2
Current Rating (A) 24
Depth 64.35mm
Dim Length 69.9 mm x Width 5.2 mm x Depth 64.35 mm x Height 65 mm
Explosion-tested version 'Ex e' FALSE
Height at lowest possible mounting height 65mm
Inflammability class of insulation material according to UL94 V0
Internally connected stages FALSE
Length 69.9mm
Length (mm) 69.9 mm
Material insulation body Other
Misc Attribute 8WH1020-0AF00
Mounting Method DIN rail (top hat rail) 35 mm
Nominal Current 24 A
Number of clamp positions per level 2
Number of Levels 2
Product Type Terminal Block
Rated current In 24A
Stripping length (max.) 9mm
Stripping length (max.) mm 9 mm
Temperature Range -25 to +55 °C
Type of electrical connection 1 Screw connection
Type of electrical connection 2 Screw connection
Voltage Rating (V, V DC) 500 V
Width (mm) 5.2
Width/grid dimension 5.2mm
Wire Gauge 0.14mm²
