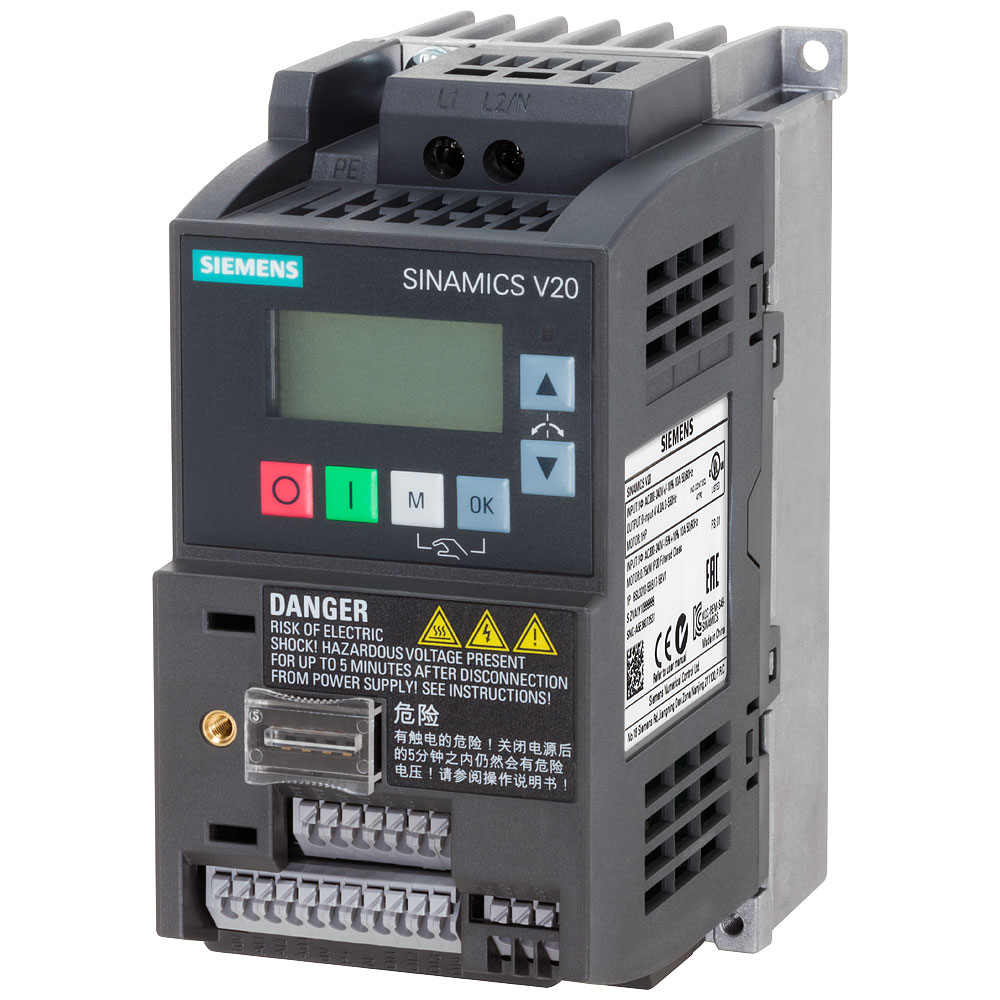

The Siemens Inverter 6SL3210-5BB15-5BV1 is a frequency converter designed for use with motors operating at 0.55 kW and within the voltage range of 200 V to 240 V. It is ideal for applications requiring precise motor control and energy efficiency, such as in HVAC systems and conveyor belts. Siemens, a leading manufacturer in electronic automation technology, ensures high quality and reliability in this product.
| 4-quadrant operation possible |
FALSE |
| Application in domestic- and commercial area permitted |
TRUE |
| Application in industrial area permitted |
TRUE |
| Degree of protection (IP) |
IP20 |
| Depth |
127.8mm |
| Dim |
(W x H x D) 68 x 142 x 127.8 mm |
| Frequency Range |
0 Hz - 550 Hz |
| Height |
142mm |
| Integrated breaking resistance |
FALSE |
| IP Rating |
IP20 |
| Max. frequency |
550Hz |
| Max. output at linear load at rated output voltage |
0.55kW |
| Max. output at quadratic load at rated output voltage |
0.55kW |
| Max. output frequency |
550Hz |
| Max. output voltage |
240V |
| Min. frequency |
0Hz |
| Misc Attribute |
6SL3210-5BB15-5BV1 |
| Nominal Current |
3.2A |
| Nominal output current I2N |
3.2A |
| Number of Analogue Inputs |
2 |
| Number of Analogue Outputs |
1 |
| Number of Digital Inputs |
4 |
| Number of HW-interfaces industrial Ethernet |
0 |
| Number of HW-interfaces other |
1 |
| Number of HW-interfaces parallel |
0 |
| Number of HW-interfaces RS-232 |
1 |
| Number of HW-interfaces RS-422 |
0 |
| Number of HW-interfaces RS-485 |
1 |
| Number of HW-interfaces serial TTY |
0 |
| Number of HW-interfaces USB |
0 |
| Number of interfaces PROFINET |
0 |
| Number of phases input |
1 |
| Number of phases output |
3 |
| Output rating (max.) |
0.55kW |
| Relative symmetric net frequency tolerance |
-5% |
| Relative symmetric net voltage tolerance |
10% |
| Supporting protocol for ASI |
FALSE |
| Supporting protocol for AS-Interface Safety at Work |
FALSE |
| Supporting protocol for CAN |
FALSE |
| Supporting protocol for Data-Highway |
FALSE |
| Supporting protocol for DeviceNet |
FALSE |
| Supporting protocol for DeviceNet Safety |
FALSE |
| Supporting protocol for EtherNet/IP |
FALSE |
| Supporting protocol for Foundation Fieldbus |
FALSE |
| Supporting protocol for INTERBUS |
FALSE |
| Supporting protocol for INTERBUS-Safety |
FALSE |
| Supporting protocol for KNX |
FALSE |
| Supporting protocol for LON |
FALSE |
| Supporting protocol for Modbus |
TRUE |
| Supporting protocol for other bus systems |
TRUE |
| Supporting protocol for PROFIBUS |
FALSE |
| Supporting protocol for PROFINET CBA |
FALSE |
| Supporting protocol for PROFINET IO |
FALSE |
| Supporting protocol for PROFIsafe |
FALSE |
| Supporting protocol for SafetyBUS p |
FALSE |
| Supporting protocol for SERCOS |
FALSE |
| Supporting protocol for SUCONET |
FALSE |
| Supporting protocol for TCP/IP |
FALSE |
| Type |
Inverter |
| Type of converter |
U converter |
| Width |
68mm |
| With optical interface |
FALSE |
| With PC connection |
FALSE |
