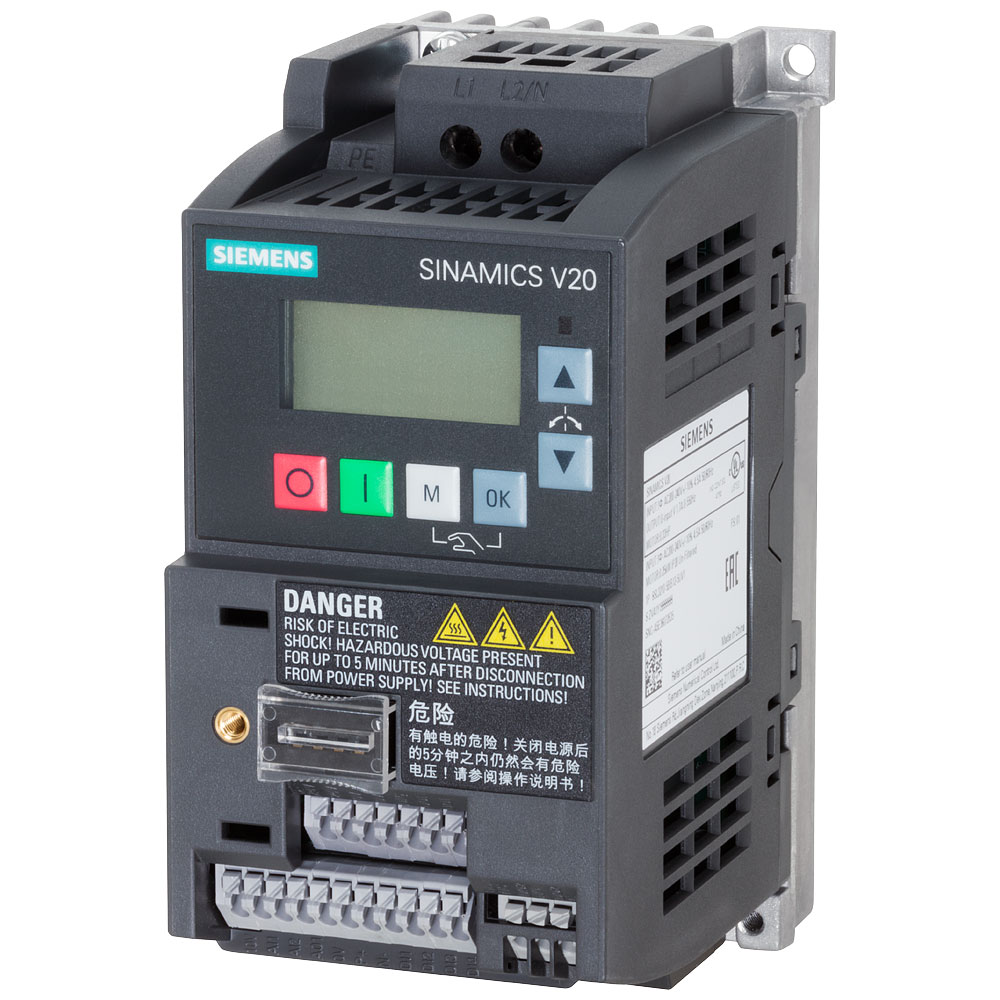

Siemens manufactures the 6SL3210-5BB12-5UV1 frequency inverter, designed to handle 0.25 kW power within a voltage range of 200 V to 240 V. This inverter is ideal for controlling the speed of motors in various industrial applications, offering reliable and efficient performance. Its typical uses include conveyor systems, fans, and pumps, providing precise motor control to enhance energy efficiency.
| Type |
Frequency inverter |
| 4-quadrant operation possible |
FALSE |
| Application in domestic- and commercial area permitted |
TRUE |
| Application in industrial area permitted |
TRUE |
| Degree of protection (IP) |
IP20 |
| Dim |
(W x H x D) 68 x 142 x 107.80 mm |
| Frequency Range |
0 Hz - 550 Hz |
| Height |
142mm |
| Integrated breaking resistance |
FALSE |
| IP rating |
IP20 |
| Manufacturer part # |
6SL32105BB125UV1 |
| Max. frequency |
550Hz |
| Max. output at linear load at rated output voltage |
0.25kW |
| Max. output at quadratic load at rated output voltage |
0.25kW |
| Max. output frequency |
550Hz |
| Max. output voltage |
240V |
| Min. frequency |
0Hz |
| Misc Attribute |
6SL3210-5BB12-5UV1 |
| Nominal current |
1.7A |
| Nominal output current I2N |
1.7A |
| Number of analogue inputs |
2 |
| Number of analogue outputs |
1 |
| Number of digital inputs |
4 |
| Number of HW-interfaces industrial Ethernet |
0 |
| Number of HW-interfaces other |
1 |
| Number of HW-interfaces parallel |
0 |
| Number of HW-interfaces RS-232 |
1 |
| Number of HW-interfaces RS-422 |
0 |
| Number of HW-interfaces RS-485 |
1 |
| Number of HW-interfaces serial TTY |
0 |
| Number of HW-interfaces USB |
0 |
| Number of interfaces PROFINET |
0 |
| Number of phases input |
1 |
| Number of phases output |
3 |
| Output rating (max.) |
0.25kW |
| Relative symmetric net frequency tolerance |
-5% |
| Relative symmetric net voltage tolerance |
10% |
| Supporting protocol for ASI |
FALSE |
| Supporting protocol for AS-Interface Safety at Work |
FALSE |
| Supporting protocol for CAN |
FALSE |
| Supporting protocol for Data-Highway |
FALSE |
| Supporting protocol for DeviceNet |
FALSE |
| Supporting protocol for DeviceNet Safety |
FALSE |
| Supporting protocol for EtherNet/IP |
FALSE |
| Supporting protocol for Foundation Fieldbus |
FALSE |
| Supporting protocol for INTERBUS |
FALSE |
| Supporting protocol for INTERBUS-Safety |
FALSE |
| Supporting protocol for KNX |
FALSE |
| Supporting protocol for LON |
FALSE |
| Supporting protocol for Modbus |
TRUE |
| Supporting protocol for other bus systems |
TRUE |
| Supporting protocol for PROFIBUS |
FALSE |
| Supporting protocol for PROFINET CBA |
FALSE |
| Supporting protocol for PROFINET IO |
FALSE |
| Supporting protocol for PROFIsafe |
FALSE |
| Supporting protocol for SafetyBUS p |
FALSE |
| Supporting protocol for SERCOS |
FALSE |
| Supporting protocol for SUCONET |
FALSE |
| Supporting protocol for TCP/IP |
FALSE |
| Type of converter |
U converter |
| Weight |
1kg |
| Width |
68mm |
| With optical interface |
FALSE |
| With PC connection |
FALSE |
