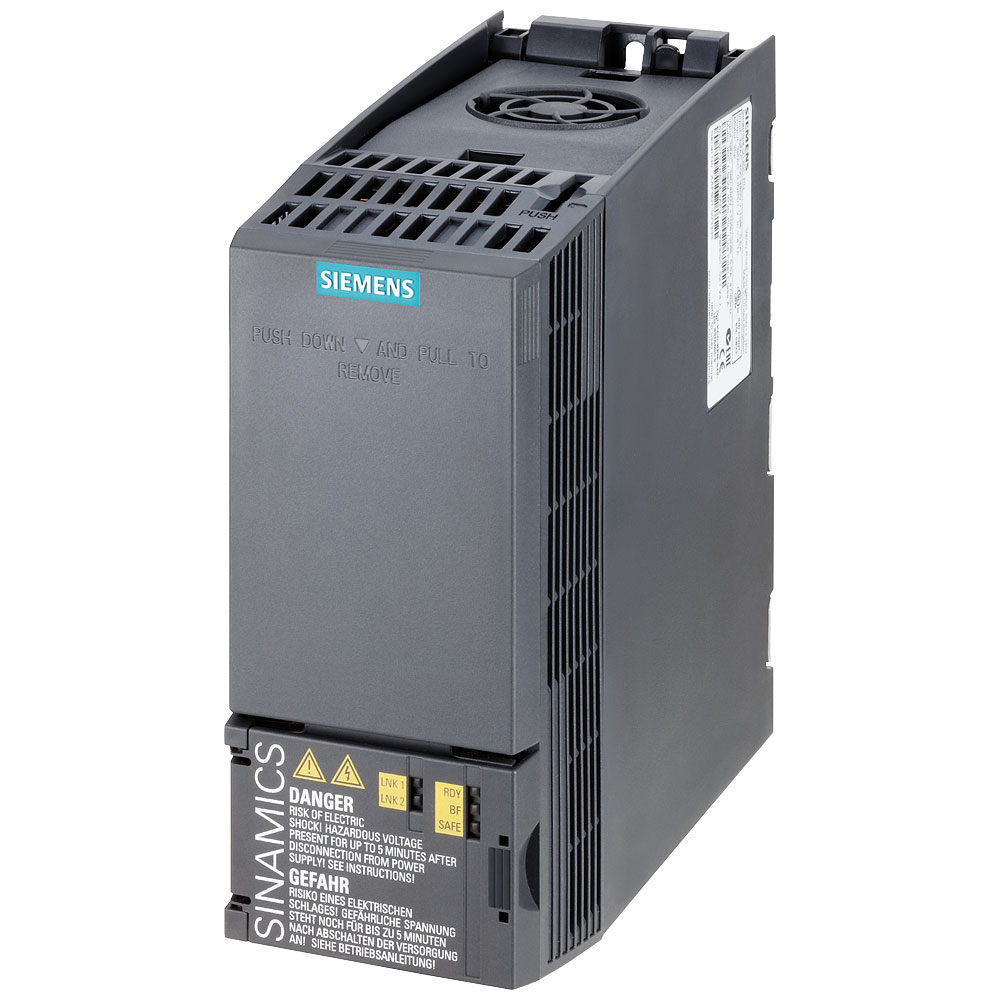

Siemens manufactures the 6SL3210-1KE11-8AF2 frequency inverter, which supports a power rating of 0.37 kW and voltage capacity between 380 V and 480 V. It is designed for precise motor speed and torque control in industrial applications. This frequency converter is typically used in conveyor systems, pumps, and fans.
| Type |
Frequency inverter |
| 4-quadrant operation possible |
FALSE |
| Application in domestic- and commercial area permitted |
FALSE |
| Application in industrial area permitted |
TRUE |
| Degree of protection (IP) |
IP20 |
| Depth |
178mm |
| Dim |
(W x H x D) 73 x 173 x 178 mm |
| Frequency Range |
0 Hz - 550 Hz |
| Height |
173mm |
| Integrated breaking resistance |
TRUE |
| IP rating |
IP20 |
| Manufacturer part # |
6SL32101KE118AF2 |
| Max. frequency |
550Hz |
| Max. output at linear load at rated output voltage |
0.37kW |
| Max. output at quadratic load at rated output voltage |
0.55kW |
| Max. output frequency |
550Hz |
| Max. output voltage |
480V |
| Min. frequency |
0Hz |
| Misc Attribute |
6SL3210-1KE11-8AF2 |
| Nominal current |
1.8A |
| Nominal output current I2N |
1.8A |
| Number of analogue inputs |
1 |
| Number of analogue outputs |
1 |
| Number of digital inputs |
6 |
| Number of digital outputs |
2 |
| Number of HW-interfaces industrial Ethernet |
2 |
| Number of HW-interfaces other |
6 |
| Number of HW-interfaces parallel |
0 |
| Number of HW-interfaces RS-232 |
1 |
| Number of HW-interfaces RS-422 |
0 |
| Number of HW-interfaces RS-485 |
0 |
| Number of HW-interfaces serial TTY |
1 |
| Number of HW-interfaces USB |
1 |
| Number of interfaces PROFINET |
2 |
| Number of phases input |
3 |
| Number of phases output |
3 |
| Output rating (max.) |
0.37kW |
| Relative symmetric net frequency tolerance |
5% |
| Relative symmetric net voltage tolerance |
10% |
| Supporting protocol for ASI |
FALSE |
| Supporting protocol for AS-Interface Safety at Work |
FALSE |
| Supporting protocol for CAN |
FALSE |
| Supporting protocol for Data-Highway |
FALSE |
| Supporting protocol for DeviceNet |
FALSE |
| Supporting protocol for DeviceNet Safety |
FALSE |
| Supporting protocol for EtherNet/IP |
TRUE |
| Supporting protocol for Foundation Fieldbus |
FALSE |
| Supporting protocol for INTERBUS |
FALSE |
| Supporting protocol for INTERBUS-Safety |
FALSE |
| Supporting protocol for KNX |
FALSE |
| Supporting protocol for LON |
FALSE |
| Supporting protocol for Modbus |
FALSE |
| Supporting protocol for other bus systems |
TRUE |
| Supporting protocol for PROFIBUS |
FALSE |
| Supporting protocol for PROFINET CBA |
FALSE |
| Supporting protocol for PROFINET IO |
TRUE |
| Supporting protocol for PROFIsafe |
TRUE |
| Supporting protocol for SafetyBUS p |
FALSE |
| Supporting protocol for SERCOS |
FALSE |
| Supporting protocol for SUCONET |
FALSE |
| Supporting protocol for TCP/IP |
FALSE |
| Type of converter |
U converter |
| Weight |
1.6kg |
| Width |
73mm |
| With optical interface |
FALSE |
| With PC connection |
TRUE |
