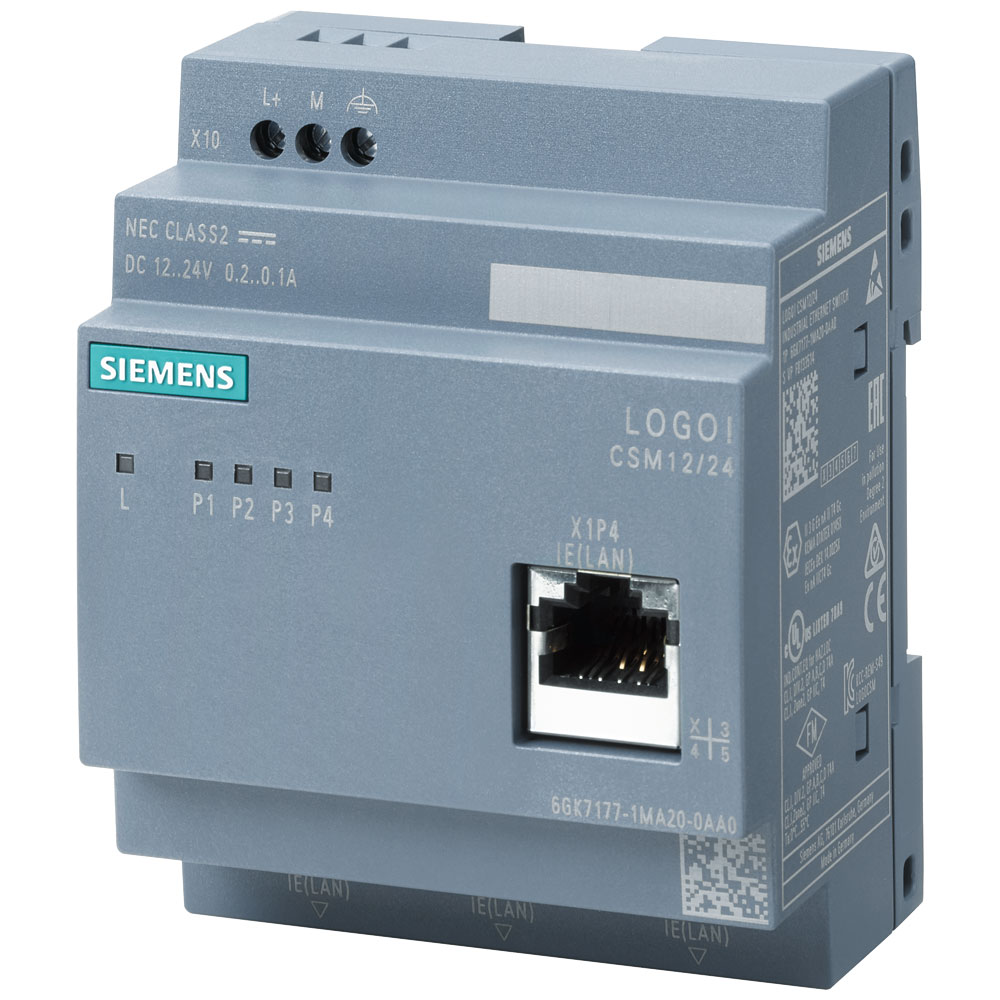

Siemens 6GK71771MA200AA0 LOGO! CSM Ethernet Switch 4 Ports 100 MBit/s

The Siemens LOGO! CSM 12/24 is an Industrial Ethernet switch offering 100 MBit/s data transfer. As a versatile network switch, it features Profinet Profibus compatibility and functions effectively as a network hub or LAN splitter. This product is typically used in industrial automation environments to enable efficient network changeover and connectivity.

Type	Industrial Ethernet switch
Compatible with Grade2TV according to XP-C 90-483	N/A
Compatible with Grade3TV according to XP-C 90-483	N/A
Current Consumption	150mA
Degree of protection (IP)	IP20
Depth	58.2mm
Ethernet	N/A
Ethernet ports	4
Factory colour	Grey
Fibre-optic ports	0
Height	90mm
IP Rating	IP20
Layer 2	N/A
Layer 3	N/A
Manageable	false
Max. ambient temperature	+55°C
Max. PoE power	N/A
Max. power consumption	N/A
Min. ambient temperature	0°C
Misc Attribute	LOGO! CSM 12/24
Mounting method	N/A
Number of combination-ports RJ45/Mini GBIC	N/A
Number of max. stackable switches	N/A
Number of module slots	N/A
Number of other ports	N/A
Number of ports 10 Gbps Mini GBIC	N/A
Number of ports 10 Gbps RJ45	N/A
Number of ports 10/100 Mbps M12	N/A
Number of ports 10/100 Mbps RJ45	N/A
Number of ports 10/100/1000 Mbps RJ45	N/A
Number of ports 100 Gbps Mini GBIC	N/A
Number of ports 100 Mbps POF	N/A
Number of ports 100 Mbps SC	0
Number of ports 100 Mbps ST	N/A
Number of ports 100/1000 Mbps Mini GBIC	N/A
Number of ports 1000 Mbps GBIC	N/A
Number of ports 1000 Mbps Mini GBIC	N/A
Number of ports 1000 Mbps POF	N/A
Number of ports 1000 Mbps RJ45	N/A
Number of ports 1000 Mbps SC (LX)	N/A
Number of ports 1000 Mbps SC (SX)	N/A
Number of ports 40 Gbps Mini GBIC	N/A
Number of ports PoE	N/A
Port Type	10/100 Mbit/s RJ45
Power over Ethernet (PoE)	N/A
Redundant power supply	N/A
Transfer Rate	100 MBit/s
Weight	150g
Width	71.5mm
Working principle	Unmanaged switch
