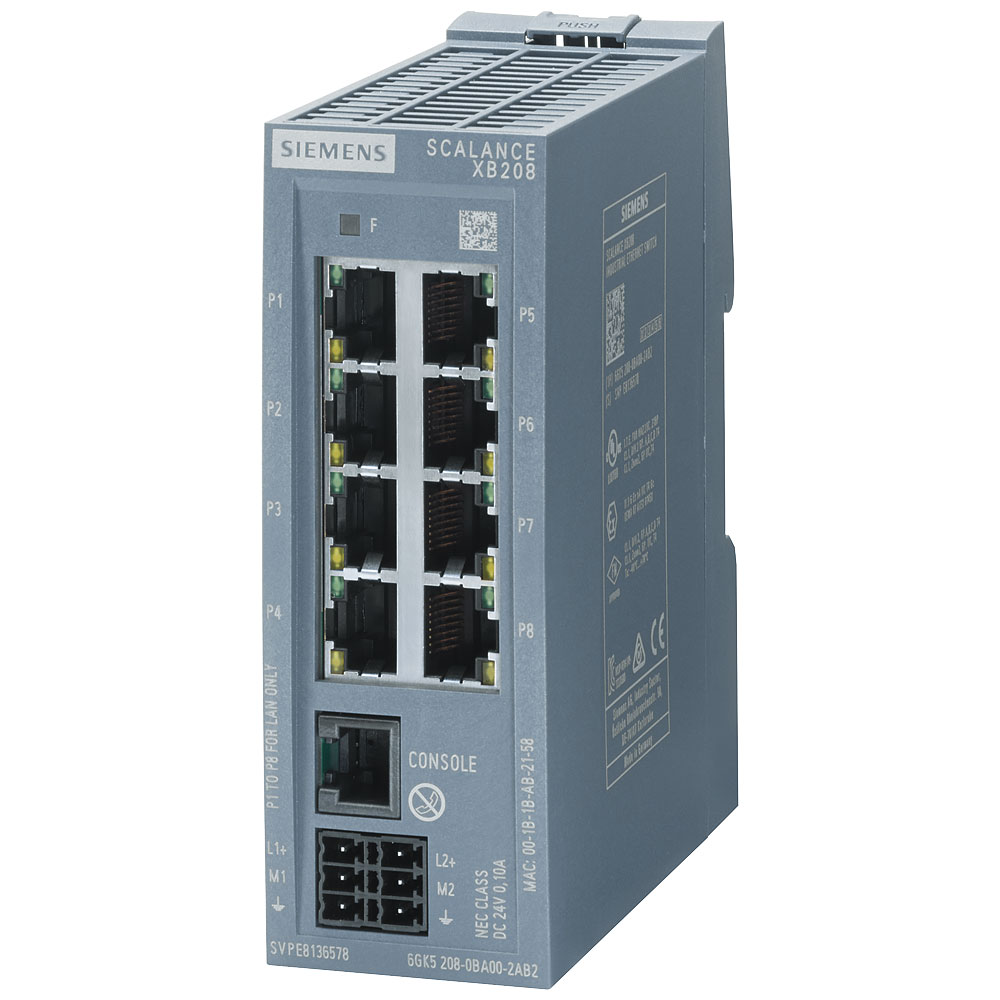

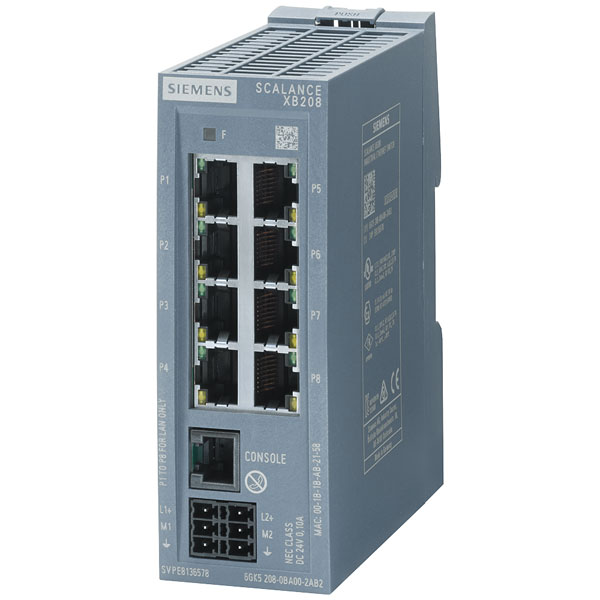

The Siemens 6GK5208-0BA00-2AB2 is a network switch designed for reliable data transfer at 10/100 Mbit/s. This empty chassis unit functions effectively as a LAN splitter, making it ideal for network changeover and expansion tasks. Typical applications include small to medium-sized office settings where network management and flexibility are critical.
| Type |
Network switch |
| 10/100 Mbps ports |
8 |
| Compatible with Grade2TV according to XP-C 90-483 |
N/A |
| Compatible with Grade3TV according to XP-C 90-483 |
N/A |
| Degree of protection (IP) |
IP20 |
| Depth |
109mm |
| Ethernet |
TRUE |
| Height |
117mm |
| Interfaces |
RJ45 |
| IP Rating |
IP20 |
| Layer 2 |
TRUE |
| Layer 3 |
FALSE |
| Manageable |
TRUE |
| Max. ambient temperature |
+60°C |
| Max. PoE power |
N/A |
| Max. power consumption |
N/A |
| Min. ambient temperature |
0°C |
| Misc Attribute |
6GK5208-0BA00-2AB2 |
| Mounting method |
DIN rail (top hat rail) |
| Number of combination-ports RJ45/Mini GBIC |
0 |
| Number of max. stackable switches |
0 |
| Number of module slots |
0 |
| Number of other ports |
0 |
| Number of ports 10 Gbps Mini GBIC |
0 |
| Number of ports 10 Gbps RJ45 |
0 |
| Number of ports 10/100 Mbps M12 |
0 |
| Number of ports 10/100 Mbps RJ45 |
8 |
| Number of ports 10/100/1000 Mbps RJ45 |
0 |
| Number of ports 100 Gbps Mini GBIC |
0 |
| Number of ports 100 Mbps POF |
0 |
| Number of ports 100 Mbps SC |
N/A |
| Number of ports 100 Mbps ST |
N/A |
| Number of ports 100/1000 Mbps Mini GBIC |
N/A |
| Number of ports 1000 Mbps GBIC |
0 |
| Number of ports 1000 Mbps Mini GBIC |
0 |
| Number of ports 1000 Mbps POF |
N/A |
| Number of ports 1000 Mbps RJ45 |
0 |
| Number of ports 1000 Mbps SC (LX) |
0 |
| Number of ports 1000 Mbps SC (SX) |
0 |
| Number of ports 40 Gbps Mini GBIC |
0 |
| Number of ports PoE |
N/A |
| Power over Ethernet (PoE) |
N/A |
| Redundant power supply |
N/A |
| Transfer Rate |
10 / 100 MBit/s |
| Weight |
0.25kg |
| Width |
40mm |
| Working principle |
Managed switch |
