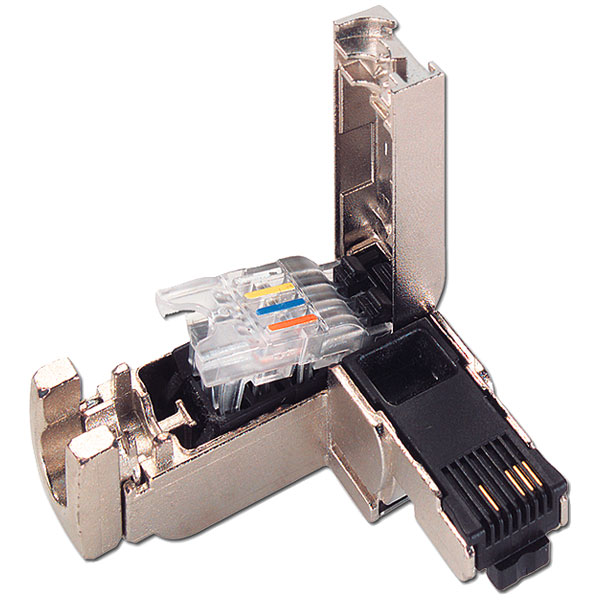

The Siemens 6GK1901-1BB20-2AE0 is an RJ45 connector with a 90-degree angle, suitable for efficient network connections. Designed for Cat 5, Cat 6, and Cat 7 cables, it features a reliable four-pin configuration, ideal for Ethernet applications. Typically used in industrial or professional networking setups, this connector ensures robust and efficient data transmission.
| Type |
RJ45 Plug |
| Gender |
Plug |
| Shielded/Shrouded |
Unshielded |
| Number of Positions/ Contacts |
4 |
| Ambient temperature |
-40 - 85°C |
| AWG (min.) |
24 |
| AWG max. |
24 |
| Coating housing |
N/A |
| Connectable conductor cross section fine-strand with cable end sleeve |
N/A |
| Connectable conductor cross section fine-strand without cable end sleeve |
N/A |
| Connectable conductor cross section multi-wired |
N/A |
| Connectable conductor cross section solid-core |
N/A |
| Contact Type |
N/A |
| Degree of protection (IP), mounted |
IP20 |
| Depth |
42mm |
| EMC-version |
N/A |
| Height |
16mm |
| Housing Material |
Other |
| Impact strength |
N/A |
| Inflammability class of insulation material according to UL94 |
N/A |
| Material contact |
N/A |
| Material insulation body |
N/A |
| Material of contact surface |
N/A |
| Max. temperature |
+85°C |
| Min. temperature |
-40°C |
| Misc Attribute |
6GK1901-1BB20-2AE0 |
| Mounting method |
N/A |
| Number of conduit inlets |
N/A |
| Number of Pins |
4 |
| Number of plug-in contact rows |
N/A |
| Number of Poles |
N/A |
| Operating Temperature |
-40 - 85°C |
| Overvoltage category |
N/A |
| Package depth |
5.7mm |
| Package height |
18.5mm |
| Package width |
14mm |
| Pollution degree |
N/A |
| Position cable feed |
N/A |
| Rated current In |
N/A |
| Rated Surge Voltage |
N/A |
| Rated voltage |
N/A |
| Specification |
CAT 5 |
| Standards |
UL · cULus |
| Type of electric connection |
N/A |
| Type of locking |
Other |
| Weight |
1.5 kg |
| Width |
13.7 |
| With protective conductor |
N/A |
| With sealing |
N/A |
