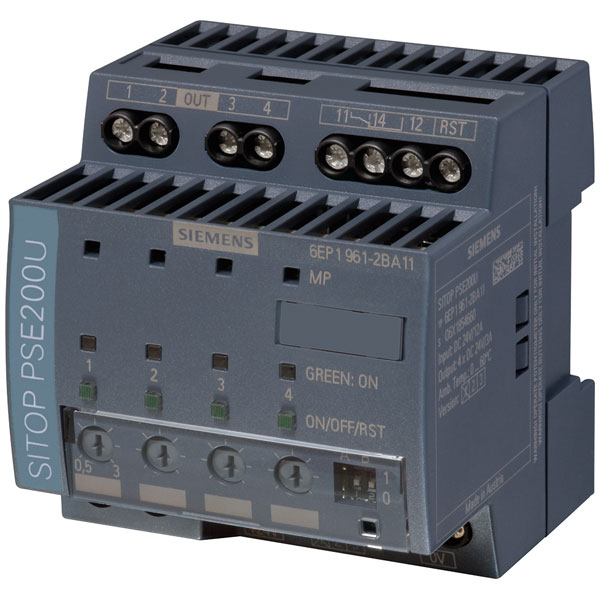

The Siemens 6EP1961-2BA11 is a SITOP Electronic Selectivity Module from the PSE200U Range. The built-in module is for mounting on standard rail DIN EN 60715-35x7.5/15. The 6EP1961-2BA11 has been designed to be connected to stabilised 24V DC power supplies with an output current up to 3A.
The SITOP allows the 24V DC output voltage generated by a stabilised power supply to be split between four load circuits. The rated current for each output can be set individually with a potentiometer to the required range. If the rated current is exceeded for a certain time, the output will be switched off automatically and can be switched on after a waiting time using the modules pushbutton or the remote reset. The pushbutton can also be used to switch the output manually.
Siemens SITOP 3A Electronic Selectivity Module 6EP1961-2BA31 (order code 55-8100) displays a status message per channel.
- Operating voltage: 24V DC
- Adjustable output current: 0.5 to 3A
- With status message: No
- Number of channels: 4
- Output voltage setting: via Potentionmeter
- Protection class: Class III
- Operating temperature: 0°C to 60°C
- Connection: Screw type terminals
- Dimensions: 72(W) x 80(H) x 72(D)mm
- Specification: PSE200U Selectivity Module
- Manufacturer's part: Siemens 6EP1961-2BA11 SITOP
| Type |
Add-on module |
| Display |
No |
| Number of Analogue Inputs |
0 |
| Number of Analogue Outputs |
0 |
| Number of Digital Inputs |
4 |
| Number of Digital Outputs |
4 |
| Operating Voltage |
24V DCV |
