Siemens 6ED1052-2MD08-0BA2 LOGO! Controller 12/24V DC cloud-ready modular

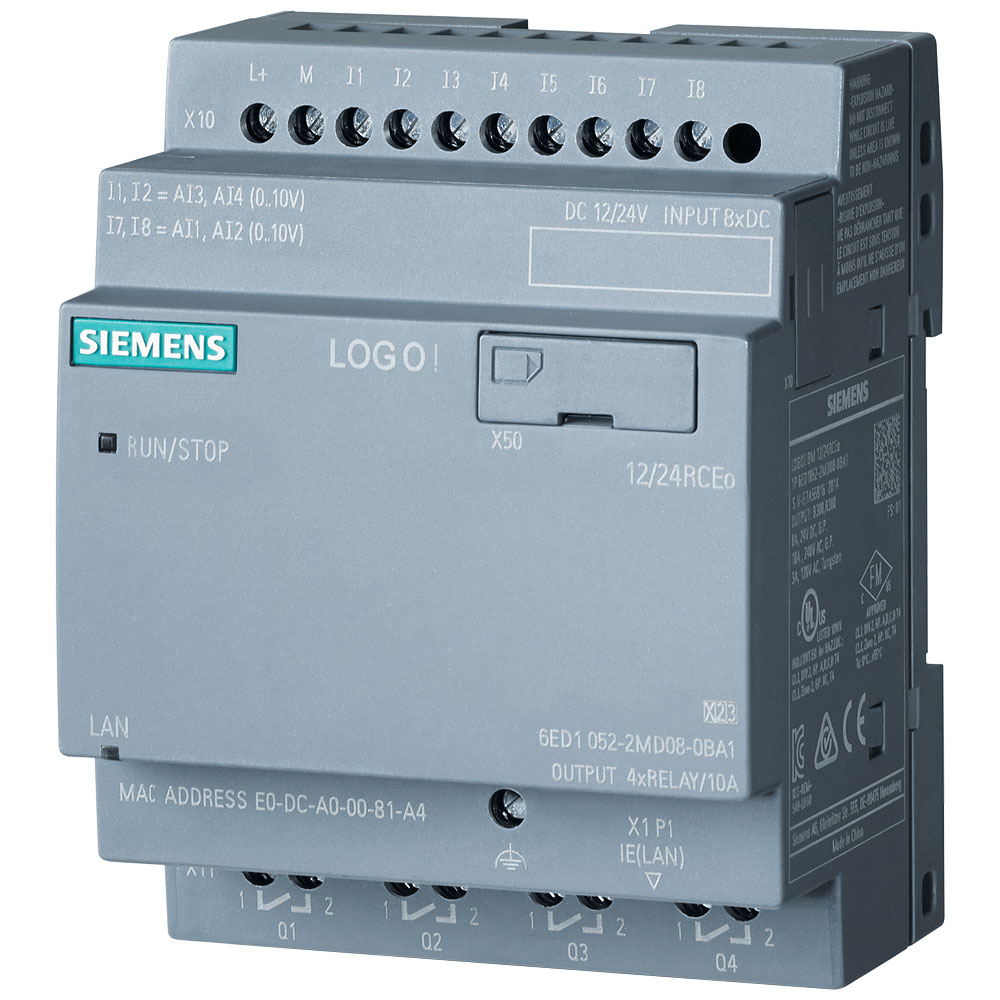

Image Representative of Range

Siemens 6ED1052-2MD08-0BA2 LOGO! Controller 12/24V DC cloud-ready modular

Siemens
Order Code:

07-0649

Brand: Siemens MPN: 6ED10522MD080BA2 EAN-13: 4034106034481
Qty Unit Price (Ex VAT)
1+ £127.22
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
64 in stock, despatched in 3 working days

The Siemens 6ED1052-2MD08-0BA2 is a versatile PLC controller designed for use with both 12 V DC and 24 V DC power supplies. It features advanced logic control and is ideal for automation in small to medium industrial applications. Typically, it is used in machinery control, building management systems, and process monitoring.
Type PLC controller
Certification UL approval. · FM-approved · VDE 0631 · IEC 61131
Degree of protection (IP) IP20
Depth 58mm
Dim (L x W) 90 mm x 71.50 mm
Display No
Explosion safety category for dust None
Explosion safety category for gas None
Fitting type (details) On top hat rail 35 mm, 4 division units wide
Height 90mm
Interference suppression Conforms to EN 55 011 (limiting value class B)
Length 90mm
Max. ambient temperature +55°C
Max. operating voltage 28.8V DC
Min. ambient temperature -20°C
Min. operating voltage 10.8V DC
Misc Attribute 6ED1052-2MD08-0BA2
Number of Analogue Inputs 4
Number of Analogue Outputs 0
Number of Digital Inputs 8
Number of Digital Outputs 4
Number of HW-interfaces industrial Ethernet 1
Number of HW-interfaces other 0
Number of HW-interfaces parallel 0
Number of HW-interfaces RS-232 0
Number of HW-interfaces RS-422 0
Number of HW-interfaces RS-485 0
Number of HW-interfaces serial TTY 0
Number of HW-interfaces USB 0
Number of HW-interfaces wireless 0
Number of inputs (max.) 8
Number of interfaces PROFINET 0
Number of outputs (max.) 4
Number of relay outputs (max.) 4
Operating Voltage 10.8 - 28.8 V DC
Power backup type 480h
Switching Current 10A
Timer Yes
Voltage type (supply voltage) DC
