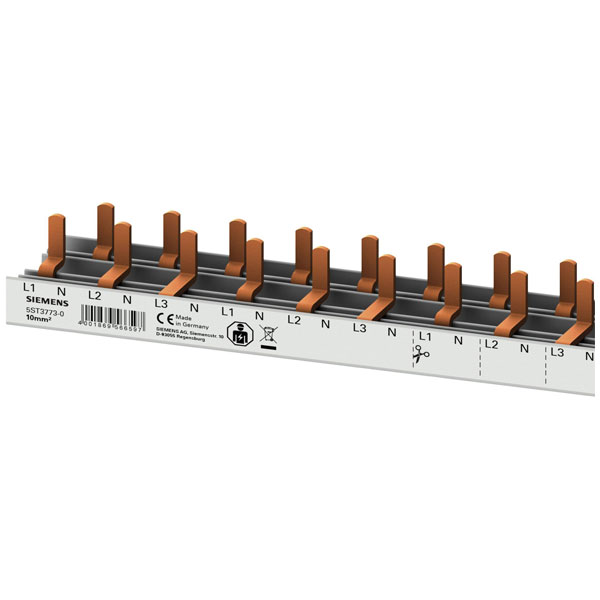

Siemens 5ST37730 Busbar 3 rows 10mm² 63 A 230 V compact cuttable

Siemens manufactures the 5ST37730 Busbar, which features three rows and supports 10 mm² conductors at a capacity of 63 A with 230 V. It is designed as a type L/L/L/N conductor, enhancing its applicability in electrical distribution boards. This busbar is typically used in electrical systems for efficient power distribution and safe circuit connections.

Type	Busbar
Can be cut to size	N/A
Colour	N/A
Conditioned rated short-circuit current Iq	N/A
Cross Section	10mm²
Dim	(L x W x H) 1060 x 40.8 x 13 mm
Height	13mm
Insulated	TRUE
Length	1060mm
Max. rated operation voltage Ue	230V
Misc Attribute	10 mm², 3p+N, 60TE, 12x compact, can be cut
Module Width	18
Nominal Current	63A
Nominal current - rounded value	63A
Nominal Voltage	230V
Number of modular spacings	60
Number of partitions	12
Number of Phases	3
Number of Pins	60
Number of Poles	3
Number of Rows	3
Rated permanent current Iu	N/A
Rated short-time withstand current lcw	N/A
Rated Surge Voltage	N/A
Suitable for devices with auxiliary switch	FALSE
Suitable for devices with N-conductor	TRUE
Suitable for number of devices	60
Type of electric connection	Pin
Weight	0
Width	40.8mm
Width in number of modular spacings	60
