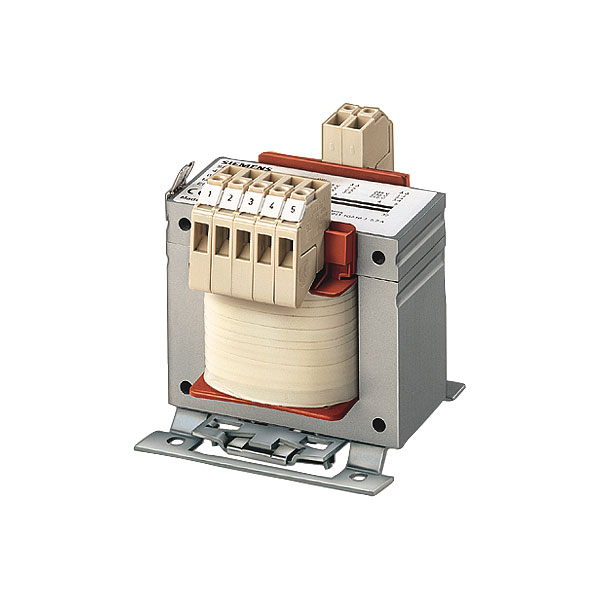

Siemens 4AM32425FT100FA0 Autotransformer 1Ph 63VA 525V IP00 Screw Connection

The Siemens 4AM32425FT100FA0 autotransformer is a universal transformer designed to convert input voltages of 525 V, 500 V, or 475 V down to 230 V with a power rating of 63 VA. It is commonly used in automation and safety applications that require reliable voltage regulation. Siemens is known for its high-quality power transformers, ensuring safety and efficiency in various industrial and commercial settings.

Type	Autotransformer
Built as energy saving transformer	FALSE
Built as isolating transformer	FALSE
Built as safety transformer	FALSE
Conductor Material	Other
Degree of protection (IP)	IP00
Depth	90mm
Design Type	EI 84/28
Dim	(L x W x H) 90 x 86 x 98 mm
Efficiency	0.85%
Frequency	50-60Hz
Height	98mm
Input voltage (number x voltage)	1 x 525 V, 500 V, 475 V
Length	90mm
Max. ambient temperature	+40°C
Misc Attribute	4AM3242-5FT10-0FA0
Number of Inputs	1
Number of Outputs	1
Output Voltage	230V
Output voltage (number x voltage)	1 x 230 V
Power	63VA
Power consumption in standby mode	N/A
Primary voltage 1	525 - 525V
Primary voltage 10	N/A
Primary voltage 2	500 - 500V
Primary voltage 3	475 - 475V
Primary voltage 4	N/A
Primary voltage 5	N/A
Primary voltage 6	N/A
Primary voltage 7	N/A
Primary voltage 8	N/A
Primary voltage 9	N/A
Protection Class	IP00
Rated apparent power	63VA
Rated power	63W
Relative short circuit voltage	8.4%
Ring core	N/A
Secondary voltage 1	230 - 230V
Secondary voltage 10	N/A
Secondary voltage 2	N/A
Secondary voltage 3	N/A
Secondary voltage 4	N/A
Secondary voltage 5	N/A
Secondary voltage 6	N/A
Secondary voltage 7	N/A
Secondary voltage 8	N/A
Secondary voltage 9	N/A
Short-circuit-proof	FALSE
Suitable for distribution board	false
Suitable for mounting on PCB	false
Type of insulation material according to IEC 85	B
Width	86mm
