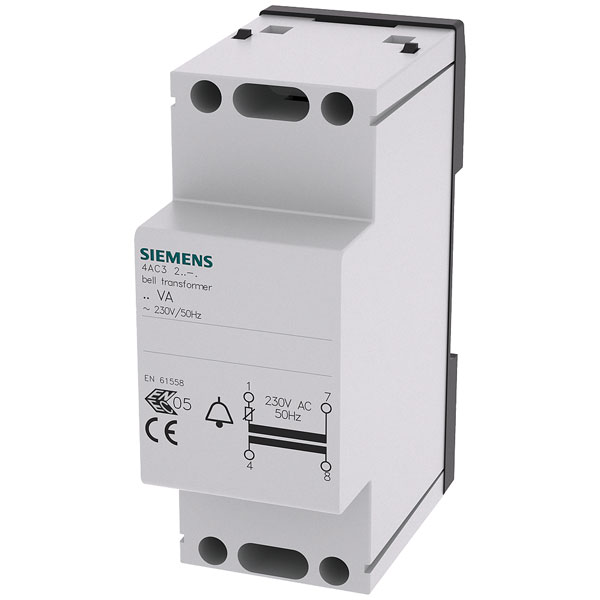

Siemens 4AC32140 bell transformer 8V/12V/24V AC 2A PTC Fuse protection

The Siemens 4AC32140 Bell transformer offers selectable output voltages of 8 V, 12 V, or 24 V with a 2 A current rating. It is commonly used in doorbell and chime installations for reliable voltage transformation. Siemens ensures robust performance and durability for residential and commercial applications.

Type	Bell transformer
Dimensions	(L x W x H) 90 x 36 x 64 mm
Flush-mounted installation	false
Height	64mm
Length	90mm
Max. nominal current	2A
Max. output current	2A
Max. output power	14W
Max. power loss	10.5W
Mounting Type	DIN rail
Package depth	35mm
Package height	70mm
Package width	90mm
Primary Voltage	230V
Secondary amperage 1	2A
Secondary amperage 2	1.3A
Secondary amperage 3	0.6A
Secondary voltage 1	8V
Secondary voltage 2	12V
Secondary voltage 3	24V
Short-circuit protected	TRUE
Suitable for distribution board	TRUE
Supply Voltage	230V
Surface mounting	false
Temperature protection	TRUE
Type of transformer	Standard bell ringing transformer
Weight	397g
Width	36mm
Width in number of modular spacings	2
With on/off switch	FALSE
