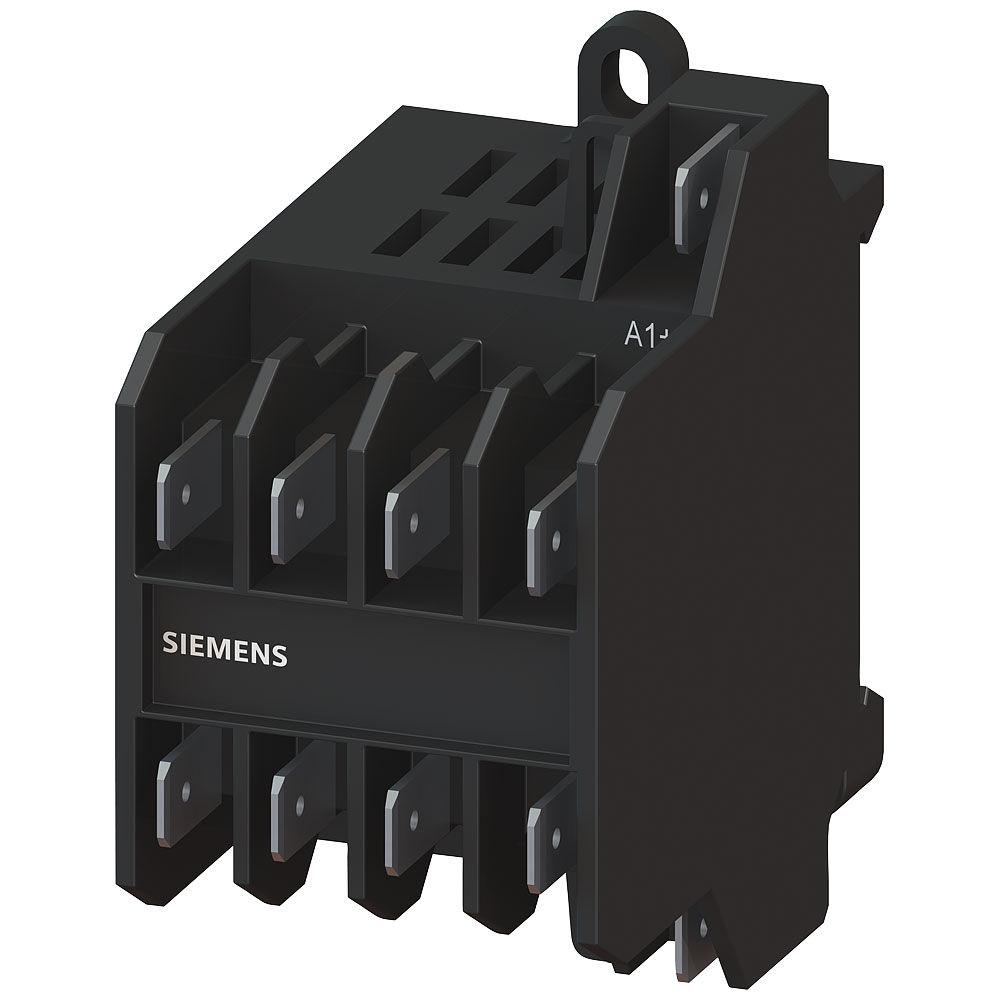

Siemens 3TG10101AL2 Magnetic starter 4kW 1 piece for motor control application

Siemens 3TG10101AL2 is a magnetic starter designed for effective control and operational reliability in electrical circuits. With its circular contacts, it efficiently manages electrical loads, supporting motor control applications up to 4 kW. This device is particularly suitable for industrial automation systems where precision in start-stop processes is required. Typical applications for the Siemens 3TG10101AL2 include conveyor systems, HVAC units, and pumps, where it ensures smooth and consistent operational performance. Its robust construction and compatibility with various industrial environments make it a reliable choice for engineers seeking dependable motor control solutions.

Type	3TG10101AL2
Connection	CEE 7/16 CEE plug
Contact Type	4 makers
Content	1
Control voltage (max.)	230V AC
Control voltage (min.)	230V AC
Control voltage range	230 - 230 V AC
Depth	61mm
Dimensions	(W x H x D) 36 x 62 x 61 mm
Height	62mm
IP Rating	IP00
Maximum Temperature	+55°C
Min. temperature	-25°C
No. of pins	4-pin
Number of auxiliary contacts as normally closed contact	0
Number of auxiliary contacts as normally open contact	1
Number of normally closed contacts as main contact	0
Number of normally open contacts as main contact	3
Operating voltage AC 50 Hz	N/A
Operating voltage AC 60 Hz	N/A
Power	4kW
Product Type	Magnetic starter
Rated control supply voltage AC 50 Hz	230 - 230V
Rated control supply voltage AC 60 Hz	230 - 230V
Rated control supply voltage DC	N/A
Rated operation current Ie at AC-1, 400 V	16A
Rated operation current Ie at AC-3, 400 V	8.4A
Rated operation current Ie at AC-4, 400 V	N/A
Rated operation power at AC-3, 400 V	4kW
Rated operation power at AC-4, 400 V	N/A
Rated operation power NEMA	3.67749375kW
Suitable for distribution board	true
Type of electrical connection of main circuit	N/A
Voltage type for actuating	AC
Width	36mm
