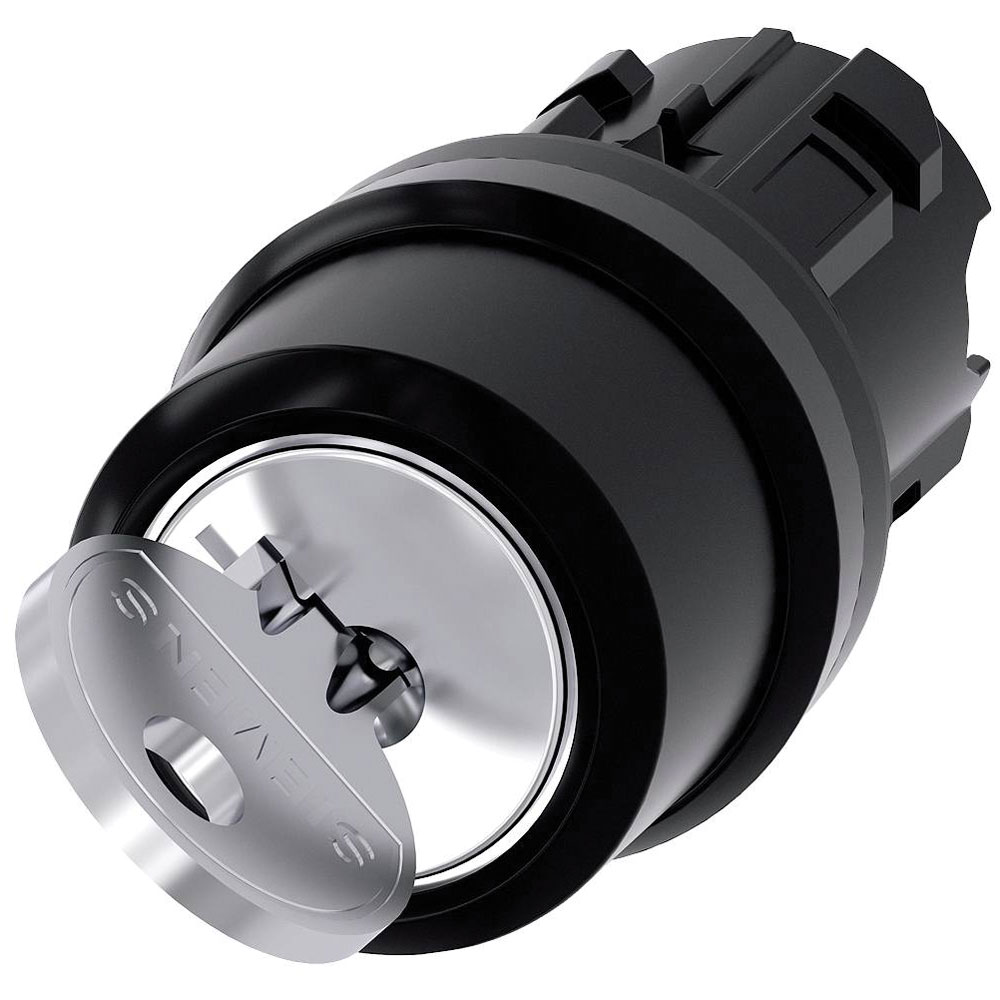

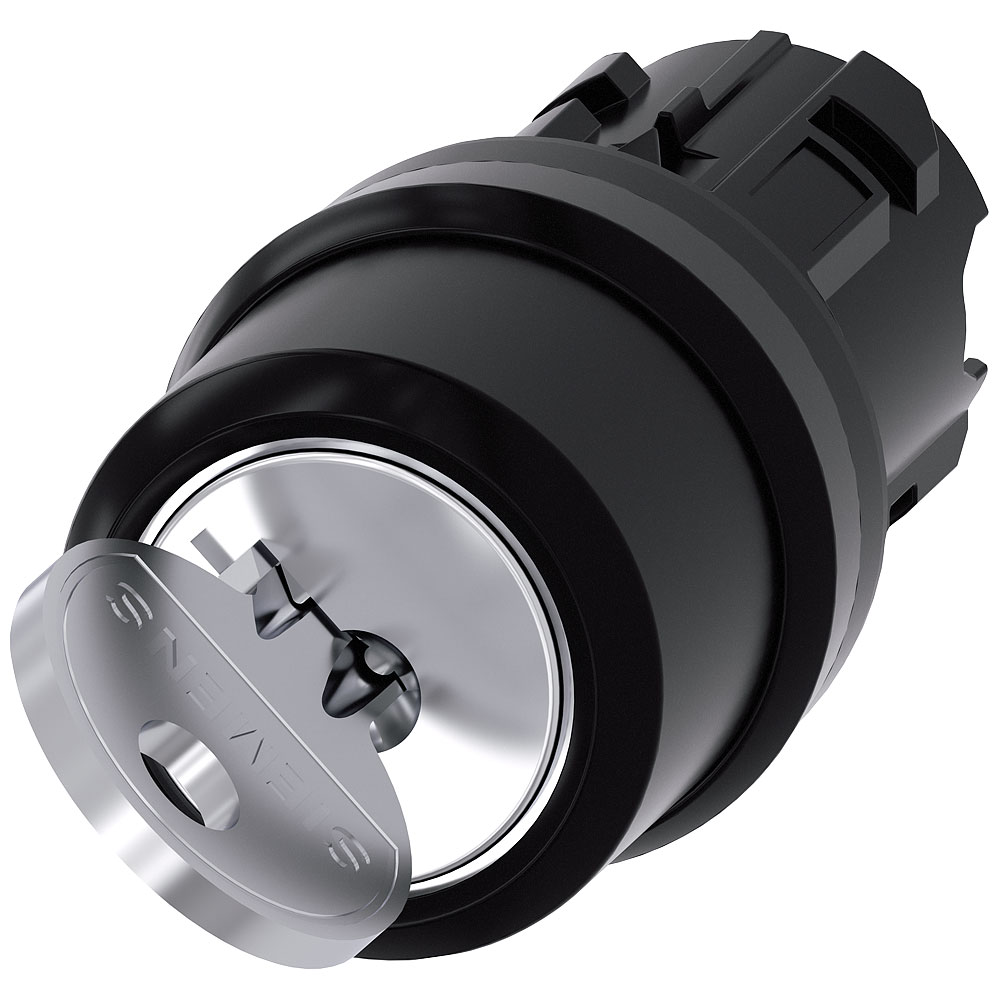

Siemens 3SU10004BF010AA0 key Switch red IP69K 40mm EN ISO 13850

The Siemens key switch, model 3SU10004BF010AA0, is designed for robust industrial use, offering a 1 x 90° rotation with IP66, IP67, and IP69/IP69K protection ratings. It is suitable for controlling access and operations in machinery and secure areas due to its durable construction. This switch is ideal for applications requiring reliable environmental resistance and secure operation.

Type	Key switch
(Ø)	29.5mm
Colour control element	Silver
Colour front ring	Black
Colour indicator light cap	N/A
Construction type lens	Rectangular
Degree of protection (IP), front side	IP67/IP69K
Degree of protection (NEMA)	N/A
Durability	1000000
Functions	latch
Height	29.5mm
Height opening	49.4mm
Hole Diameter	22.3mm
IP Rating	IP67/IP69K
Material front ring	Plastic
Maximum Temperature	+70°C
Min. temperature	-25°C
Misc Attribute	3SU1000-4BF01-0AA0
Number of Switch Positions	2
Recess Diameter	22.3mm
Shape	Round
Size/ Dimensions	(Ø x H) 29.5 mm x 29.5 mm
Spring-return	FALSE
Suitable for lighting	FALSE
Switching angle	1 x 90 °
Switching function latching	TRUE
Type of control element	Other
Width	29.5mm
Width opening	29.5mm
With front ring	TRUE
