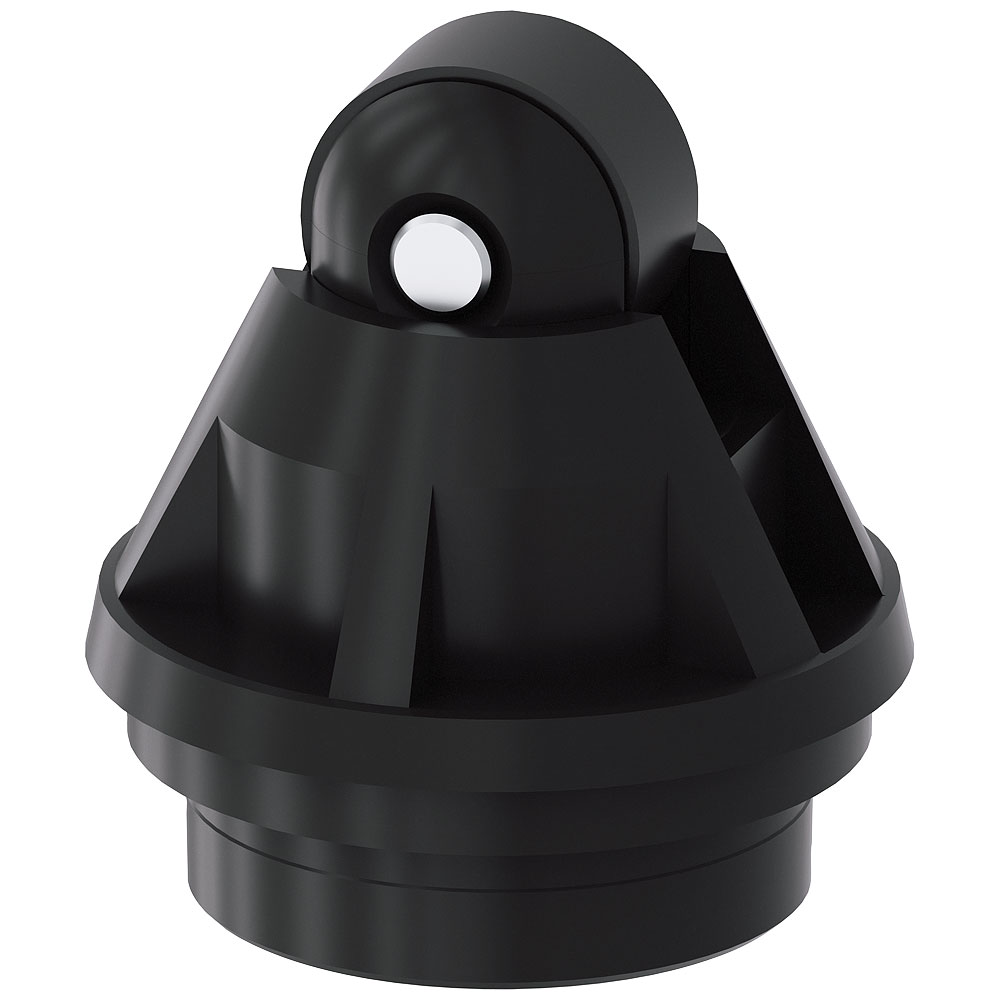

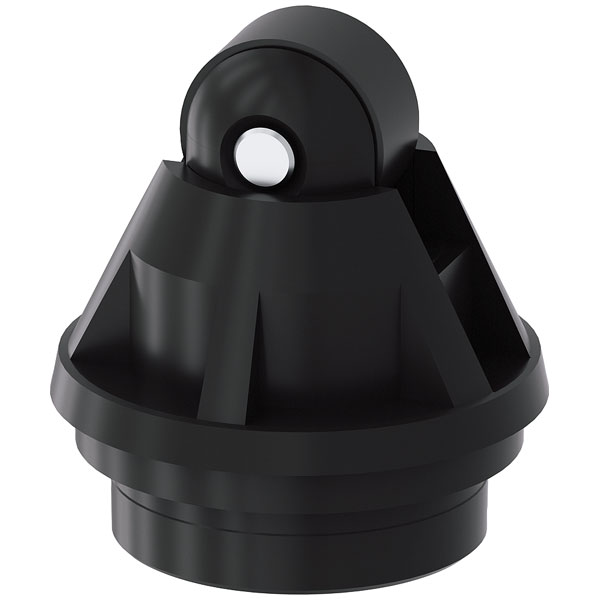

Siemens 3SE5000-0AD03 Actuator Head Roller Plunger with 10mm Plastic Roller

The Sirius 3SE5 mechanical position switches are compact and straight forward to connect. The range consists of a set of switches and actuators which can respond to many design challenges. Select the switch, add an actuator and you are ready to go.

• Actuator head plunger and roller
• Mechanism plastic roller
• Switch head enclosure material plastic
• Mechanical service life 15,000,000 cycles typical
• Minimum actuating force 20N
• Operating temperature -25 to +85 °C

Type	Mechanical position switch
Colour	Black
Maximum Temperature	+85°C
Mechanism	plastic roller
Min. temperature	-25°C
Model	N/A
