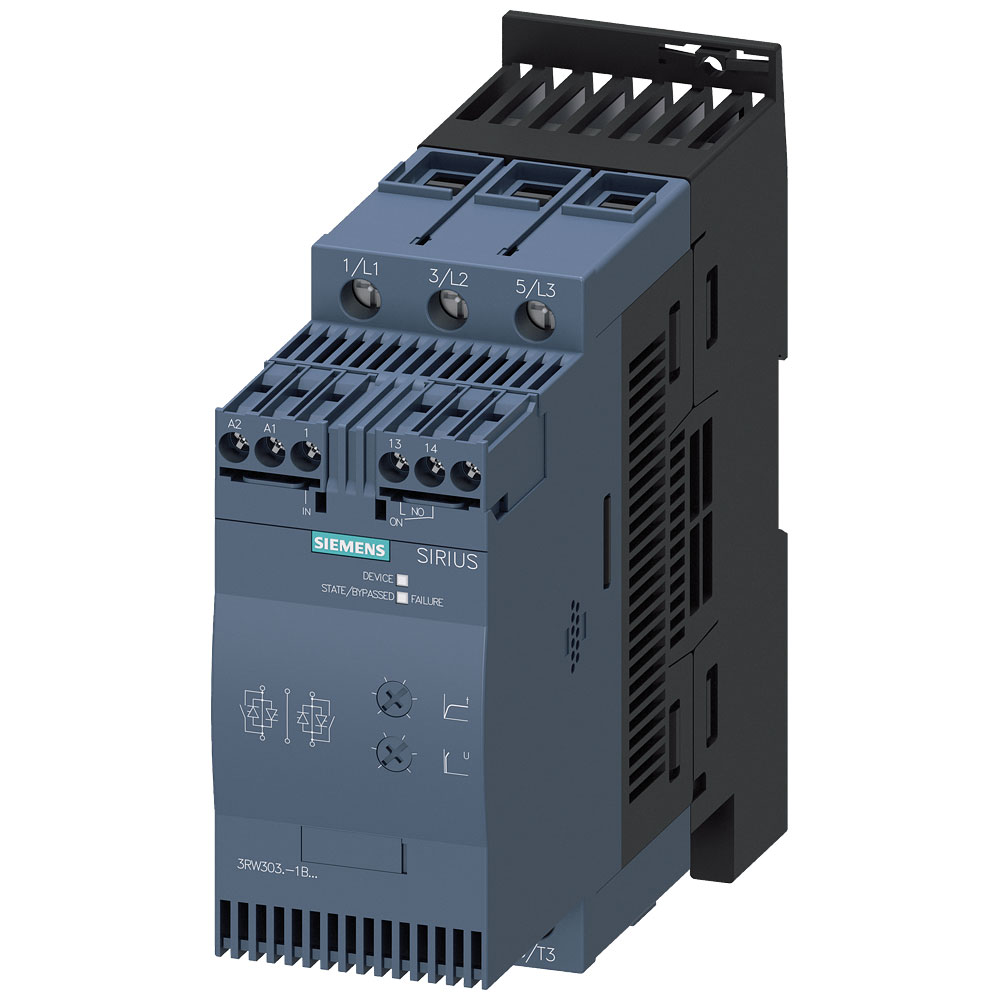

Siemens 3RW30361BB04 Soft starter 22 kW 45 A with Auxiliary Contacts

The Siemens 3RW3036-1BB04 soft starter is designed for motor control with a power rating of 22 kW at 400 V and a nominal current of 45 A. This device enhances performance by controlling starting torque and reducing mechanical stress on equipment, making it ideal for applications like pumps and fans. Its robust construction and reliable operation are suited for industrial environments.

Type	Soft starter
Degree of protection (IP)	IP00
Degree of protection (NEMA)	N/A
Depth	170mm
Dimensions	(W x H x D) 55 x 160 x 170 mm
Function	Single direction
Height	160mm
Integrated motor overload protection	FALSE
Internal bypass	true
Maximum Temperature	+60°C
Min. temperature	-25°C
Misc Attribute 1	Screw connector
Misc Attribute 2	3RW3036-1BB04
Motor power at 400 V	22kW
Nominal Current	45A
Nominal current - rounded value	45A
Rated control supply voltage AC 50 Hz	24 - 24V
Rated control supply voltage AC 60 Hz	24 - 24V
Rated control supply voltage DC	24 - 24V
Rated operating voltage Ue	200 - 480V
Rated operation current Ie at 40 °C Tu	45A
Rated power three-phase motor, inline, at 230 V	11kW
Rated power three-phase motor, inline, at 400 V	22kW
Rated power three-phase motor, inside delta, at 230 V	N/A
Rated power three-phase motor, inside delta, at 400 V	N/A
Rated surrounding temperature without derating	40°C
Release class	Other
Supply Voltage	480V
Torque control	false
Voltage type for actuating	AC/DC
Width	55mm
With display	false
