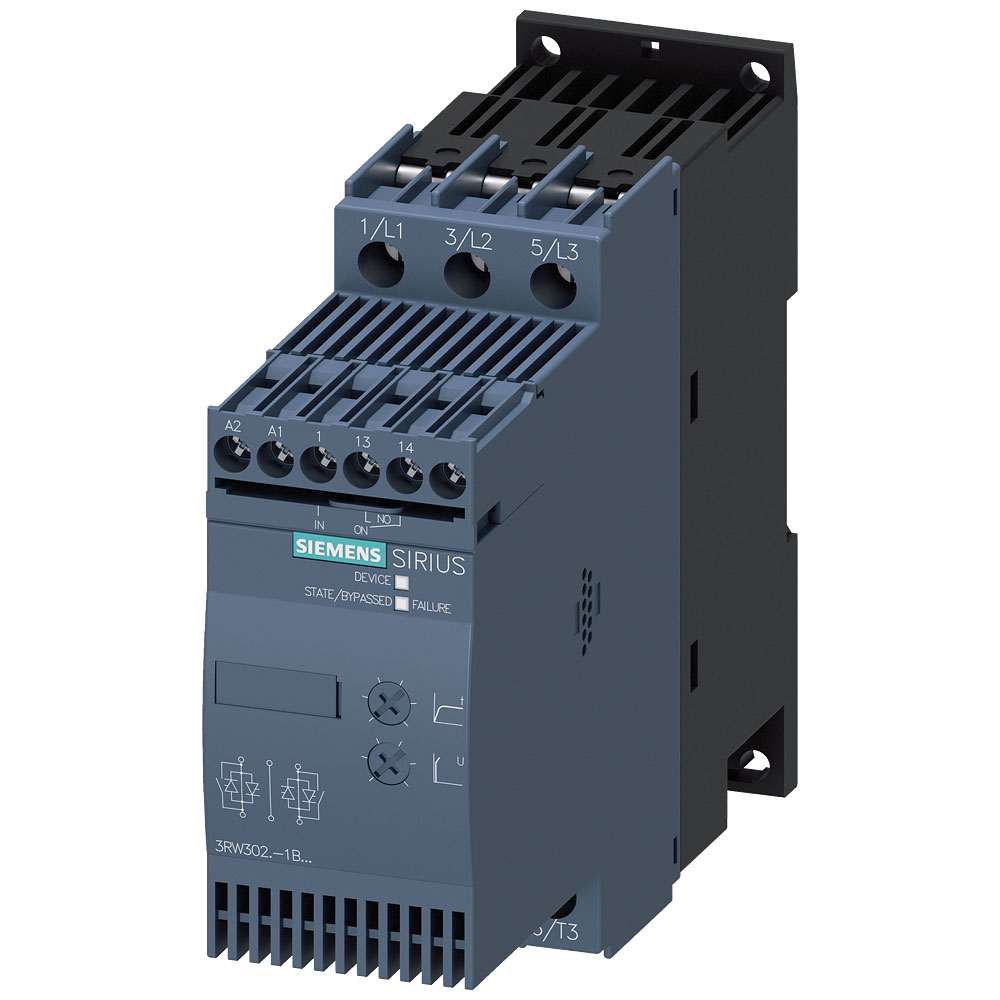

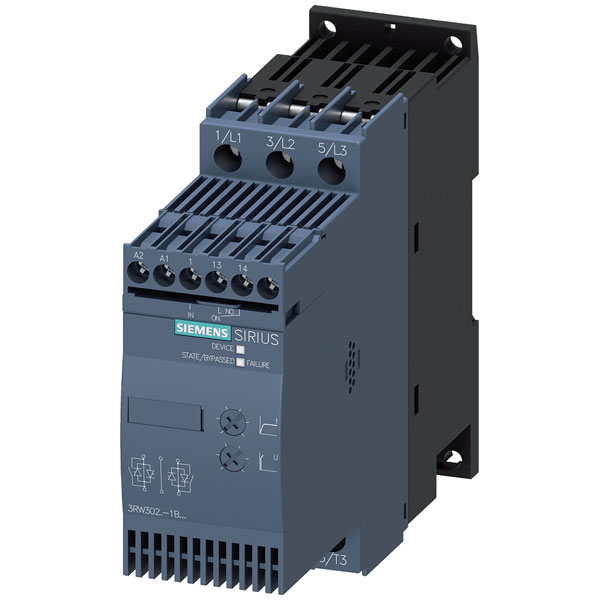

Siemens 3RW3027-1BB04 SIRIUS Soft starter 15kW 32A 480V 3-phase

Image Representative of Range

Siemens 3RW3027-1BB04 SIRIUS Soft starter 15kW 32A 480V 3-phase

Siemens
Order Code:

06-8761

Brand: Siemens MPN: 3RW30271BB04 EAN-13: 4011209719446
Qty Was Unit Price (Ex VAT)
1+ £491.15 £487.73
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack order, lead time 11 days

The Siemens 3RW3027-1BB04 soft starter supports a motor power of 15 kW at 400 V with a nominal current of 32 A. This device is designed to provide smooth motor startup and reduce electrical stress on equipment. It is typically used in industrial applications for machinery requiring controlled motor acceleration.
Type Soft starter
Degree of protection (IP) IP20
Degree of protection (NEMA) N/A
Depth 150mm
Dimensions (W x H x D) 45 x 125 x 150 mm
Function Single direction
Height 125mm
Integrated motor overload protection FALSE
Internal bypass true
Max. temperature +60°C
Min. temperature -25°C
Misc Attribute 1 Screw connector
Misc Attribute 2 3RW3027-1BB04
Motor power at 400 V 15kW
Nominal Current 32A
Nominal current - rounded value 32A
Rated control supply voltage AC 50 Hz 24 - 24V
Rated control supply voltage AC 60 Hz 24 - 24V
Rated control supply voltage DC 24 - 24V
Rated operating voltage Ue 200 - 480V
Rated operation current Ie at 40 °C Tu 32A
Rated power three-phase motor, inline, at 230 V 7.5kW
Rated power three-phase motor, inline, at 400 V 15kW
Rated power three-phase motor, inside delta, at 230 V N/A
Rated power three-phase motor, inside delta, at 400 V N/A
Rated surrounding temperature without derating 40°C
Release class Other
Supply Voltage 480V
Torque control false
Voltage type for actuating AC/DC
Width 45mm
With display false
