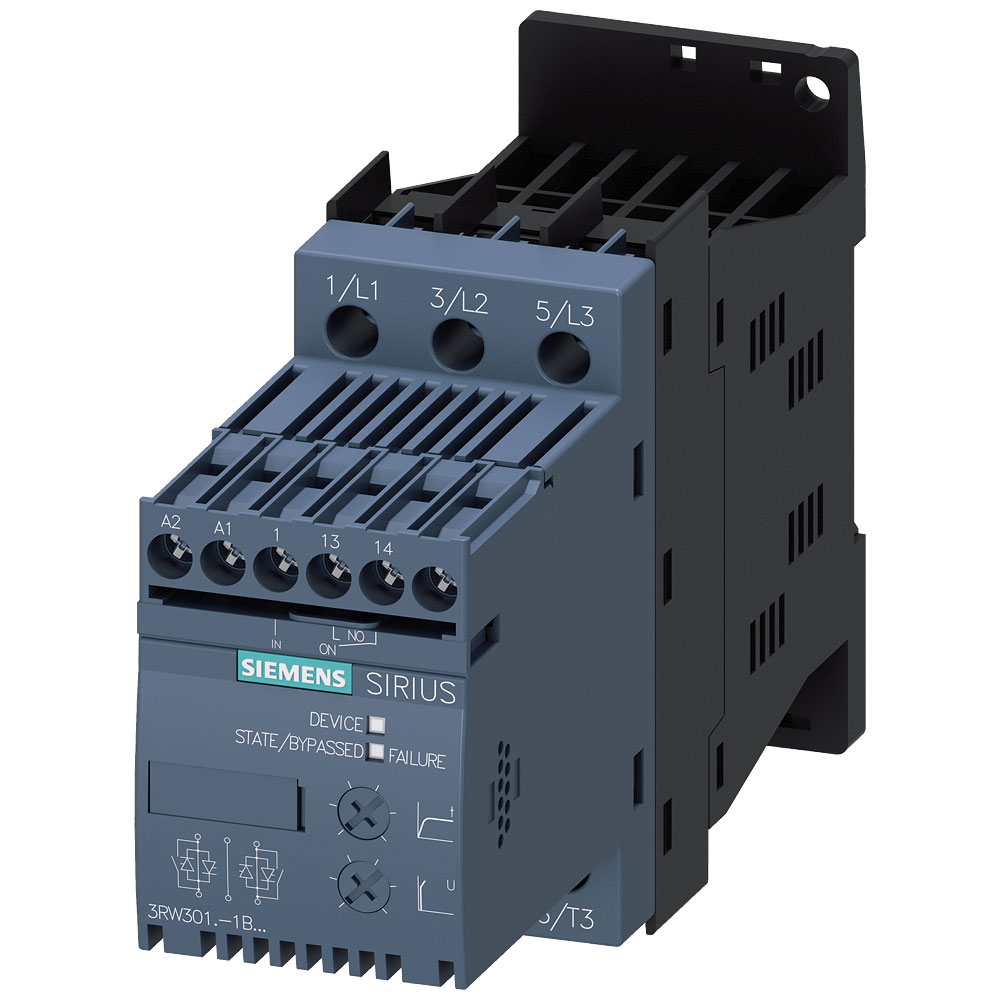

Siemens 3RW30131BB04 SIRIUS Soft starter 1.5 kW 3.6 A 400 V 480 V

Image Representative of Range

Siemens 3RW30131BB04 SIRIUS Soft starter 1.5 kW 3.6 A 400 V 480 V

Siemens
Order Code:

06-8725

Brand: Siemens MPN: 3RW30131BB04 EAN-13: 4011209722934
Qty Was Unit Price (Ex VAT)
1+ £225.70 £224.12
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack order, lead time 11 days

Siemens manufactures the 3RW3013-1BB04 soft starter, which supports motor power of 1.5 kW at 400 V. It operates with a nominal current of 3.6 A at 480 V, making it suitable for gradual motor starting to reduce mechanical stress. Typical applications include conveyor belts, pumps, and compressors, where smooth motor acceleration is essential.
Type Soft starter
Degree of protection (IP) IP20
Degree of protection (NEMA) N/A
Depth 150mm
Dimensions (W x H x D) 45 x 95 x 150 mm
Function Single direction
Height 95mm
Integrated motor overload protection FALSE
Internal bypass true
Max. temperature +60°C
Min. temperature -25°C
Misc Attribute 1 Screw connector
Misc Attribute 2 3RW3013-1BB04
Motor power at 400 V 1.5kW
Nominal Current 3.6A
Nominal current - rounded value 3.6A
Rated control supply voltage AC 50 Hz 24 - 24V
Rated control supply voltage AC 60 Hz 24 - 24V
Rated control supply voltage DC 24 - 24V
Rated operating voltage Ue 200 - 480V
Rated operation current Ie at 40 °C Tu 3.6A
Rated power three-phase motor, inline, at 230 V 0.75kW
Rated power three-phase motor, inline, at 400 V 1.5kW
Rated power three-phase motor, inside delta, at 230 V N/A
Rated power three-phase motor, inside delta, at 400 V N/A
Rated surrounding temperature without derating 40°C
Release class Other
Supply Voltage 480V
Torque control false
Voltage type for actuating AC/DC
Width 45mm
With display false
