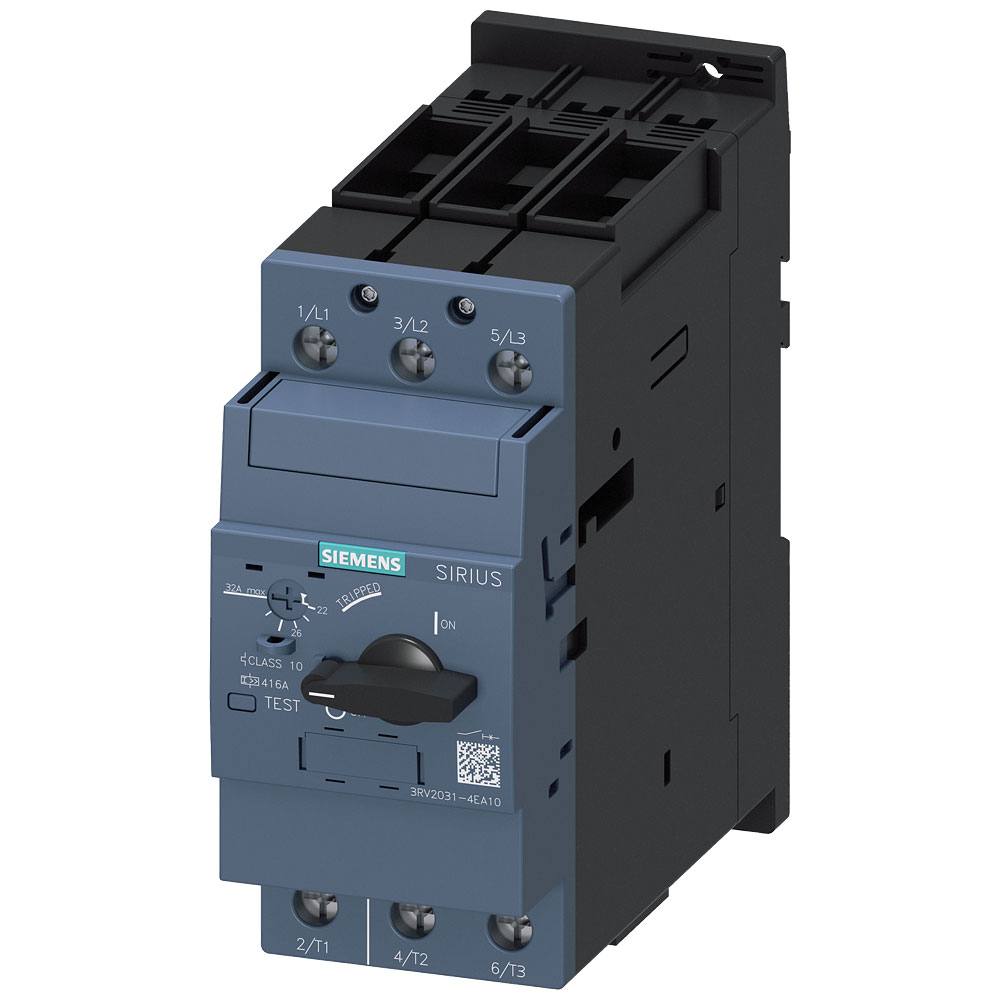

The Siemens 3RV2031-4EA10 circuit breaker, manufactured by Siemens, features an amperage adjustment range of 22 - 32 A and a maximum switching voltage of 690 V AC. Measuring 55 x 140 x 149 mm, this compact component is mainly used for safeguarding electrical circuits in industrial applications. Typical applications include use in motors, transformers, and other electrical devices requiring reliable circuit protection.
| Type |
Circuit breaker |
| Adjustment range (amperage) |
22 - 32 A |
| Amperage adjustment range (max.) |
32A |
| Amperage adjustment range (min.) |
22A |
| Connection |
Screws |
| Degree of protection (IP) |
IP20 |
| Depth |
149mm |
| Device construction |
Built-in device fixed built-in technique |
| Dim |
(W x H x D) 55 x 140 x 149 mm |
| Height |
140mm |
| IP Rating |
IP20 |
| Max. temperature |
+60°C |
| Min. temperature |
-20°C |
| Misc Attribute 1 |
3RV2031-4EA10 |
| Misc Attribute 2 |
S2 |
| Number of Pins |
3-pin |
| Number of Poles |
3 |
| Phase failure sensitive |
TRUE |
| Rated operation power at AC-3, 230 V |
7.5kW |
| Rated operation power at AC-3, 400 V |
15kW |
| Rated permanent current Iu |
32A |
| Rated short-circuit breaking capacity Icu at 400 V, AC |
65kA |
| Switch off technique |
Magnetic |
| Switching voltage (max.) |
690V AC |
| Type of control element |
Turn button |
| Type of electrical connection of main circuit |
Screw connection |
| Width |
55mm |
| With integrated auxiliary switch |
FALSE |
| With integrated under voltage release |
FALSE |
| With thermal overload protection |
TRUE |
