Siemens 3RV20214DA15 Circuit Breaker 18-25A 690V AC 4-pole Screw Terminal

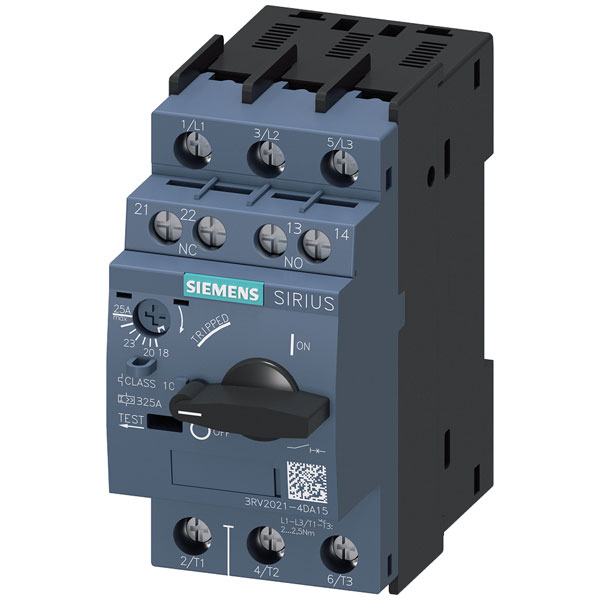

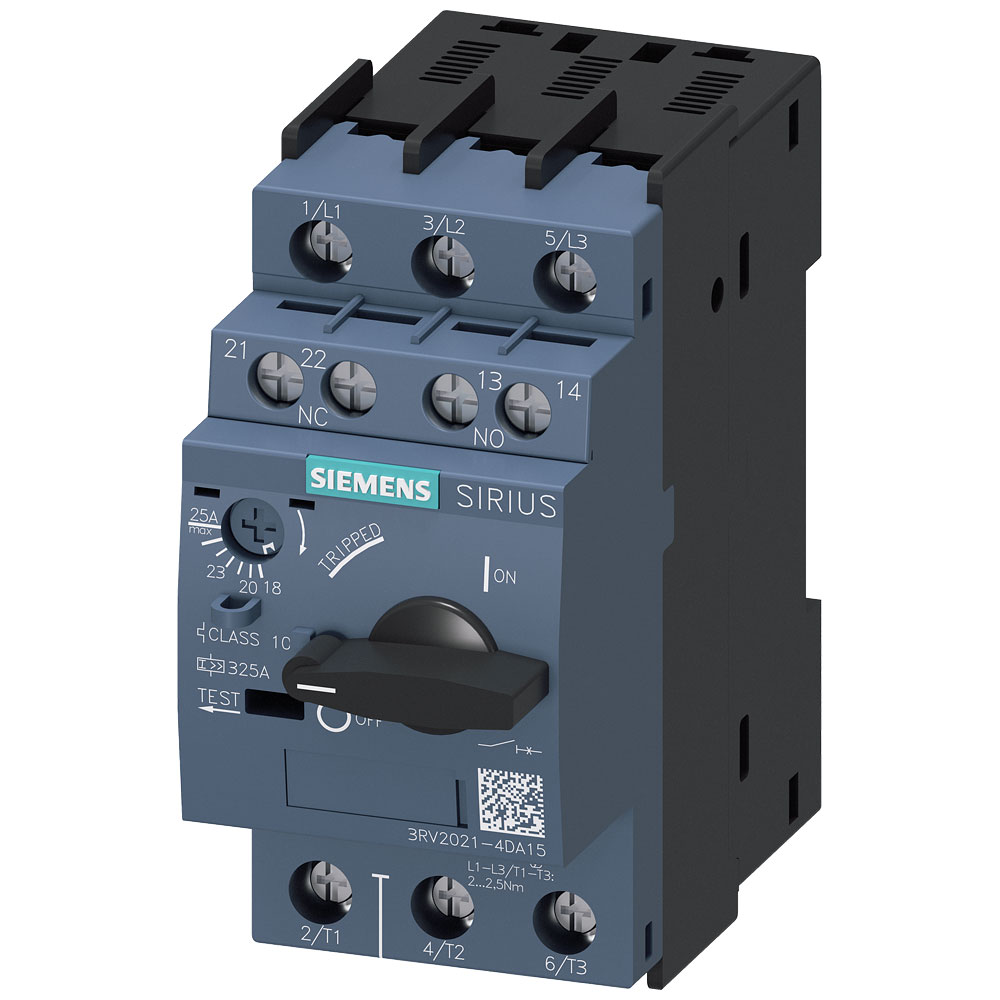

Image Representative of Range

Siemens 3RV20214DA15 Circuit Breaker 18-25A 690V AC 4-pole Screw Terminal

Siemens
Order Code:

06-8701

Brand: Siemens MPN: 3RV20214DA15 EAN-13: 4011209841307
Qty Unit Price (Ex VAT)
1+ £98.00
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
1 in stock, despatched in 4 working days

The Siemens 3RV2021-4DA15 is a circuit breaker with an adjustment range of 18 to 25 A and a maximum switching voltage of 690 V AC. Measuring 45 x 97 x 97 mm, it is designed for industrial applications where reliable circuit protection is essential. This circuit breaker is ideal for safeguarding electrical circuits and components in manufacturing and automation settings.
Type Circuit breaker
Adjustment range (amperage) 18 - 25 A
Amperage adjustment range (max.) 25A
Amperage adjustment range (min.) 18A
Circuit breaker type Motor protective circuit breaker
Connection Screws
Country of origin Germany
Degree of protection (IP) IP20
Depth 97mm
Device construction Built-in device fixed built-in technique
Dim (W x H x D) 45 x 97 x 97 mm
Height 97mm
Input Current 18 - 25 A
IP Rating IP20
Max. temperature +60°C
Min. temperature -20°C
Misc Attribute 1 3RV2021-4DA15
Misc Attribute 2 S0
Number of Pins 3-pin
Number of Poles 3
Package depth 102mm
Package height 102mm
Package width 49mm
Phase failure sensitive TRUE
Quantity per pack 1 pc(s)
Rated operation power at AC-3, 230 V 5.5kW
Rated operation power at AC-3, 400 V 11kW
Rated permanent current Iu 25A
Rated short-circuit breaking capacity Icu at 400 V, AC 55kA
Switch off technique Magnetic
Switching voltage (max.) 690V AC
Type of control element Turn button
Type of electrical connection of main circuit Screw connection
Weight 383 g
Width 45mm
With integrated auxiliary switch TRUE
With integrated under voltage release FALSE
With thermal overload protection TRUE
