Siemens 3RV2021-4BA20 Circuit Breaker 13-20A 690V AC size S0 motor protection

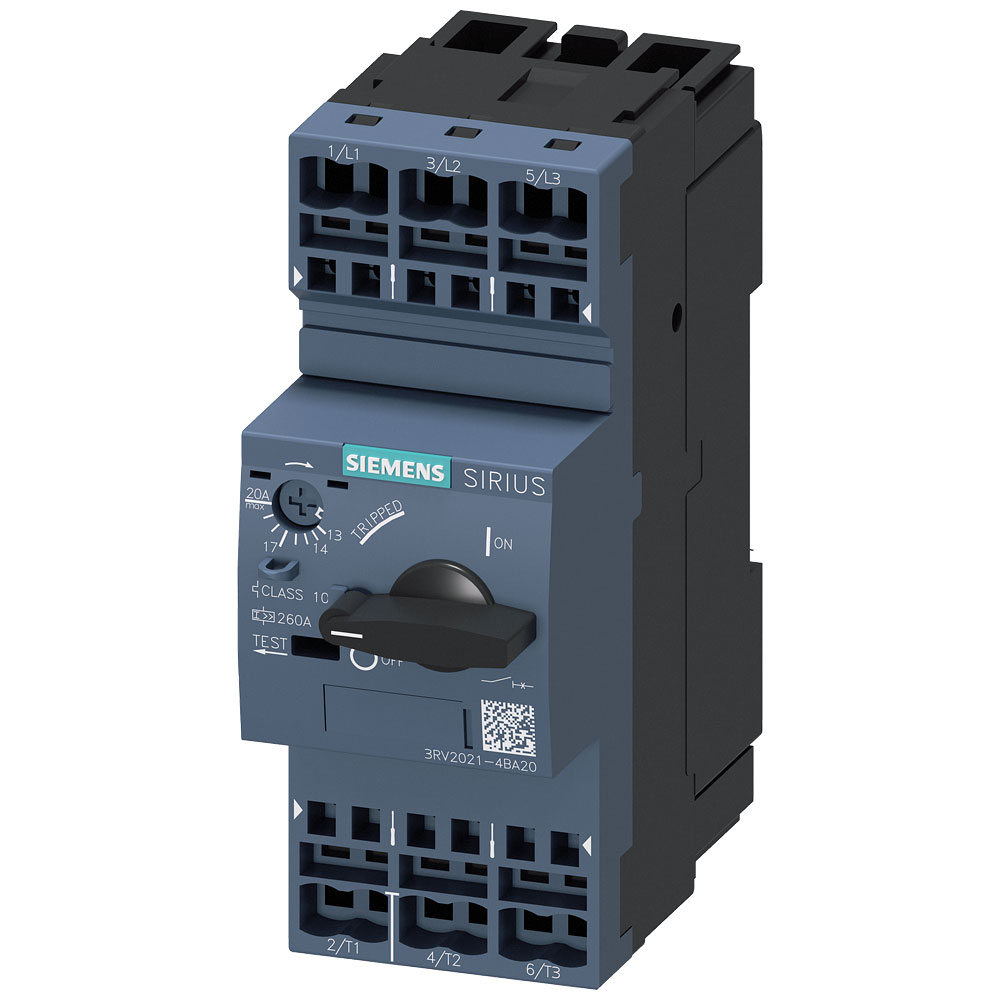

Image Representative of Range

Siemens 3RV2021-4BA20 Circuit Breaker 13-20A 690V AC size S0 motor protection

Siemens
Order Code:

06-8697

Brand: Siemens MPN: 3RV20214BA20 EAN-13: 4011209724440
Qty Unit Price (Ex VAT)
1+ £81.51
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
3 in stock, despatched in 4 working days

The Siemens 3RV2021-4BA20 circuit breaker is an electrical contactor with an adjustment range of 13 to 20 amperes and a maximum switching voltage of 690 volts AC. It is designed with compact dimensions of 45 x 119 x 97 mm, making it suitable for space-constrained installations. This circuit breaker is typically used for protecting electrical circuits and equipment in industrial and commercial settings.
Type Circuit breaker
Adjustment range (amperage) 13 - 20 A
Amperage adjustment range (max.) 20A
Amperage adjustment range (min.) 13A
Connection Spring-loaded connector
Degree of protection (IP) IP20
Depth 97mm
Device construction Built-in device fixed built-in technique
Dim (W x H x D) 45 x 119 x 97 mm
Height 119mm
IP Rating IP20
Max. temperature +60°C
Min. temperature -20°C
Misc Attribute 1 3RV2021-4BA20
Misc Attribute 2 S0
Number of Pins 3-pin
Number of Poles 3
Phase failure sensitive TRUE
Rated operation power at AC-3, 230 V 5.5kW
Rated operation power at AC-3, 400 V 7.5kW
Rated permanent current Iu 20A
Rated short-circuit breaking capacity Icu at 400 V, AC 55kA
Switch off technique Magnetic
Switching voltage (max.) 690V AC
Type of control element Turn button
Type of electrical connection of main circuit Spring clamp connection
Width 45mm
With integrated auxiliary switch FALSE
With integrated under voltage release FALSE
With thermal overload protection TRUE
