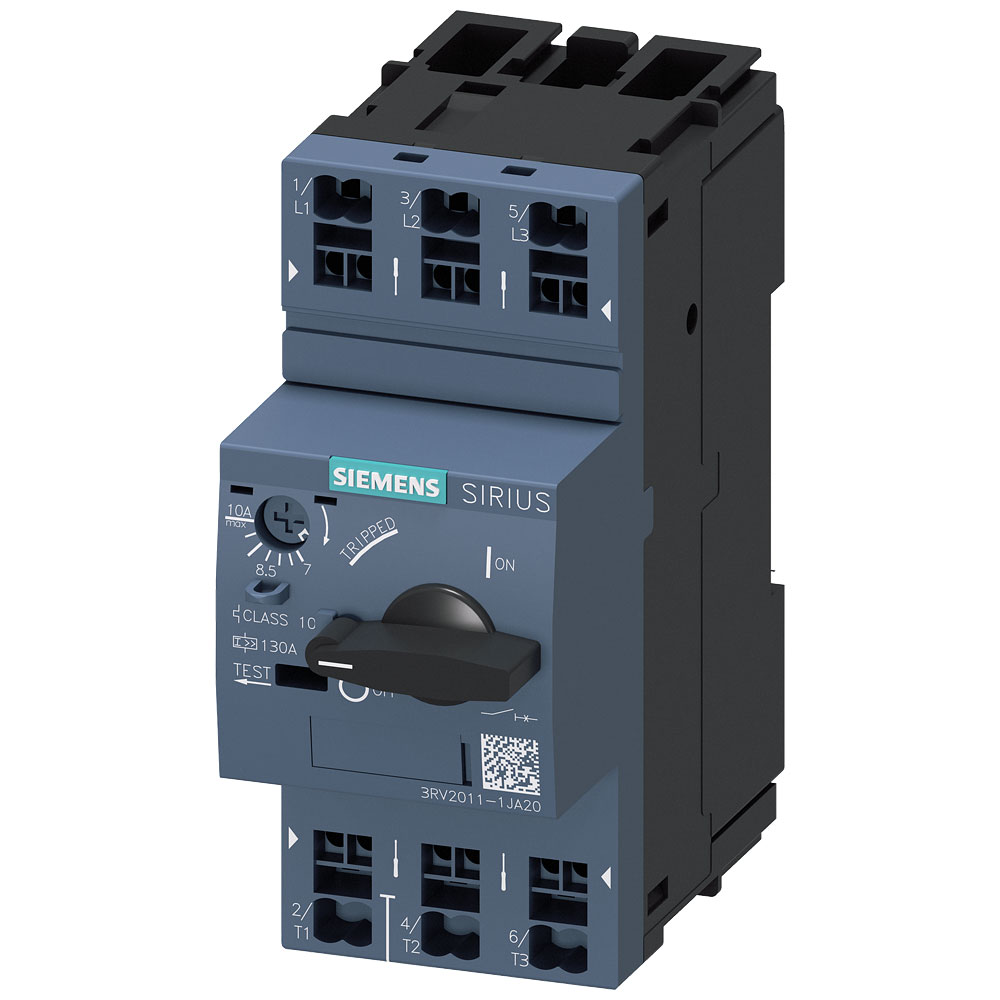

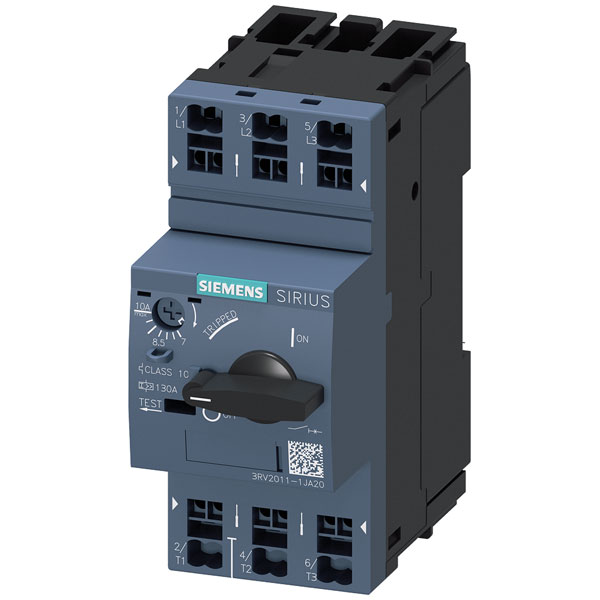

Siemens 3RV20111JA20 Circuit Breaker 7-10A 690V AC spring terminal 4 NO

The Siemens 3RV2011-1JA20 circuit breaker has an adjustment range of 7 to 10 amperes and a maximum switching voltage of 690 volts AC, making it suitable for industrial electrical circuits. Its compact dimensions of 45 x 106 x 97 mm allow for easy integration into existing electrical systems. Typically used in motor protection and electrical overload prevention, this reliable component is essential for enhancing system safety and performance.

Type	Motor Ptotection Circuit-Breaker
Number of Poles	3
Rated operation power at AC-3, 230 V	2.2kW
Rated operation power at AC-3, 400 V	4kW
Adjustment range (amperage)	7 - 10 A
Adjustment range undelayed short-circuit release	N/A
Amperage adjustment range (max.)	10A
Amperage adjustment range (min.)	7A
Connection	Spring-loaded connector
Degree of protection (IP)	IP20
Depth	97mm
Device construction	Built-in device fixed built-in technique
Dim	(W x H x D) 45 x 106 x 97 mm
Height	106mm
IP Rating	IP20
Max. temperature	+60°C
Min. temperature	-20°C
Misc Attribute 1	3RV2011-1JA20
Misc Attribute 2	S00
Number of Pins	3-pin
Overload release current setting	7 - 10A
Phase failure sensitive	TRUE
Power loss	N/A
Rated operating voltage	690 - 690V
Rated permanent current Iu	10A
Rated short-circuit breaking capacity Icu at 400 V, AC	100kA
Switch off technique	Magnetic
Switching voltage (max.)	690V AC
Type of control element	Turn button
Type of electrical connection of main circuit	Spring clamp connection
Width	45mm
With integrated auxiliary switch	FALSE
With integrated under voltage release	FALSE
With thermal overload protection	TRUE
