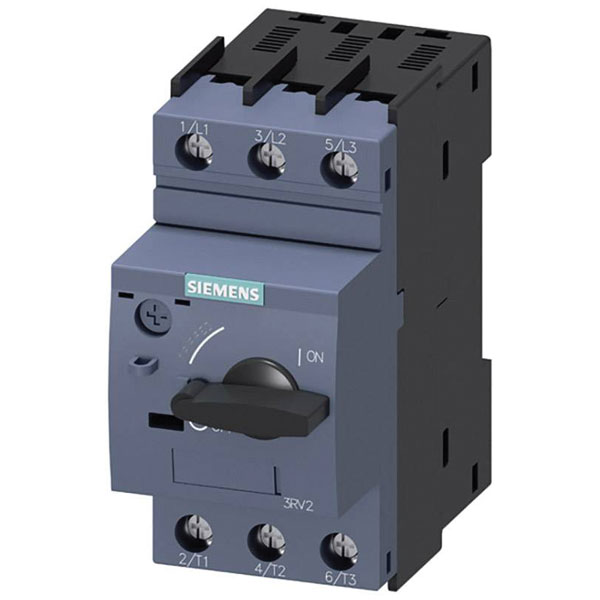

The Siemens 3RV2011-1FA10 circuit breaker is designed with an adjustment range of 3.5 to 5 amperes and can handle a maximum switching voltage of 690 volts AC. Compact in size with dimensions of 45 x 97 x 97 mm, it is suitable for use in industrial and commercial electrical applications. This circuit breaker is typically used for protection of electrical circuits and equipment.
| Type |
Circuit breaker |
| Adjustment range (amperage) |
3.5 - 5 A |
| Amperage adjustment range (max.) |
5A |
| Amperage adjustment range (min.) |
3.5A |
| Connection |
Screws |
| Degree of protection (IP) |
IP20 |
| Depth |
97mm |
| Device construction |
Built-in device fixed built-in technique |
| Dim |
(W x H x D) 45 x 97 x 97 mm |
| Height |
97mm |
| IP rating |
IP20 |
| Max. temperature |
+60°C |
| Min. temperature |
-20°C |
| Misc Attribute 1 |
3RV2011-1FA10 |
| Misc Attribute 2 |
S00 |
| No. of pins |
3-pin |
| Number of Poles |
3 |
| Phase failure sensitive |
TRUE |
| Rated operation power at AC-3, 230 V |
1.1kW |
| Rated operation power at AC-3, 400 V |
1.5kW |
| Rated permanent current Iu |
5A |
| Rated short-circuit breaking capacity Icu at 400 V, AC |
100kA |
| RoHS-compliant |
Yes |
| Switch off technique |
Magnetic |
| Switching voltage (max.) |
690V AC |
| Type of control element |
Turn button |
| Type of electrical connection of main circuit |
Screw connection |
| Width |
45mm |
| With integrated auxiliary switch |
FALSE |
| With integrated under voltage release |
FALSE |
| With thermal overload protection |
TRUE |
