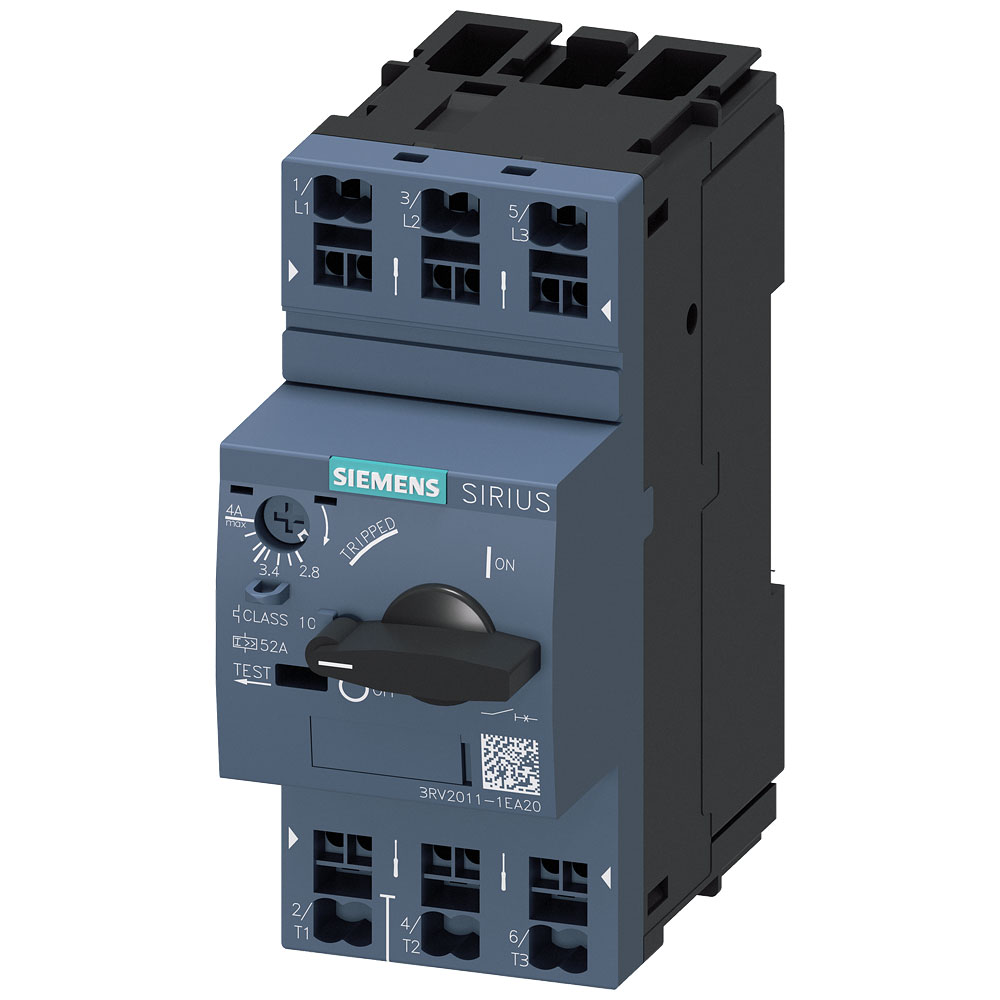

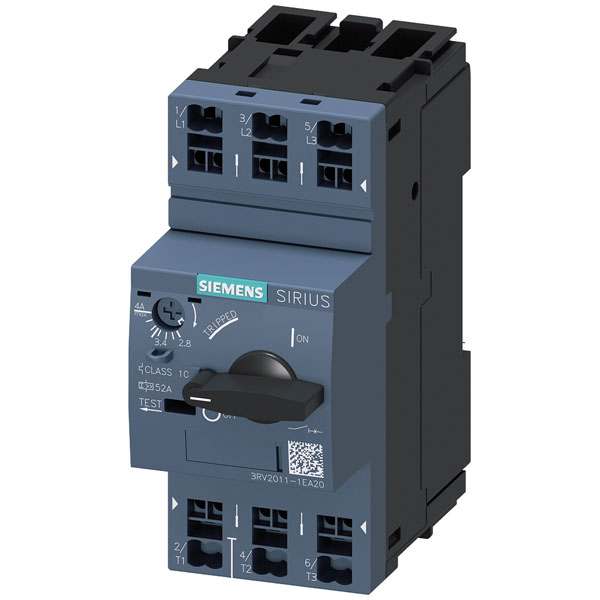

Siemens 3RV20111EA20 Circuit Breaker 2.8-4A 690VAC 45x106x97mm

Image Representative of Range

Siemens 3RV20111EA20 Circuit Breaker 2.8-4A 690VAC 45x106x97mm

Siemens
Order Code:

06-8651

Brand: Siemens MPN: 3RV20111EA20 EAN-13: 4011209724280
Qty Unit Price (Ex VAT)
1+ £69.28
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
6 in stock, despatched in 4 working days

The Siemens 3RV2011-1EA20 circuit breaker is designed for a current adjustment range of 2.8 to 4 amps and can handle a maximum switching voltage of 690 volts AC. Measuring 45 x 106 x 97 mm, it is suitable for motor protection in industrial electrical systems. This product is commonly used in electrical contactors and auxiliary contactor applications.
Type Circuit breaker
Adjustment range (amperage) 2.8 - 4 A
Amperage adjustment range (max.) 4A
Amperage adjustment range (min.) 2.8A
Connection Spring-loaded connector
Degree of protection (IP) IP20
Depth 97mm
Device construction Built-in device fixed built-in technique
Dim (W x H x D) 45 x 106 x 97 mm
Height 106mm
IP Rating IP20
Max. temperature +60°C
Min. temperature -20°C
Misc Attribute 1 3RV2011-1EA20
Misc Attribute 2 S00
Number of Pins 3-pin
Number of Poles 3
Phase failure sensitive TRUE
Rated operation power at AC-3, 230 V 0.8kW
Rated operation power at AC-3, 400 V 1.5kW
Rated permanent current Iu 4A
Rated short-circuit breaking capacity Icu at 400 V, AC 100kA
Switch off technique Magnetic
Switching voltage (max.) 690V AC
Type of control element Turn button
Type of electrical connection of main circuit Spring clamp connection
Width 45mm
With integrated auxiliary switch FALSE
With integrated under voltage release FALSE
With thermal overload protection TRUE
