Siemens 3RV20111EA15 Circuit Breaker 2.8-4A 690V 3-pole Size S3

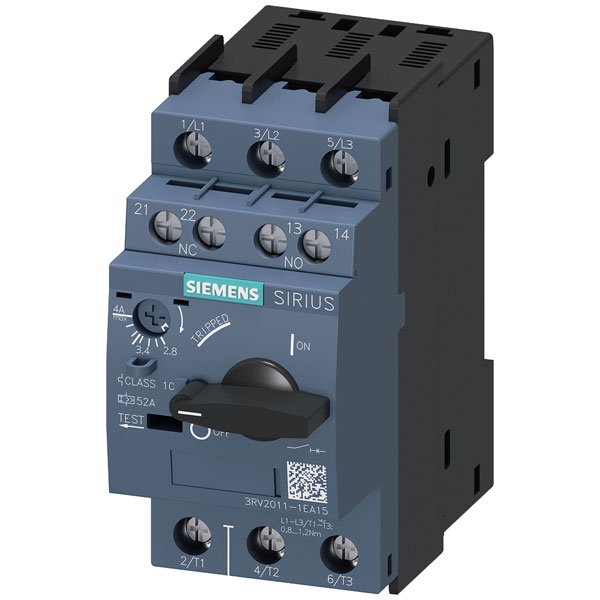

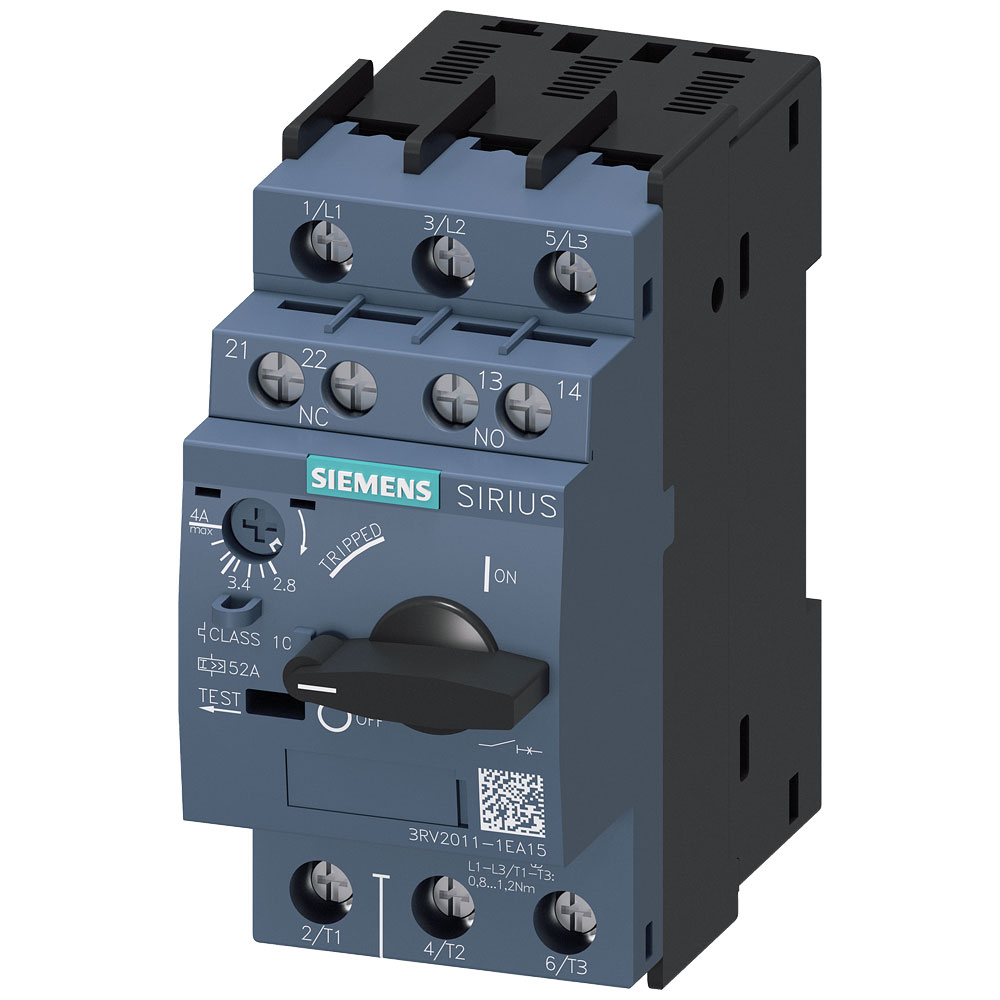

Image Representative of Range

Siemens 3RV20111EA15 Circuit Breaker 2.8-4A 690V 3-pole Size S3

Siemens
Order Code:

06-8649

Brand: Siemens MPN: 3RV20111EA15 EAN-13: 4011209840973
Qty Unit Price (Ex VAT)
1+ £85.15
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
7 in stock, despatched in 4 working days

The Siemens 3RV2011-1EA15 circuit breaker has an adjustment range of 2.8 to 4 amps and can handle a switching voltage of up to 690 volts AC. Measuring 45 x 97 x 97 mm, it is designed to protect electrical circuits from overload and short circuits. Typical applications include safeguarding motors and other electrical equipment in industrial environments.
Type Circuit breaker
Adjustment range (amperage) 2.8 - 4 A
Amperage adjustment range (max.) 4A
Amperage adjustment range (min.) 2.8A
Connection Screws
Degree of protection (IP) IP20
Depth 97mm
Device construction Built-in device fixed built-in technique
Dim (W x H x D) 45 x 97 x 97 mm
Height 97mm
IP Rating IP20
Max. temperature +60°C
Min. temperature -20°C
Misc Attribute 1 3RV2011-1EA15
Misc Attribute 2 S00
Number of Pins 3-pin
Number of Poles 3
Phase failure sensitive TRUE
Rated operation power at AC-3, 230 V 0.8kW
Rated operation power at AC-3, 400 V 1.5kW
Rated permanent current Iu 4A
Rated short-circuit breaking capacity Icu at 400 V, AC 100kA
Switch off technique Magnetic
Switching voltage (max.) 690V AC
Type of control element Turn button
Type of electrical connection of main circuit Screw connection
Width 45mm
With integrated auxiliary switch TRUE
With integrated under voltage release FALSE
With thermal overload protection TRUE
