Siemens 3RV20111CA15 Circuit Breaker 1.8-2.5A 690V 45x97x97mm

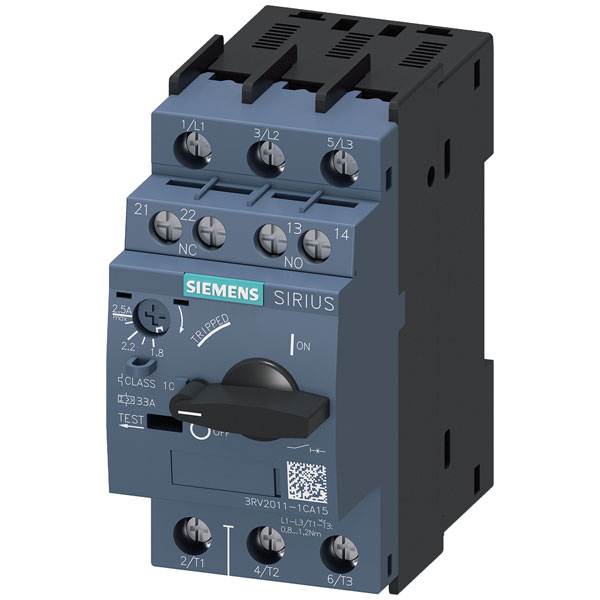

Image Representative of Range

Siemens 3RV20111CA15 Circuit Breaker 1.8-2.5A 690V 45x97x97mm

Siemens
Order Code:

06-8637

Brand: Siemens MPN: 3RV20111CA15 EAN-13: 4011209841147
Qty Unit Price (Ex VAT)
1+ £85.15
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
4 in stock, despatched in 4 working days

The Siemens 3RV2011-1CA15 circuit breaker features an adjustment range of 1.8 - 2.5 A and a maximum switching voltage of 690 V AC. With dimensions of 45 x 97 x 97 mm, this component is compact yet robust. Typically used in industrial settings, it provides reliable protection for electrical circuits within its specified current range.
Type Circuit breaker
Adjustment range (amperage) 1.8 - 2.5 A
Amperage adjustment range (max.) 2.5A
Amperage adjustment range (min.) 1.8A
Connection Screws
Degree of protection (IP) IP20
Depth 97mm
Device construction Built-in device fixed built-in technique
Dim (W x H x D) 45 x 97 x 97 mm
Height 97mm
IP Rating IP20
Max. temperature +60°C
Min. temperature -20°C
Misc Attribute 1 3RV2011-1CA15
Misc Attribute 2 S00
Number of Pins 3-pin
Number of Poles 3
Phase failure sensitive TRUE
Rated operation power at AC-3, 230 V 0.4kW
Rated operation power at AC-3, 400 V 0.75kW
Rated permanent current Iu 2.5A
Rated short-circuit breaking capacity Icu at 400 V, AC 100kA
Switch off technique Magnetic
Switching voltage (max.) 690V AC
Type of control element Turn button
Type of electrical connection of main circuit Screw connection
Width 45mm
With integrated auxiliary switch TRUE
With integrated under voltage release FALSE
With thermal overload protection TRUE
