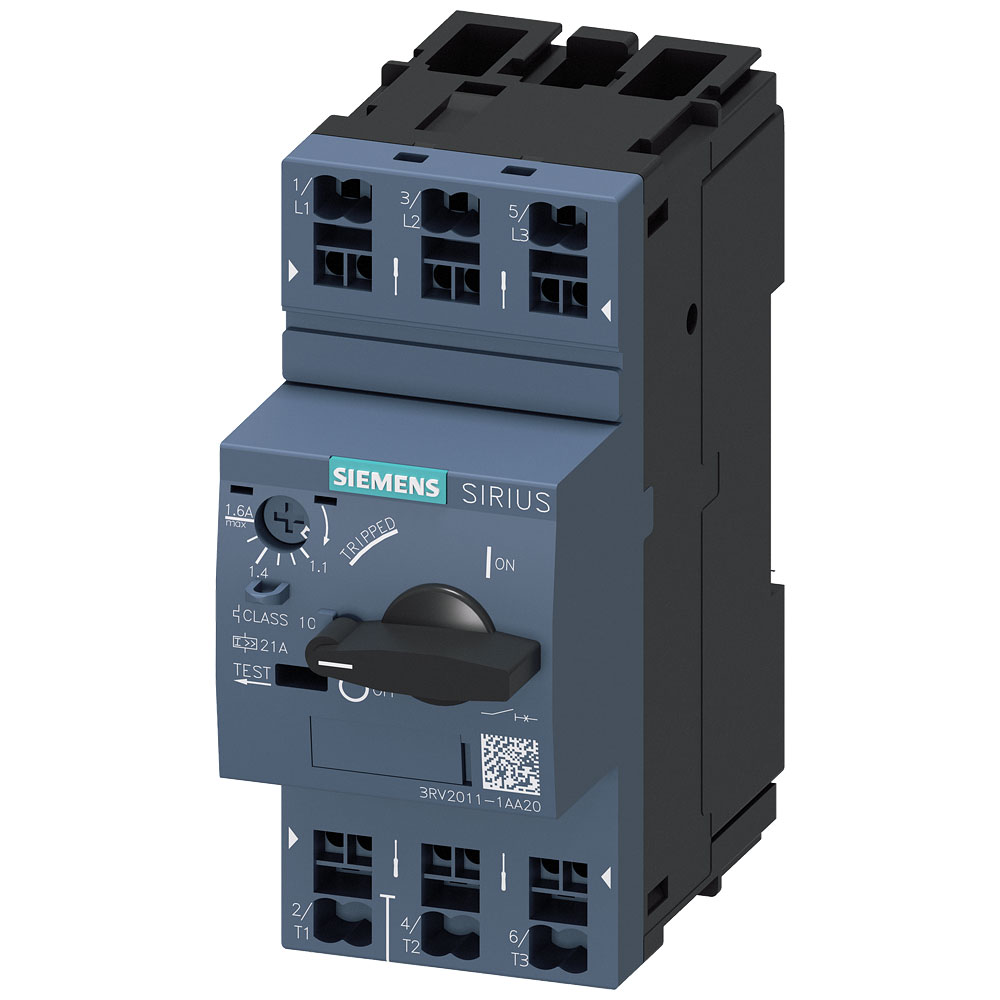

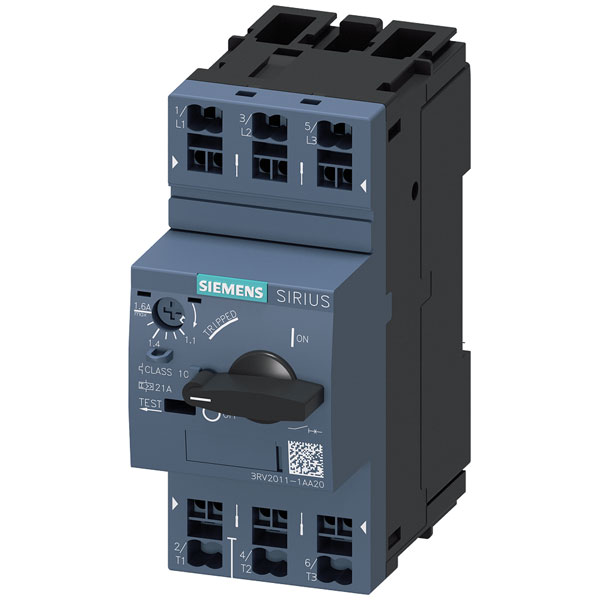

The Siemens 3RV2011-1AA20 circuit breaker is a reliable electrical contactor with an adjustable amperage range of 1.1 to 1.6 A and a maximum switching voltage of 690 V AC, measuring 45 x 106 x 97 mm. Designed for precise electrical protection, it ensures safety in electrical installations and is typically used in industrial and commercial applications. This circuit breaker is ideal for protecting motors and circuits from overloads and short circuits.
| Type |
Circuit breaker |
| Adjustment range (amperage) |
1.1 - 1.6 A |
| Amperage adjustment range (max.) |
1.6A |
| Amperage adjustment range (min.) |
1.1A |
| Connection |
Spring-loaded connector |
| Degree of protection (IP) |
IP20 |
| Depth |
97mm |
| Device construction |
Built-in device fixed built-in technique |
| Dim |
(W x H x D) 45 x 106 x 97 mm |
| Height |
106mm |
| IP Rating |
IP20 |
| Max. temperature |
+60°C |
| Min. temperature |
-20°C |
| Misc Attribute 1 |
3RV2011-1AA20 |
| Misc Attribute 2 |
S00 |
| Number of Pins |
3-pin |
| Number of Poles |
3 |
| Phase failure sensitive |
TRUE |
| Rated operation power at AC-3, 230 V |
0.3kW |
| Rated operation power at AC-3, 400 V |
0.55kW |
| Rated permanent current Iu |
1.6A |
| Rated short-circuit breaking capacity Icu at 400 V, AC |
100kA |
| Switch off technique |
Magnetic |
| Switching voltage (max.) |
690V AC |
| Type of control element |
Turn button |
| Type of electrical connection of main circuit |
Spring clamp connection |
| Width |
45mm |
| With integrated auxiliary switch |
FALSE |
| With integrated under voltage release |
FALSE |
| With thermal overload protection |
TRUE |
